- RS Stock No.:
- 261-5599P
- Mfr. Part No.:
- LIS2DUXS12TR
- Brand:
- STMicroelectronics
244 In stock for same day dispatch
Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
Kr. 20,61
(exc. VAT)
Kr. 25,76
(inc. VAT)
Units | Per unit |
10 - 98 | Kr. 20,61 |
100 - 248 | Kr. 18,61 |
250 - 498 | Kr. 16,72 |
500 + | Kr. 16,11 |
- RS Stock No.:
- 261-5599P
- Mfr. Part No.:
- LIS2DUXS12TR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details

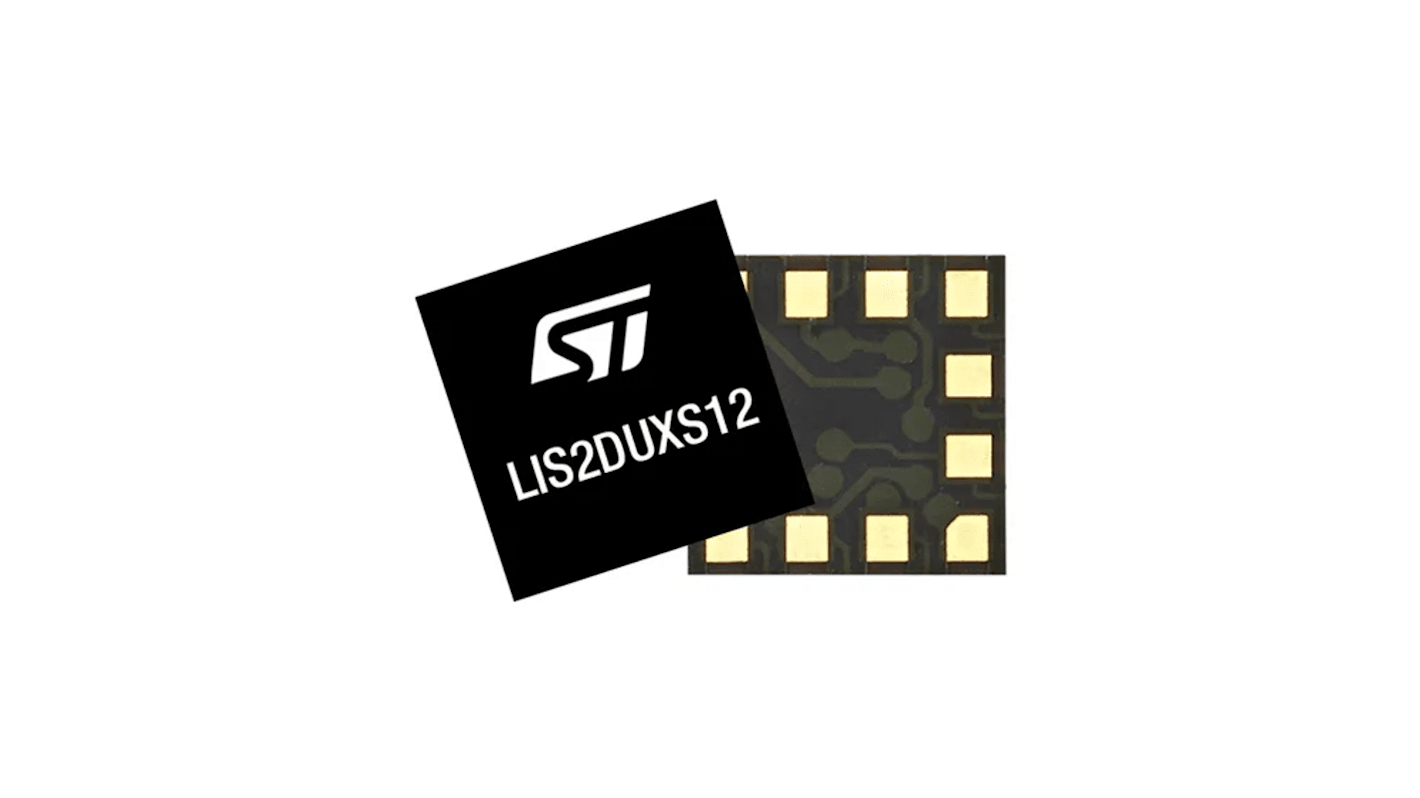

Ultra-low-power 3-axis digital smart accelerometer with AAF and Qvar
The STMicroelectronics smart, digital, 3-axis linear accelerometer whose MEMS and ASIC have been expressly designed to combine the lowest current consumption possible with features such as always-on anti-aliasing filtering, a finite state machine (FSM) and machine learning core (MLC) with adaptive self-configuration (ASC), and an analog hub / Qvar sensing channel. The FSM and MLC with ASC deliver outstanding always-on, edge processing capabilities, while the analog hub / Qvar sensing channel defines a new degree of system optimization. It has a dedicated internal engine to process motion and acceleration detection including free-fall, wake-up, single/double/triple-tap recognition, activity/inactivity, and 6D/4D orientation.
Four operating power modes
Ultralow power consumption
ODR from 1.6 Hz to 800 Hz
Embedded machine learning core
Programmable finite state machine
Integrated analog hub / Qvar sensing channel
Embedded temperature sensor
High-speed I²C/SPI/MIPI I³C digital output interface
Advanced pedometer, step detector and step counter
Significant motion detection, tilt detection
Self-test
Anti alias filter in low power mode
Machine Learning Core (2.0) and FSM
Qvar 2.0
Advanced interfaces: I²C, SPI & I³C 1.1
Ultra-thin package
Low power [LP]: 6.2 μA @ 50 Hz ODR with AAF on
Low noise [LP]: 220 μg/√Hz
Embedded digital functions: tap / double tap recognition, free fall detection, 6D/4D orientation
Programmable interrupts
Ultralow power consumption
ODR from 1.6 Hz to 800 Hz
Embedded machine learning core
Programmable finite state machine
Integrated analog hub / Qvar sensing channel
Embedded temperature sensor
High-speed I²C/SPI/MIPI I³C digital output interface
Advanced pedometer, step detector and step counter
Significant motion detection, tilt detection
Self-test
Anti alias filter in low power mode
Machine Learning Core (2.0) and FSM
Qvar 2.0
Advanced interfaces: I²C, SPI & I³C 1.1
Ultra-thin package
Low power [LP]: 6.2 μA @ 50 Hz ODR with AAF on
Low noise [LP]: 220 μg/√Hz
Embedded digital functions: tap / double tap recognition, free fall detection, 6D/4D orientation
Programmable interrupts
Specifications
Attribute | Value |
---|---|
Sensor Type | Accelerometer |
Number of Axis | 3 |
Technology | Accelerometer |
Mounting Type | Surface Mount |
Magnetic Type | Latch |
Package Type | LGA |
Pin Count | 12 |
