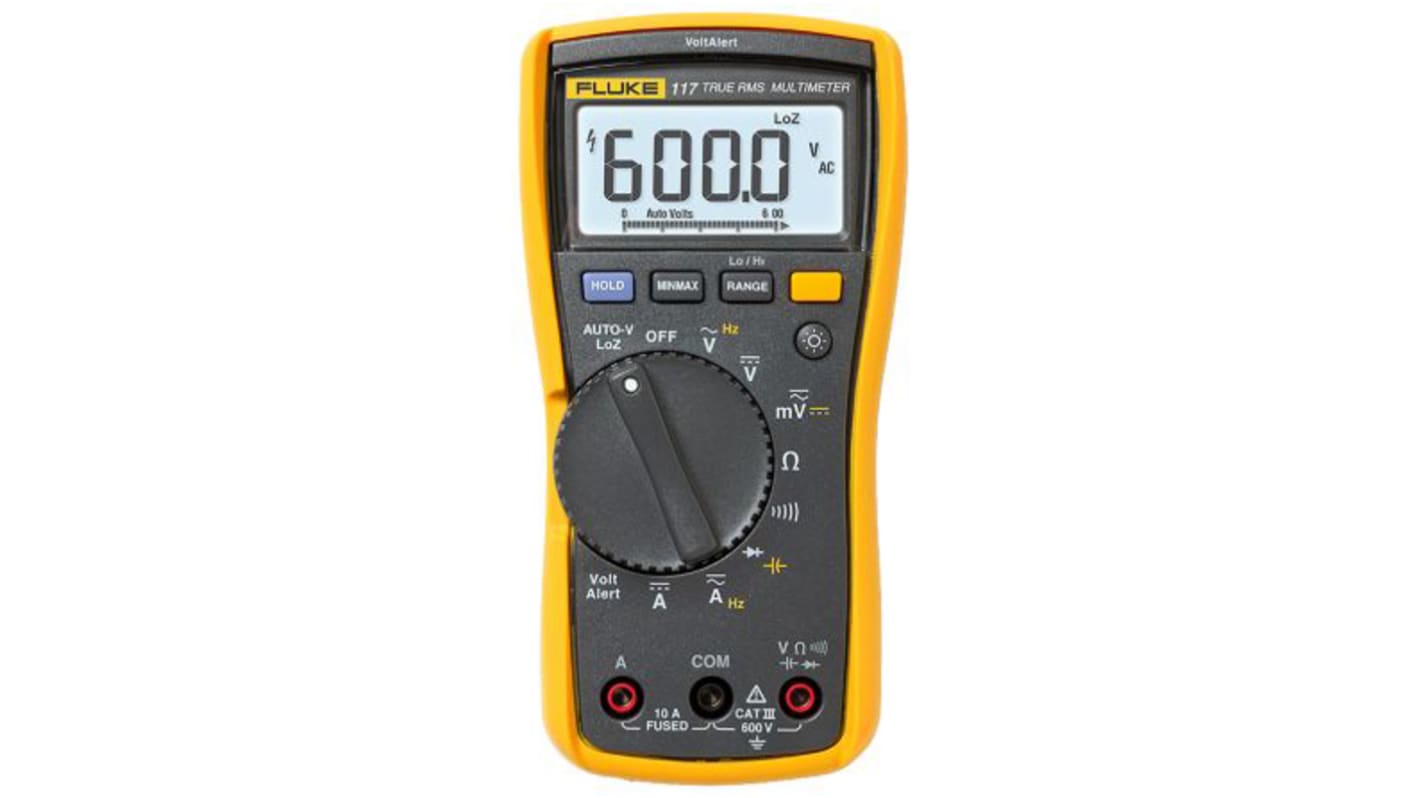

Fluke 117 Fluke 117 Digital Digital Multimeter True RMS, 10 A ac, 10 A dc, 600 V ac, UKAS Calibrated
- RS Stock No.:
- 625-0605
- Mfr. Part No.:
- FLUKE 117 EUR
- Brand:
- Fluke
Subtotal (1 unit)*
Kr. 4 359,00
(exc. VAT)
Kr. 5 448,75
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 129 unit(s) ready to ship
- Plus 92 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 4 359,00 |
*price indicative
- RS Stock No.:
- 625-0605
- Mfr. Part No.:
- FLUKE 117 EUR
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Multimeter | |
| Multimeter Type | Digital | |
| Model Number | 117 | |
| Display Type | Digital | |
| Resistance Resolution | 100mΩ | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance | |
| Maximum AC Current Measurement | 10A ac | |
| Maximum Resistance Measurement | 40mΩ | |
| Maximum AC Voltage Measurement | 600V ac | |
| Maximum DC Current Measurement | 10A dc | |
| Maximum DC Voltage Measurement | 600V dc | |
| True RMS | Yes | |
| AC Voltage Accuracy | ±1 % rdg + 3 Digits | |
| AC Current Accuracy | ±1.5 % rdg + 3 Digits | |
| DC Current Accuracy | ±1 % rdg + 3 Digits | |
| DC Voltage Accuracy | ±0.5 % rdg + 2 Digits | |
| AC Voltage Resolution | 0.1mV ac | |
| DC Voltage Resolution | 0.1 mV dc | |
| DC Current Resolution | 0.001A ac | |
| AC Current Resolution | 0.001A ac | |
| Maximum Frequency | 50kHz | |
| Power Source | Battery | |
| Resistance Measurement Accuracy | ±1.5 % rdg + 2 Digits | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 400h | |
| Weight | 550g | |
| Standards/Approvals | CE, N10140, TUV, CSAus, UL, VDE | |
| Width | 84mm | |
| Height | 46mm | |
| Length | 167mm | |
| Series | Fluke 117 | |
| Safety Category Level | CAT III | |
| Safety Category Voltage | 600V | |
| Battery Type | Alkaline | |
| Calibrated | UKAS | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Multimeter | ||
Multimeter Type Digital | ||
Model Number 117 | ||
Display Type Digital | ||
Resistance Resolution 100mΩ | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance | ||
Maximum AC Current Measurement 10A ac | ||
Maximum Resistance Measurement 40mΩ | ||
Maximum AC Voltage Measurement 600V ac | ||
Maximum DC Current Measurement 10A dc | ||
Maximum DC Voltage Measurement 600V dc | ||
True RMS Yes | ||
AC Voltage Accuracy ±1 % rdg + 3 Digits | ||
AC Current Accuracy ±1.5 % rdg + 3 Digits | ||
DC Current Accuracy ±1 % rdg + 3 Digits | ||
DC Voltage Accuracy ±0.5 % rdg + 2 Digits | ||
AC Voltage Resolution 0.1mV ac | ||
DC Voltage Resolution 0.1 mV dc | ||
DC Current Resolution 0.001A ac | ||
AC Current Resolution 0.001A ac | ||
Maximum Frequency 50kHz | ||
Power Source Battery | ||
Resistance Measurement Accuracy ±1.5 % rdg + 2 Digits | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Battery Life 400h | ||
Weight 550g | ||
Standards/Approvals CE, N10140, TUV, CSAus, UL, VDE | ||
Width 84mm | ||
Height 46mm | ||
Length 167mm | ||
Series Fluke 117 | ||
Safety Category Level CAT III | ||
Safety Category Voltage 600V | ||
Battery Type Alkaline | ||
Calibrated UKAS | ||
RoHS Status: Exempted
- COO (Country of Origin):
- CN
Fluke Multimeter, 600V Maximum DC Voltage, 20A Maximum AC Current - FLUKE 117 EUR
This multimeter is a handheld diagnostic instrument designed for electrical and electronic professionals to measure AC/DC volts, current, resistance, frequency and capacitance in industrial and field environments. It offers true‑RMS measurement capability for accurate readings on non‑sinusoidal waveforms and is powered by a long‑life alkaline battery for extended onsite use.
Features & Benefits
• True‑RMS measurements for accurate readings on distorted signals
• Measures up to 600V and 20A for broad system coverage
• Frequency response to 50kHz for high‑frequency diagnostics
• Low‑resistance measurement down to 40mΩ for tight contact checks
• Diode and continuity tests detect opens and shorts quickly
• Battery life approximately 400 h for prolonged field operation
• Measures up to 600V and 20A for broad system coverage
• Frequency response to 50kHz for high‑frequency diagnostics
• Low‑resistance measurement down to 40mΩ for tight contact checks
• Diode and continuity tests detect opens and shorts quickly
• Battery life approximately 400 h for prolonged field operation
**Applications**
• Suitable for fault‑finding in automation control cabinets
• Ideal for commissioning AC and DC power systems
• Used for capacitor testing and circuit tuning in electronics
• Can be used for motor drive frequency verification up to 50kHz
• Suitable for testing clamp‑free current scenarios up to 20A
• Ideal for commissioning AC and DC power systems
• Used for capacitor testing and circuit tuning in electronics
• Can be used for motor drive frequency verification up to 50kHz
• Suitable for testing clamp‑free current scenarios up to 20A
What protection ratings and approvals does it have for industrial use?
It meets multiple safety and certification standards including CE, TÜV, UL and complies with IEC 61010 CAT III 600V for safe connection to mains‑associated equipment.
How does the meter handle inrush or short‑duration current measurements?
The instrument tolerates a 20A overload for up to 30 s on the high‑current input, allowing brief measurement of inrush events without damage.
What display and measurement update behaviour should I expect?
Readings show on a 6000‑count digital display with a 33‑segment bargraph
numeric updates occur about four times per second and the bargraph updates Faster for trend indication.
Which battery type is required and what are operating environment limits?
It uses a 9V alkaline cell and operates between −10°C and +50°C with specified humidity limits and storage from −40°C to +60°C.
Can it measure capacitance and temperature?
It measures capacitance ranges from 1000 nF to 9999 μF with varied accuracy tiers
temperature measurement is not included for this unit.
Note
For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
Contents
TL75 Test leads, holster, user’s manual and 9V battery (installed).
