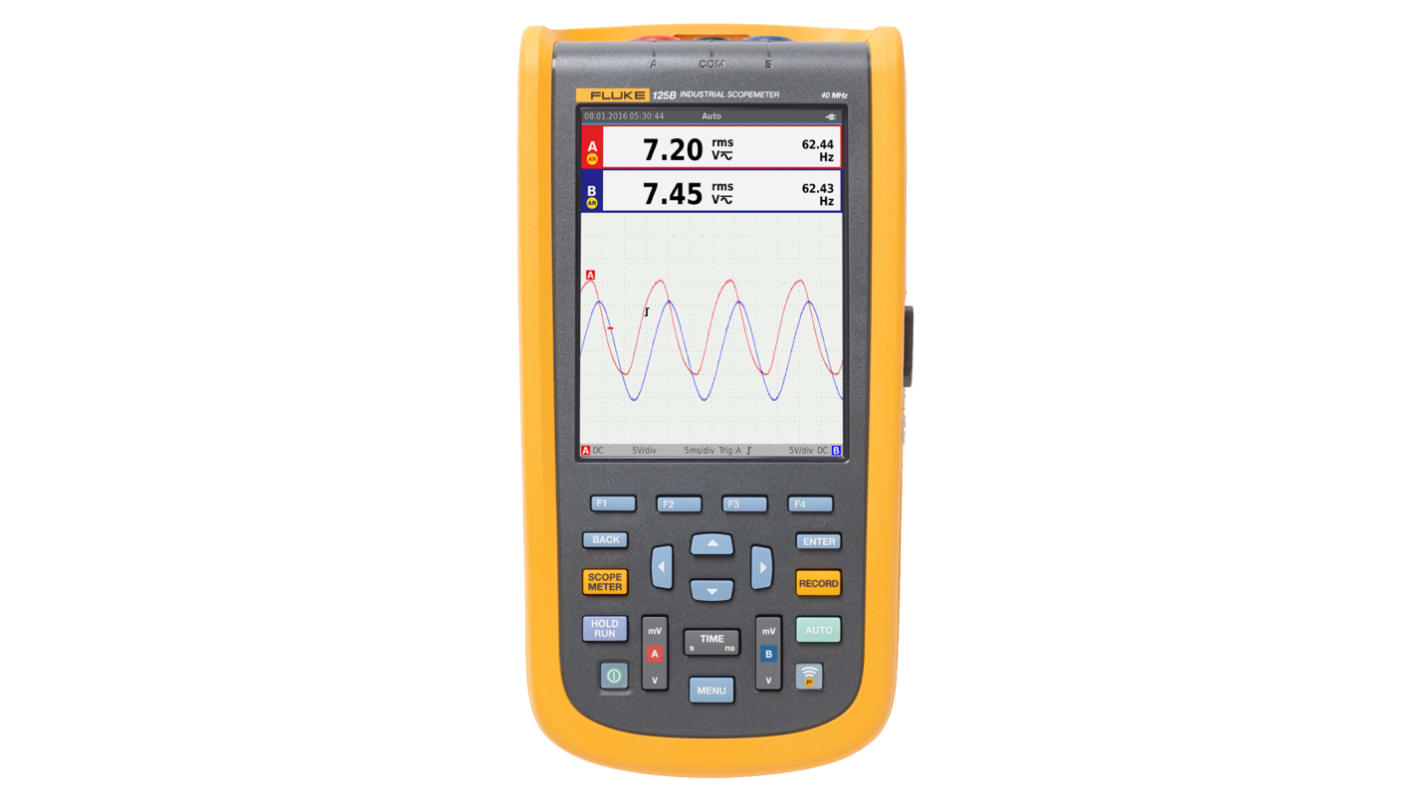

Fluke 120B Series 125B/EU/S Oscilloscope, Handheld, 2 Channels, 40MHz

  • RS Stock No. 122-8938
  • Mfr. Part No. FLUKE-125B/EU/S
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): CN
Product Details

Fluke ScopeMeter Oscilloscope

The Fluke 120B series, 2-channel, 40MHz is an EU plug type compact scopemeter and an integrated test tool, with an oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. This scopemeter is also integrated with Fluke connect mobile app and FlukeView for scopemeter software to enable further collaboration, data analysis and archiving of critical test information.
Note:
The 40 MHz Fluke 125B includes scope cursor measurements, power and harmonics measurements and bus health tester.
Supplied with:
Li-ion battery pack, charger/power adapter, shielded test leads (2) with ground leads, black test lead, red and blue hook clips, banana to BNC adapter, carry case,
FlukeView for Windows software, magnetic hanger, screen protector.

Features and Benefits

Rise time is less than 8.75ns
Dual-input digital oscilloscope and multimeter
Two 5,000 counts true-RMS digital multimeter
Automatic measurements
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder event detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Connect-and-View trigger simplicity for hands-off operation
Shielded test leads for oscilloscope, voltage, resistance and continuity measurements
Measures voltage, current and power harmonics
Up to 7 hours of rechargeable battery operation
External optically isolated USB interface to transfer, archive and analyse scope or meter data
Rugged compact case
Gives bus health and power measurements
Fluke 125B/S versions also include carry case, FlukeView for Windows software, magnetic hanger and screen protector

Applications

Industrial equipments
Electro-mechanical troubleshooting and maintenance

Certifications

IP51 rated
IEC 61010-1 approved
Pollution Degree 2, IEC 61010-2-033
CAT III 750V
CAT IV 600V

Specifications
Attribute Value
Number of Channels 2
Bandwidth 40MHz
Oscilloscope Type Handheld
Series 120B
Power Source Battery, Mains
Minimum Vertical Sensitivity 5mV/div
Maximum Vertical Sensitivity 200V/div
Minimum Time Base 10ns/div
Screen Size 5.7in
Sample Rate Random 400 K samples/s
Battery Type Rechargeable Li-Ion 10.8 V
Plug Type EU
Safety Category Voltage 600 V, 750 V
Safety Category CAT III 750 V, CAT IV 600 V
Model Number p 125B/EU/S
Rise Time <8.75ns
Safety Category Level CAT III, CAT IV
In stock for delivery within 2 working days
Price Each
kr 25 087,00
(exc. VAT)
kr 31 358,75
(inc. VAT)
Units
Per unit
1 +
kr 25 087,00
Not available for next day delivery
