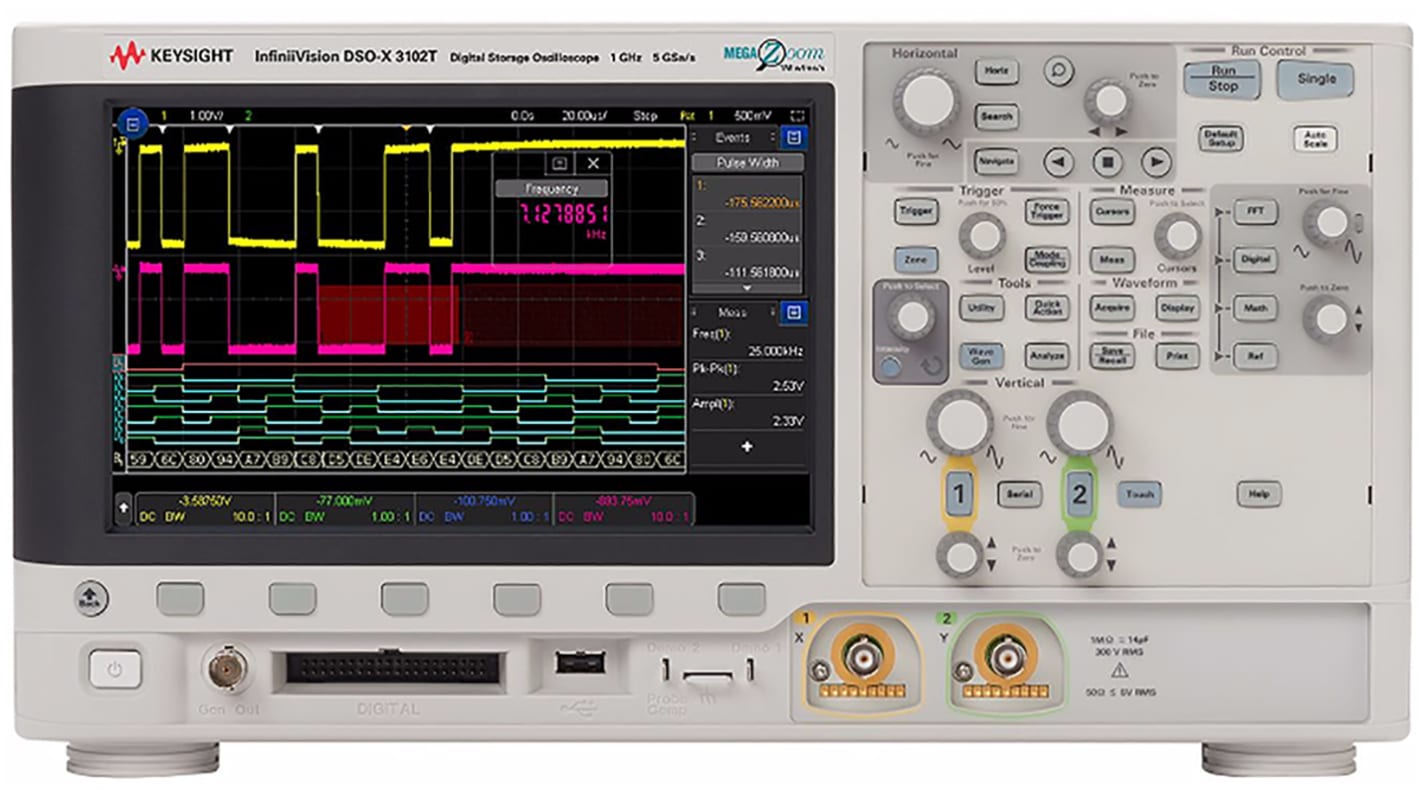

Keysight Technologies MSOX3102T InfiniiVision 3000T X Series, 1GHz Bench Oscilloscope, 2 Analogue Channels, 16 Digital

RS Stock No.:: 134-6553
Mfr. Part No.:: MSOX3102T
Brand:: Keysight Technologies

Keysight Technologies MSOX3102T InfiniiVision 3000T X Series, 1GHz Bench Oscilloscope, 2 Analogue Channels, 16 Digital

Subtotal (1 unit)**

Kr. 198 364,24

(exc. VAT)

Kr. 247 955,30

(inc. VAT)

Available to back order for despatch 08.07.2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Not available for next day delivery

Units	Per unit
1 +	Kr. 198 364,24

**price indicative

RS Stock No.:: 134-6553
Mfr. Part No.:: MSOX3102T
Brand:: Keysight Technologies

Keysight MSOX3102T / MSOX3104T Mixed Signal Oscilloscopes

The new Infiniivision 3000T X-Series MSO digital storage and mixed signal oscilloscopes give engineers a powerful tool for finding, isolating and resolving the most difficult signal problems.

These oscilloscopes offer modern user interfaces including an industry first 8.5 inch capacitive touch screen and new features for isolating problems faster. The 3000T X-Series also offers six instruments in one unit: oscilloscope, digital channels, digital volt meter, protocol analysis, wave-gen waveform generator, and an 8-digit counter and totaliser.

Easy to touch targets, adaptable interface and pop-up keyboard to document what you discover.

Signal detail is enhanced by an update rate of over 1 million wave forms. The likelihood of capturing and identifying random and infrequent events is higher than ever. The rate also remains constant regardless of which functions you have switched on.

Identified anomalies can be isolated with Zone Trigger by simply drawing a box around the signal area of interest on screen.

Support for a wide range of popular and emerging serial bus applications including: ARINC 429, CAN/CAN-Symbolic, CAN-FD, FlexRay, I2C, I2S, LIN, MIL-STD 1533, SENT, SPI 4-wire and UART/RS232C.

You can also correlate analogue digital and frequency data using the gated FFT for multi-domain problem solving.

Features and Benefits

• 1 GHz

• 2 analogue plus 16 digital channels (RS 134-6145); 4 analogue plus 16 digital channels (RS 134-6144)

• Easily view and analyze your signals with on the large 8.5-inch capacitive touch screen

• Isolate signals in seconds with exclusive Zone touch triggering

• See more signal detail with the 1000000 wfms/s update rate

• Capture more data with up to 4 Mpts memory

• Expand your measurement capabilities with full upgradability: Add 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis & mask testing at any time

Buy a scope – and get a free software bundle worth up to €5,300 / £4,700!
RS customers purchasing a qualifying 2000X, 3000X, 4000X or 6000X oscilloscope will be eligible for one free software option on each new oscilloscope purchased (one D2000BDLB for 2000X models, one D3000BDLB for 3000X models, one D4000BDLB for 4000X models, one D6000BDLB for 6000X models). To receive the software option, customers must submit a claim and provide purchase information via the following webform: www.keysight.com/find/InfiniiVisionClaim. Offer valid for purchases from 01-Feb-2024 until 31-August-2024. Claims will be accepted up to 90 days later, provided the qualifying products were purchased within the promotion period. Keysight will validate the purchase and arrange shipment to the customer. Typical fulfillment turnaround-time of the free software option is 10 days after claim is validated and approved. This promotion is offered to all customers in EMEAI, excluding Israel.

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Bandwidth	1GHz
	Number of Analogue Channels	2
	Number of Digital Channels	16
	Calibrated	UKAS
	Oscilloscope Type	Bench
	Oscilloscope Form	Mixed Signal
	Interface	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random	1.25 (Digital) Gsps, 2.5 (All Analogue) Gsps, 5 (All Half Analogue) Gsps
	Screen Size	8.5in
	Series	InfiniiVision 3000T X
	Record Length	2 (Analogue) M points/ch, 2 (Digital) M points/ch
	Digital/Analogue	Digital
	Maximum Vertical Sensitivity	5V/div
	Safety Category	CAT I ±40V
	Minimum Time Base	500ps/div
	Maximum Time Base	50s/div
	Vertical Resolution	8 bit, 12 bit
	Dimensions	381 x 204 x 142mm
	Weight	4kg
	Minimum Vertical Sensitivity	1mV/div
	Power Source	Mains
	Display Type	TFT LCD
	Rise Time	≤450ps

	Select all
	Brand Keysight Technologies
	Bandwidth 1GHz
	Number of Analogue Channels 2
	Number of Digital Channels 16
	Calibrated UKAS
	Oscilloscope Type Bench
	Oscilloscope Form Mixed Signal
	Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random 1.25 (Digital) Gsps, 2.5 (All Analogue) Gsps, 5 (All Half Analogue) Gsps
	Screen Size 8.5in
	Series InfiniiVision 3000T X
	Record Length 2 (Analogue) M points/ch, 2 (Digital) M points/ch
	Digital/Analogue Digital
	Maximum Vertical Sensitivity 5V/div
	Safety Category CAT I ±40V
	Minimum Time Base 500ps/div
	Maximum Time Base 50s/div
	Vertical Resolution 8 bit, 12 bit
	Dimensions 381 x 204 x 142mm
	Weight 4kg
	Minimum Vertical Sensitivity 1mV/div
	Power Source Mains
	Display Type TFT LCD
	Rise Time ≤450ps
