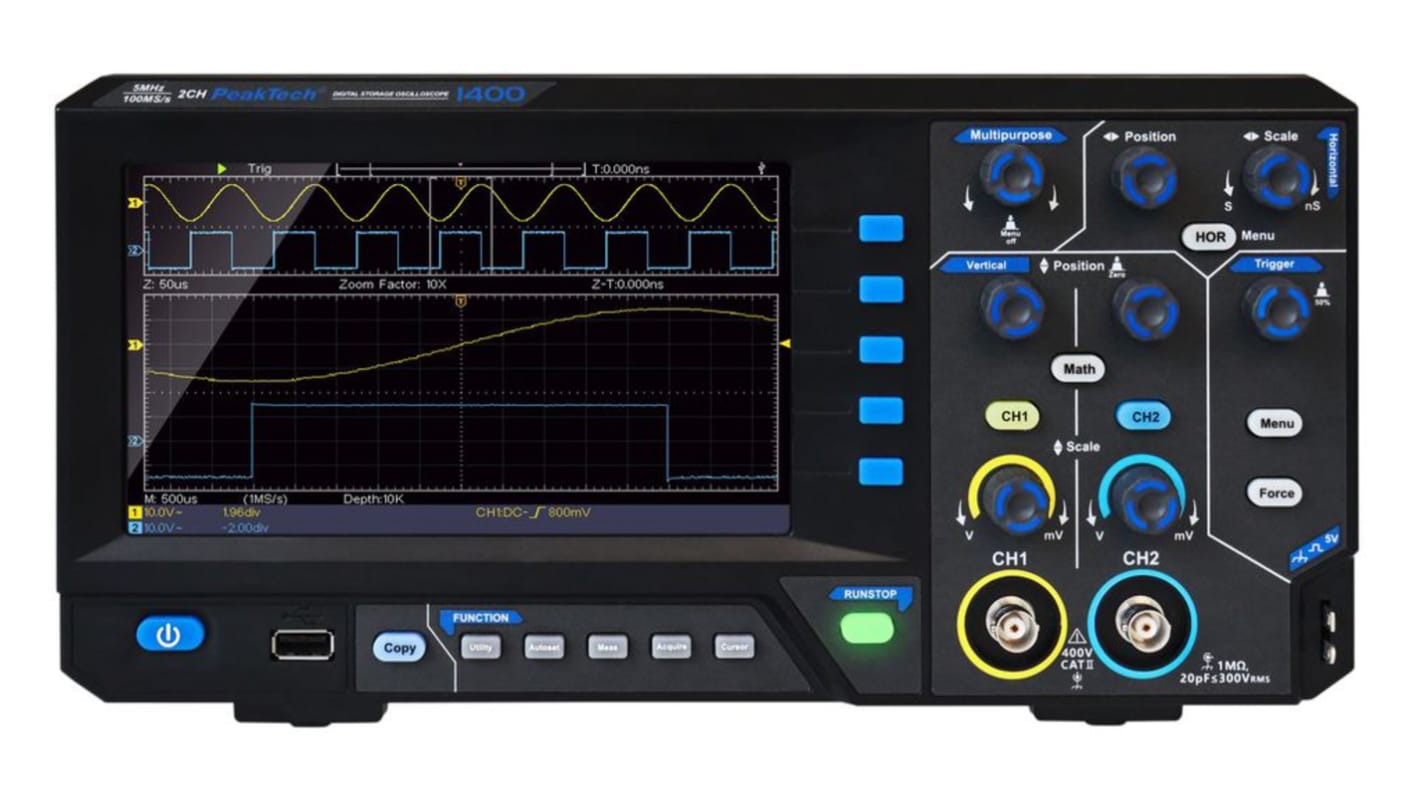

PeakTech P1400 Series, 20 MHz Bench 2-Channel
- RS Stock No.:
- 285-8561
- Distrelec Article No.:
- 302-96-324
- Mfr. Part No.:
- P1402
- Brand:
- PeakTech
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
Kr. 4 927,86
(exc. VAT)
Kr. 6 159,82
(inc. VAT)
- RS Stock No.:
- 285-8561
- Distrelec Article No.:
- 302-96-324
- Mfr. Part No.:
- P1402
- Brand:
- PeakTech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PeakTech | |
| Bandwidth | 20MHz | |
| Number of Channels | 2 | |
| Oscilloscope Type | Bench | |
| Interface Type | USB | |
| Series | P1400 | |
| Standards/Approvals | No | |
| Maximum Time Base | 1000s/div | |
| Maximum Vertical Sensitivity | 5V/div | |
| Rise Time | 17.5ns | |
| Minimum Vertical Sensitivity | 5mV/div | |
| Vertical Resolution | 8 bit | |
| Minimum Time Base | 5ns/div | |
| Select all | ||
|---|---|---|
Brand PeakTech | ||
Bandwidth 20MHz | ||
Number of Channels 2 | ||
Oscilloscope Type Bench | ||
Interface Type USB | ||
Series P1400 | ||
Standards/Approvals No | ||
Maximum Time Base 1000s/div | ||
Maximum Vertical Sensitivity 5V/div | ||
Rise Time 17.5ns | ||
Minimum Vertical Sensitivity 5mV/div | ||
Vertical Resolution 8 bit | ||
Minimum Time Base 5ns/div | ||
- COO (Country of Origin):
- CN
The Digital storage oscilloscope is specially developed for the education and hobby sector, offering the best price/performance ratio without compromising on functionality or technical features.
2-channel oscilloscope with 20 MHz analogue bandwidth at max. 250 MS/s sampling rate
USB device connection for real-time data transmission
Handy and flat housing design with carrying handle for portability
Autoset function for user-friendly operation
Automatic measuring modes, XY mode, and FFT function for advanced analysis
EN 61010-1, CAT II 400V safety certification for peace of mind
Accessories included: USB cable, software CD for Windows, mains cable, probes and operating instructions
