WAGO 250 Series PCB Connector, 17-Contact, 3.5 mm Pitch, 1 Row, 250-117
- RS Stock No.:
- 220-540
- Mfr. Part No.:
- 250-117
- Brand:
- WAGO
Subtotal (1 box of 15 units)*
Kr. 583,44
(exc. VAT)
Kr. 729,30
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | Kr. 583,44 | Kr. 38,896 |
*price indicative
- RS Stock No.:
- 220-540
- Mfr. Part No.:
- 250-117
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 17 | |
| Product Type | PCB Connector | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | 45° | |
| Colour | Grey | |
| Voltage | 160 V | |
| Series | 250 | |
| Standards/Approvals | No | |
| Width | 61 mm | |
| Depth | 12mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 17 | ||
Product Type PCB Connector | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation 45° | ||
Colour Grey | ||
Voltage 160 V | ||
Series 250 | ||
Standards/Approvals No | ||
Width 61 mm | ||
Depth 12mm | ||
- COO (Country of Origin):
- CH

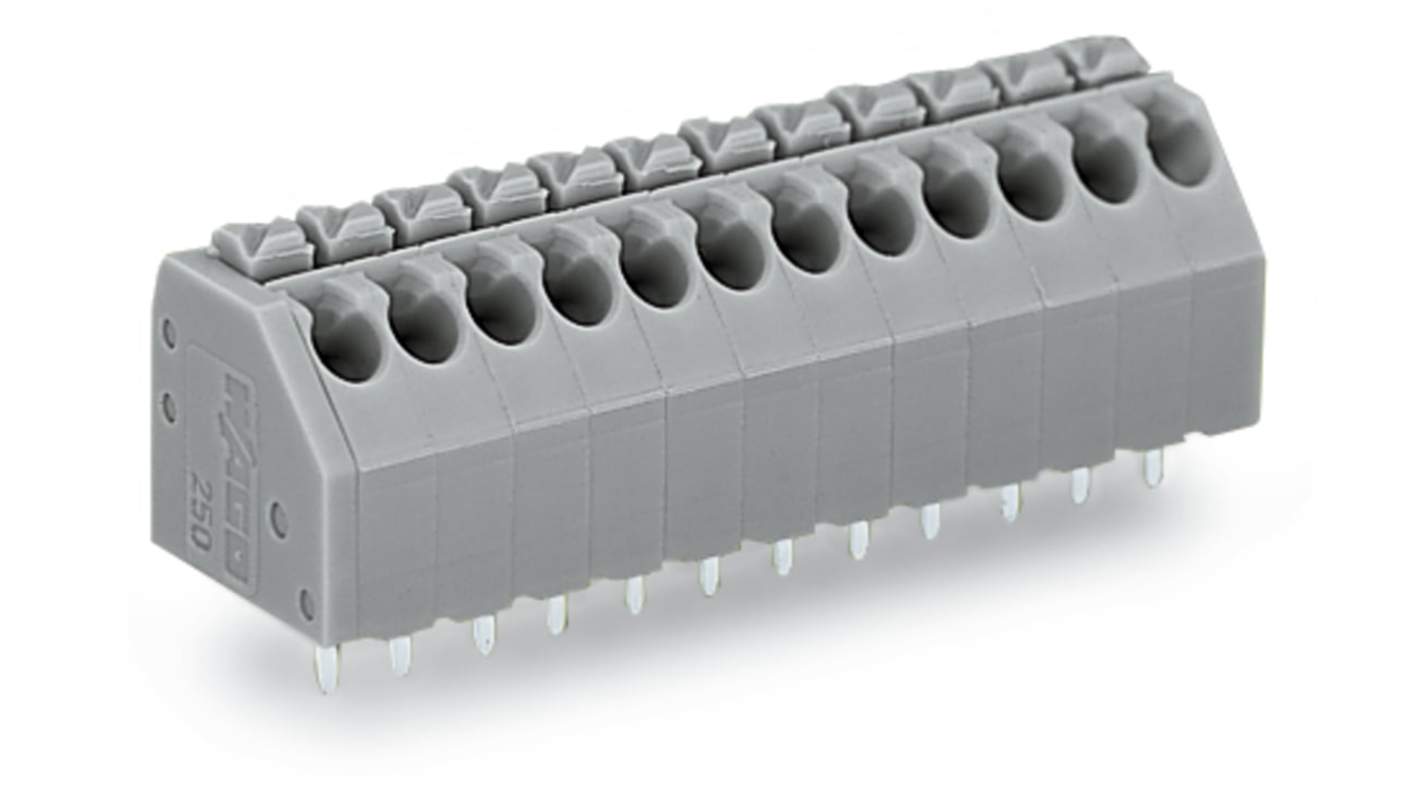

The Wago PCB Terminal Block combines compact design with robust functionality, making it ideal for various applications in electrical systems. With a push button actuation, this product allows for effortless terminations of both solid and fine stranded conductors, enhancing safety and efficiency in installations. Designed for versatility, it features a 17 pole configuration with push in cage clamp technology, ensuring secure and reliable connections.
Compact design allows for space saving installations
Designed to handle both solid and fine stranded conductors
Manufactured from high quality polyamide material for durability
Approvals from international standards ensure compliance and reliability
