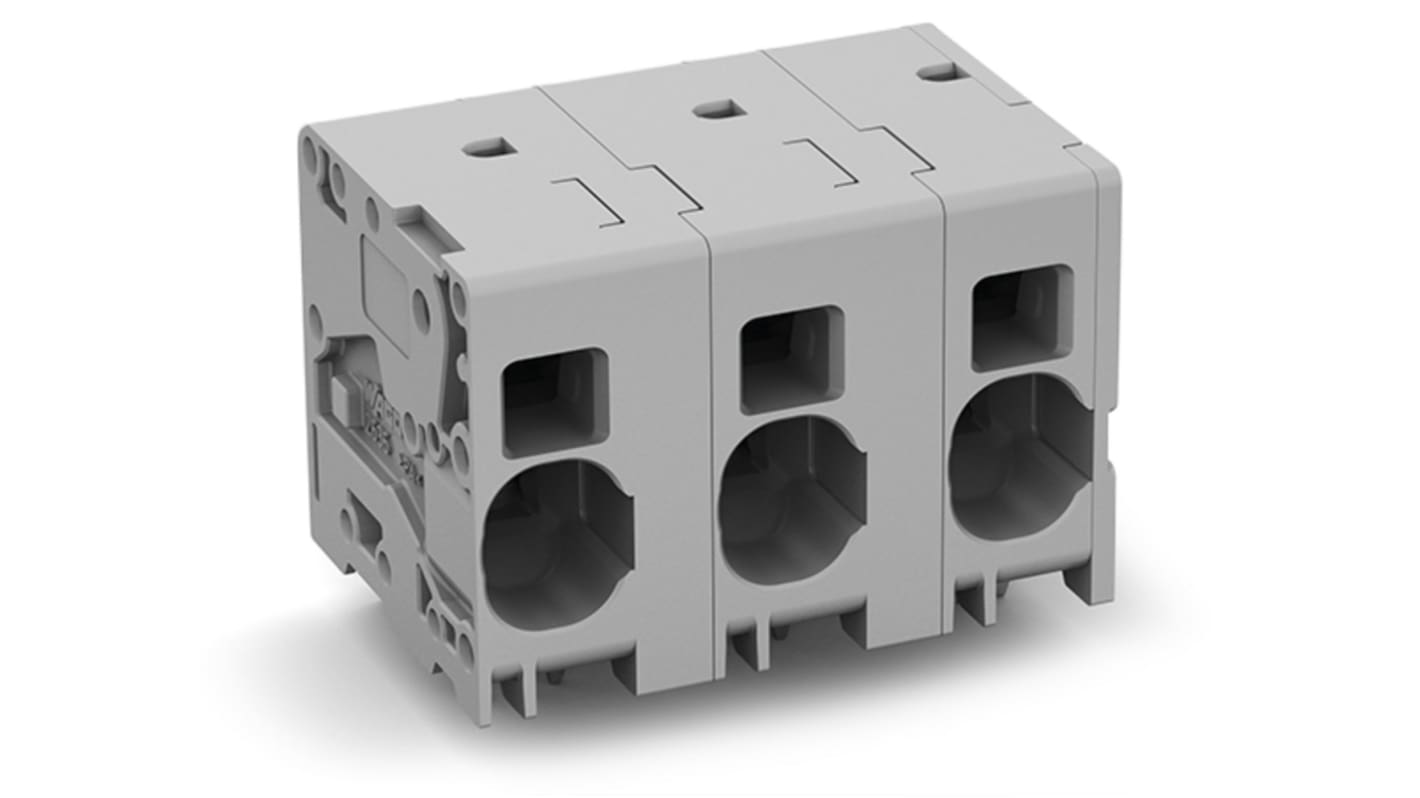

WAGO 2636 Series PCB Connector, 3-Contact, 15 mm Pitch, Feed Through, 1 Row
- RS Stock No.:
- 225-201
- Mfr. Part No.:
- 2636-1353
- Brand:
- WAGO
Subtotal (1 box of 36 units)*
Kr. 4 089,57
(exc. VAT)
Kr. 5 111,96
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | Kr. 4 089,57 | Kr. 113,599 |
*price indicative
- RS Stock No.:
- 225-201
- Mfr. Part No.:
- 2636-1353
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 15mm | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 2mm² | |
| Mount Type | Feed Through | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 18 AWG | |
| Maximum Wire Size AWG | 4 AWG | |
| Orientation | Parallel Entry | |
| Colour | Grey | |
| Wire Connection Method | Push-in | |
| Standards/Approvals | No | |
| Width | 41.6 mm | |
| Series | 2636 | |
| Depth | 29.1mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 15mm | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 2mm² | ||
Mount Type Feed Through | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 18 AWG | ||
Maximum Wire Size AWG 4 AWG | ||
Orientation Parallel Entry | ||
Colour Grey | ||
Wire Connection Method Push-in | ||
Standards/Approvals No | ||
Width 41.6 mm | ||
Series 2636 | ||
Depth 29.1mm | ||
- COO (Country of Origin):
- PL
The Wago PCB terminal block is engineered for seamless connectivity and dependable performance in various applications. Featuring a unique Push-in CAGE CLAMP technology, it allows for quick and secure connections without the need for additional tools. Designed for a three-pole configuration, this component ensures efficient space utilisation with a pin spacing of 15 mm.
Rated for high temperatures supporting reliable functionality across a broad application range
Offers a three pole configuration to enhance circuit versatility and application flexibility
Compliant with relevant international standards ensuring safety and reliability in use
Lightweight design facilitates ease of handling and installation
