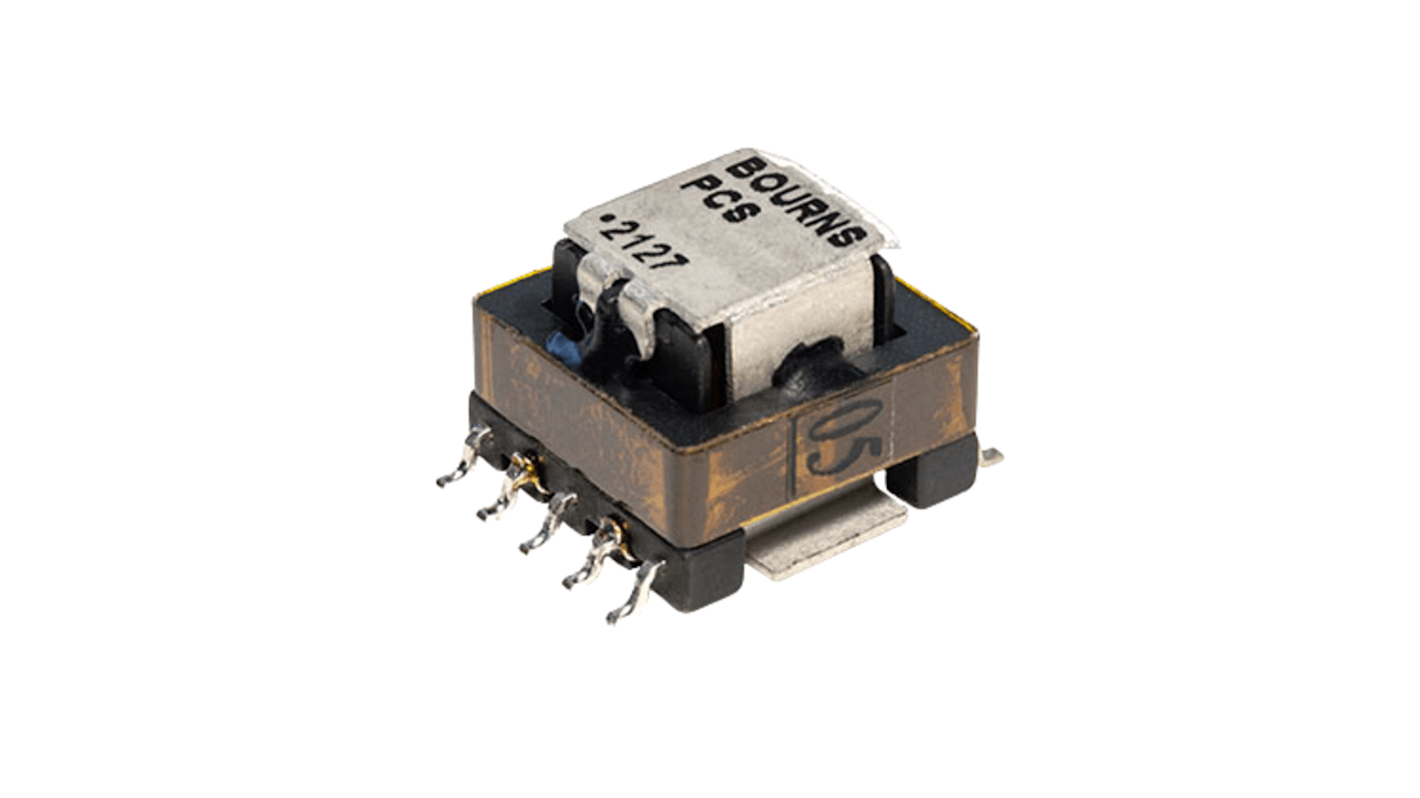

Bourns 1 Output Surface PCB Transformer, AEC-Q, RoHS 40 W

View all PCB Transformers

Subtotal (1 reel of 300 units)*

Kr.8 763 90

(exc. VAT)

Kr.10 954 80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
300 +Kr. 29,213Kr. 8 763,90

*price indicative

RS Stock No.:
261-0714
Mfr. Part No.:
PCS040-EF1305KS
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

PCB Transformer

Number of Outputs

1

Length

14.55mm

Width

19.91 mm

Depth

10.5mm

Power

40W

Mount Type

Surface

Isolation Voltage

800Vrms

PCB Transformer Current

40A

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

PCS040

Minimum Operating Frequency

10kHz

Maximum Operating Frequency

1MHz

Standards/Approvals

AEC-Q, RoHS

COO (Country of Origin):
CN
The Bourns PCS series current sense transformer is suitable for frequency up to 1 MHz. It has 800 Vrms isolation between windings. It is suitable for switched-mode power supplies, motor control, overload sensing, and AC current applications.

Rated current on primary up to 40 A

Operating temperature range from 40 °C to 125 °C
