Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hahn
	Secondary Voltage	9 V ac
	Product Type	PCB Transformer
	Primary Voltage	230 V ac
	Length	32.8mm
	Width	22.8 mm
	Power	2.6VA
	Depth	27.3mm
	Weight	0.099kg
	Mount Type	PCB
	Number of Pins	5
	Series	BV
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Standards/Approvals	UL, CSA

	Select all
	Brand Hahn
	Secondary Voltage 9 V ac
	Product Type PCB Transformer
	Primary Voltage 230 V ac
	Length 32.8mm
	Width 22.8 mm
	Power 2.6VA
	Depth 27.3mm
	Weight 0.099kg
	Mount Type PCB
	Number of Pins 5
	Series BV
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Standards/Approvals UL, CSA

Datasheet - BV EI 304 2041

COO (Country of Origin):: DE

The compact Printed-Circuit-Board transformer that offers high-quality performance and electrical safety. With primary voltages ranging from 12V to 250V and secondary voltages from 4V to 24V, this transformer is ideal for various electronic applications, domestic appliances, and telecommunications. Its minimal size and minimal power loss make it a reliable choice for manufacturers looking for top-notch components without compromising on quality.

Provides output power up to 0.5 VA

Inherently short-circuit-proof design for added safety

Vacuum-encapsulated bobbin type with dual-chamber windings

Temperature class ta 70°C/B for reliable performance

Self-extinguishing cast housing and sealing material for enhanced safety and durability

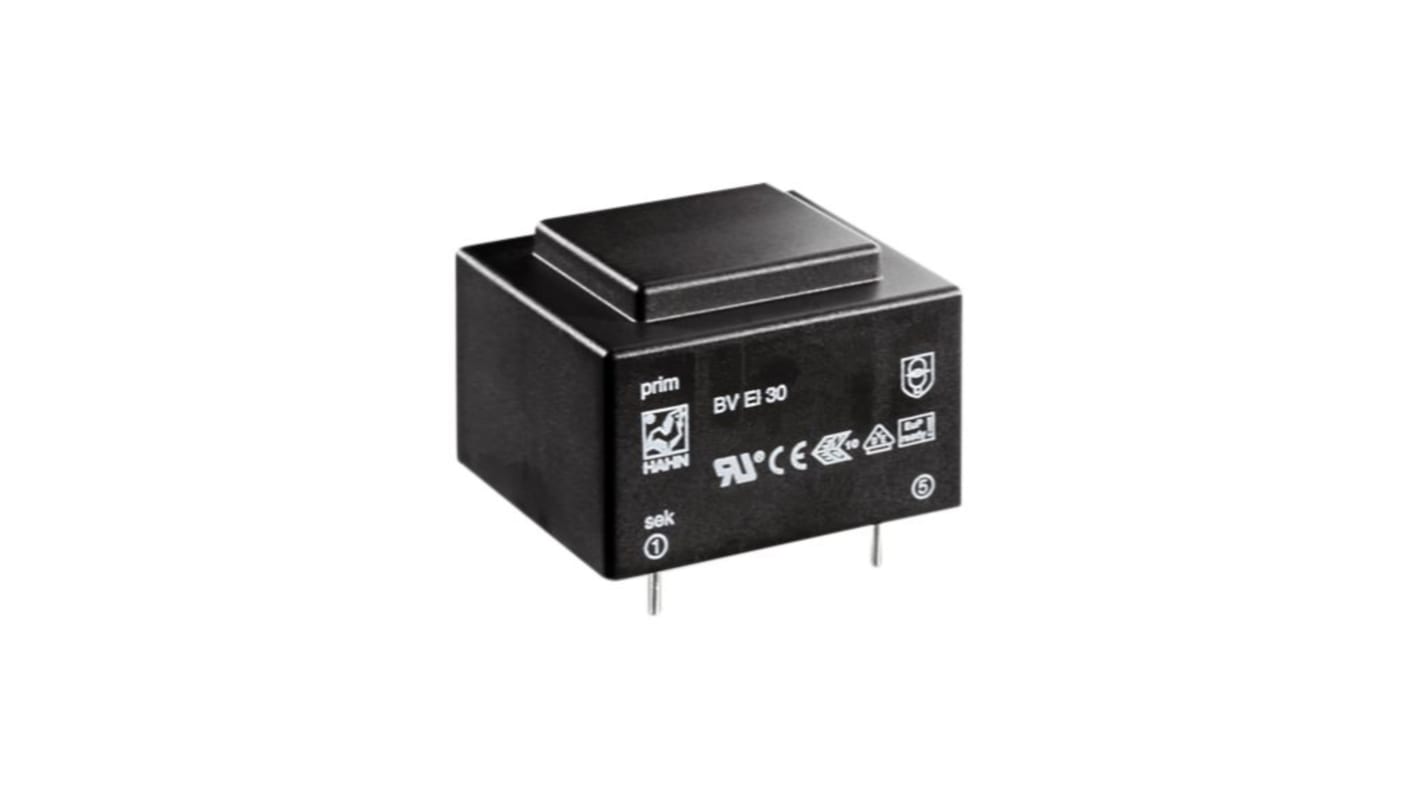

Hahn 9 V ac PCB PCB Transformer, UL, CSA 2.6 VA
