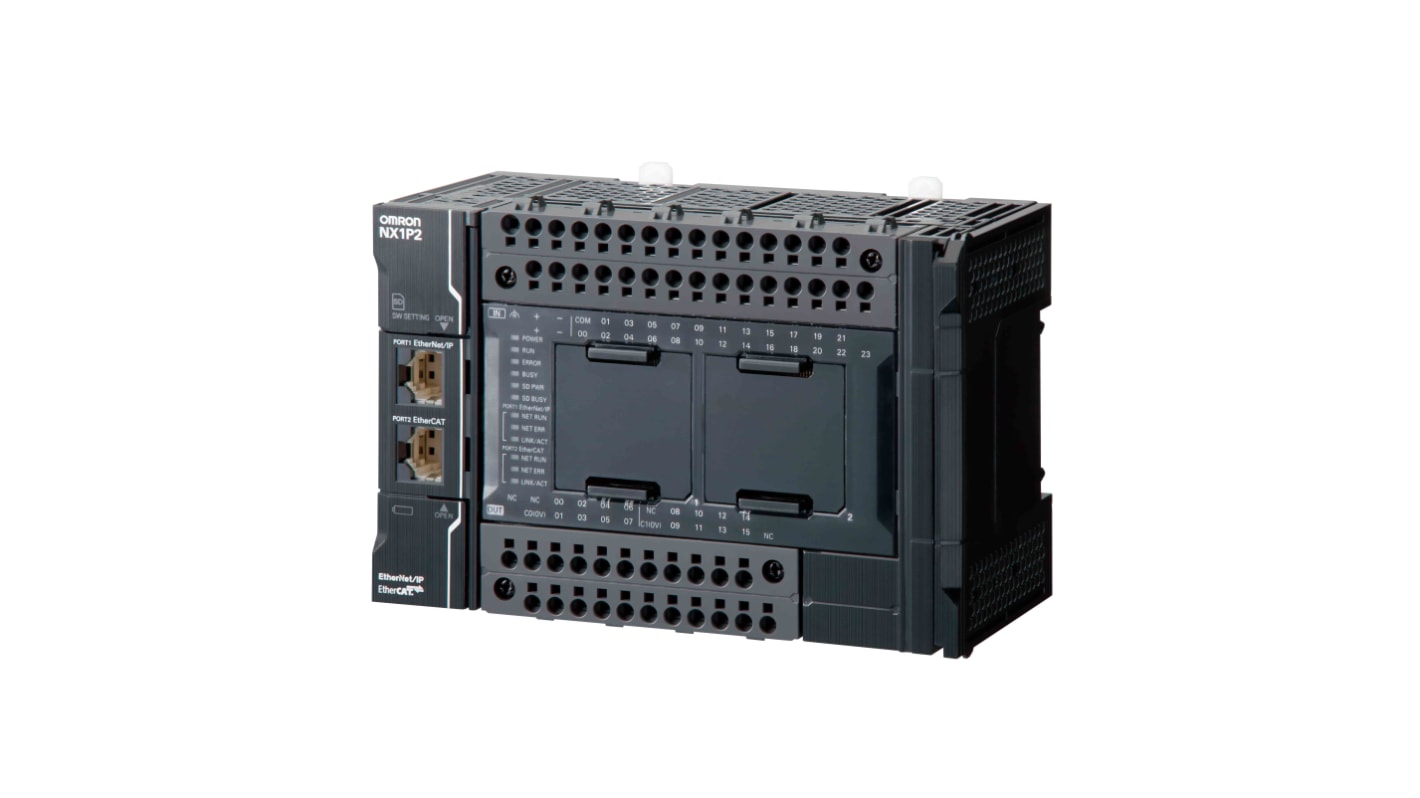

Omron NX1P Series PLC CPU, NPN Output, 24-Input, NPN Input
- RS Stock No.:
- 215-8917
- Distrelec Article No.:
- 302-29-143
- Mfr. Part No.:
- NX1P2-9B40DT
- Brand:
- Omron
Subtotal (1 unit)*
Kr. 10 322,20
(exc. VAT)
Kr. 12 902,75
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 10 322,20 |
*price indicative
- RS Stock No.:
- 215-8917
- Distrelec Article No.:
- 302-29-143
- Mfr. Part No.:
- NX1P2-9B40DT
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | PLC CPU | |
| Series | NX1P | |
| Number of Inputs | 24 | |
| Output Type | NPN | |
| Input Type | NPN | |
| Number of Outputs | 16 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 35.9 mm | |
| Depth | 13.5mm | |
| Length | 35.9mm | |
| Standards/Approvals | EU, cULus | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| Number of Communication Ports | 2 | |
| Mount Type | Panel | |
| Program Capacity | 1MB | |
| Communication Port Type | EtherCAT, Ethernet, Ethernet/IP | |
| Programming Language Used | Ladder Diagram | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type PLC CPU | ||
Series NX1P | ||
Number of Inputs 24 | ||
Output Type NPN | ||
Input Type NPN | ||
Number of Outputs 16 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Width 35.9 mm | ||
Depth 13.5mm | ||
Length 35.9mm | ||
Standards/Approvals EU, cULus | ||
Display Included Yes | ||
Battery Backup Yes | ||
Number of Communication Ports 2 | ||
Mount Type Panel | ||
Program Capacity 1MB | ||
Communication Port Type EtherCAT, Ethernet, Ethernet/IP | ||
Programming Language Used Ladder Diagram | ||
The Omron NX1P is a programmable logic controller with 40 Digital Transistor I/O (NPN). The module has a program capacity of 1 MB memory. It provides EtherCAT (0 servo axes, 2 PTP axes, 8 EtherCAT nodes), Ethernet/IP and 1 serial opt. These Compact but p
Built-in EtherCAT and Ethernet/IP ports
