Schneider Electric Zelio Logic Series Logic Module, 6-Input, Discrete Input, 4 Outputs, Relay Output

RS Stock No.:: 468-4444
Distrelec Article No.:: 303-04-774
Brand:: Schneider Electric

Schneider Electric Zelio Logic Series Logic Module, 6-Input, Discrete Input, 4 Outputs, Relay Output

Subtotal (1 unit)*

Kr. 2 257,21

(exc. VAT)

Kr. 2 821,51

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

Plus 29 unit(s) shipping from 28 September 2026
Plus 4 unit(s) shipping from 28 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 2 257,21

*price indicative

RS Stock No.:: 468-4444
Distrelec Article No.:: 303-04-774
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Series	Zelio Logic
	Product Type	Logic Module
	Number of Inputs	6
	Output Type	Relay
	Input Type	Discrete
	Number of Outputs	4
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Depth	59.5mm
	Length	71.2mm
	Width	107.6mm
	Standards/Approvals	CSA, UL, IEC, GL
	Communication Port Type	GSM Modems
	Supply Voltage	120, 240V ac
	Programming Language Used	FBD, Ladder Logic, Sequential function chart (SFC)
	Battery Backup	Yes
	Mount Type	DIN Rail
	Display Included	Yes

	Select all
	Brand Schneider Electric
	Series Zelio Logic
	Product Type Logic Module
	Number of Inputs 6
	Output Type Relay
	Input Type Discrete
	Number of Outputs 4
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Depth 59.5mm
	Length 71.2mm
	Width 107.6mm
	Standards/Approvals CSA, UL, IEC, GL
	Communication Port Type GSM Modems
	Supply Voltage 120, 240V ac
	Programming Language Used FBD, Ladder Logic, Sequential function chart (SFC)
	Battery Backup Yes
	Mount Type DIN Rail
	Display Included Yes

RoHS Status: Exempted

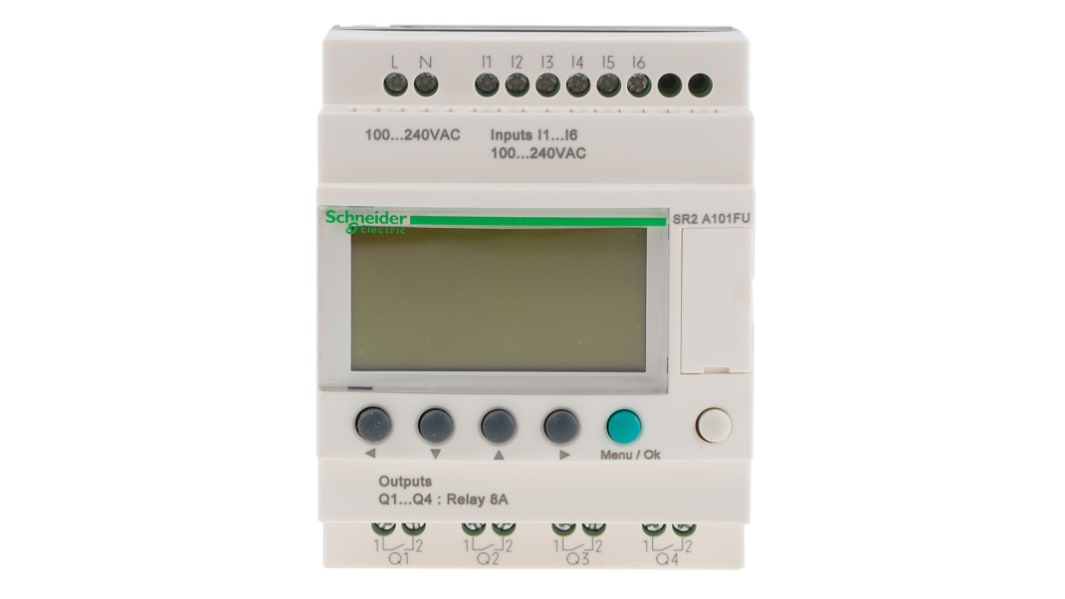

Schneider Electric Logic Module, 4 Outputs, Discrete Input Type - Zelio Logic Series - SR2A101FU

Control small automated systems with this compact logic module from Schneider Electric. The PLC (programmable logic controller) is suited to both industrial and commercial applications and you'll find it used to control the function of irrigation pumps, lighting systems and packaging machines. It's easy to configure using simple graphics-based programmes like ladder logic and function block diagram, so no specialist knowledge is needed. A 10-year backup memory allows you to conveniently copy programmes onto other devices to save on set-up time.

Features & Benefits

• Low power consumption for improved energy efficiency

• Bright LCD (liquid crystal display) that's easy to read in poorly lit areas

• Robust screw terminals that hold electrical wiring firmly in vibrating conditions

• Protected against over-voltage so not negatively affected by power supply surges

• Wide operating temperature range of -20°C to +55°C so suitable for industrial environments

Applications

• Warehouses and storage facilities

• Commercial heating and air-conditioning systems

• Agricultural machinery

Where should this logic module be installed?

This logic module should only be installed in an enclosure. Ensure that no metal fragments or wiring materials fall into the enclosure as these could cause a fire or lead to the device malfunctioning.
