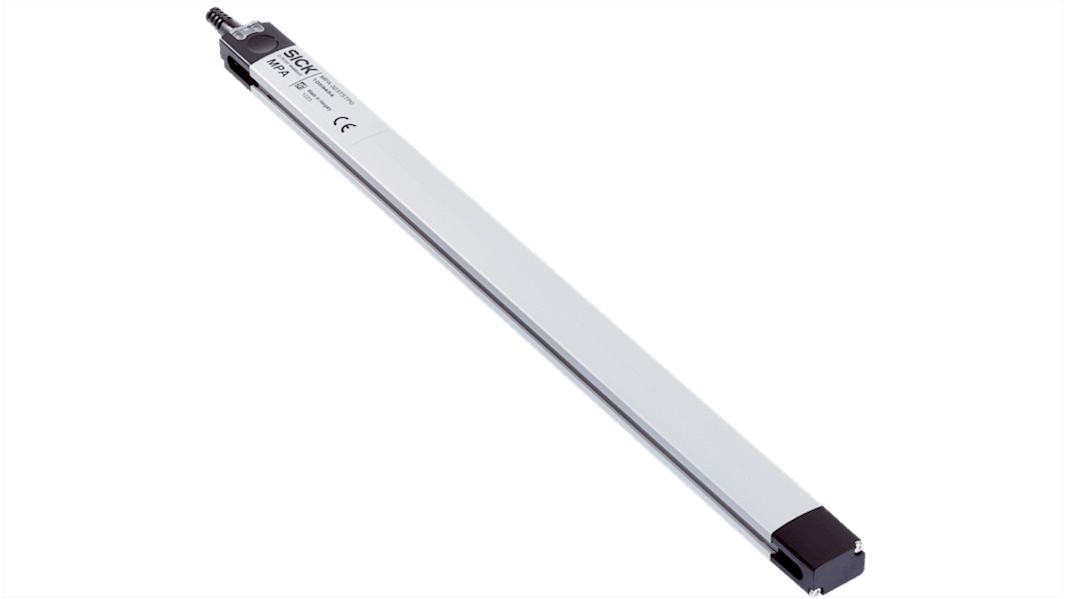

SICK Pneumatic Position Detector, IP65 30V dc, MPA-575THTP0 LED Indicator

View all Pneumatic Cylinder Sensors

Subtotal (1 unit)*

Kr. 7 570,91

(exc. VAT)

Kr. 9 463,64

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 7 570,91

*price indicative

RS Stock No.:
212-8531
Mfr. Part No.:
MPA-575THTP0
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Pneumatic Position Detector

Output Function

IO Link, Analogue

Series

MPA-575THTP0

Construction

Universal

LED Indicator

Yes

Housing Material

Metal, Plastic, Aluminium

Voltage

30V dc

For Use With

Universal

IP Rating

IP65

Analogue Output

0 to 10 V dc, 4 to 20 mA

Minimum Operating Temperature

-20°C

Measurement Principle

Magnetic Cylindrical Sensor

Maximum Operating Temperature

70°C

Diameter

8.2mm

Hazardous Area Certification

No

Width

20mm

Standards/Approvals

EN 60947-5-2, EN 60529

COO (Country of Origin):
HU

Overview


At a glance


Position sensor for use on pneumatic cylinders

Sensor variants with measuring ranges of 107 mm to 1,007 mm

Analog outputs (for current or voltage), switching output, and IO-Link

Mounting with adapters on a multitude of cylinder types (tie-rod cylinders, round body cylinders, profile cylinders)

Your Benefit


Straightforward installation as no position elements or additional mechanical components are required for coupling with the piston rod

Can be integrated into the machine at any time, as the sensor is attached to the cylinder externally

Easy adjustment of sensor settings and parameters during operation using a teach pad or IO-Link

More flexibility compared to conventional cylinder sensors, as it is possible to define multiple switching points in the smallest of spaces

Maximum reliability thanks to the rugged aluminum housing and non-contact measurement principle

Advanced diagnostic options thanks to data transmission via IO-Link

MPA position sensors continuously detect the piston position of pneumatic actuators using a direct, non-contact method. The sensors in the MPA product family are ideal for large piston diameters and long strokes. The sensor settings can be adjusted during installation and during operation later on, using a teach field or – depending on the variant – using IO-Link. The sensors continuously supply data via analog outputs or IO-Link, enabling flexible machine concepts and making it possible to solve tasks in areas such as quality monitoring and process control in conjunction with pneumatic cylinders and drives. This continuous transfer of position data upgrades the functionality of the pneumatic cylinders by making them more intelligent – and, as a result, more versatile.

Applications


Detection of dancer position

Monitoring the position of the product pusher

Monitoring of cylinder end position and press travel

Position monitoring of the sonotrodes using the MPA

Position and wear monitoring of the grinding heads

Automated removal from the workpiece carrier

Quality control using a laser line

Monitoring of the end positions of a press cylinder
