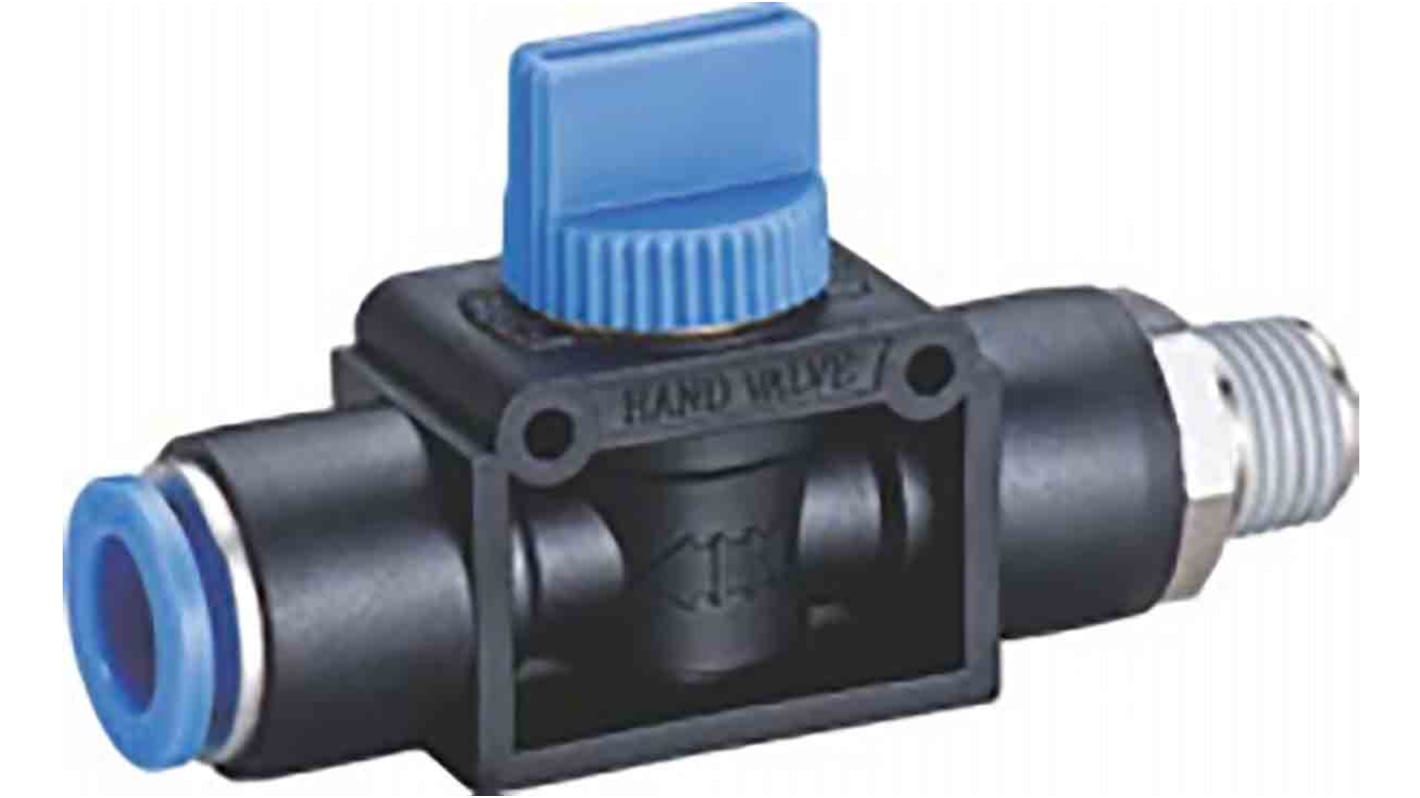

RS PRO Handle 3/2 Pneumatic Manual Control Valve, 1/4in, III B
- RS Stock No.:
- 144-2688
- Brand:
- RS PRO
21 In stock for same day dispatch
Price 1 Bag of 10
Kr. 1 265,54
(exc. VAT)
Kr. 1 581,92
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | Kr. 1 265,54 | Kr. 126,554 |
*price indicative
- RS Stock No.:
- 144-2688
- Brand:
- RS PRO
- COO (Country of Origin):
- TW
RS Pro Manual Control Valves
Features and Benefits
• When off, the 3 way direction control valve discharges the residual pressure and blocks airflow
• It switches air pressure devices by simply turning the handle (on/off)
• Maintenance or inspection is possible when the remaining pressure in the device is removed
• A 3 way valve discharges the remaining pressure and blocks the incoming air in the off state
• There are 4 types available depending on the way it is applied to the air pressure flow
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
• It switches air pressure devices by simply turning the handle (on/off)
• Maintenance or inspection is possible when the remaining pressure in the device is removed
• A 3 way valve discharges the remaining pressure and blocks the incoming air in the off state
• There are 4 types available depending on the way it is applied to the air pressure flow
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
When off, the three way direction control valve discharges the residual pressure and blocks air flow in
This product switches air pressure devices air on/off by simply turning the handle
Maintenance or inspection is possible when the remaining pressure in the device is removed
A three way valve discharges the remaining pressure out and blocks the incoming air in the off state
There are 4 types available depending on the way it is applied to the air pressure flow
This product switches air pressure devices air on/off by simply turning the handle
Maintenance or inspection is possible when the remaining pressure in the device is removed
A three way valve discharges the remaining pressure out and blocks the incoming air in the off state
There are 4 types available depending on the way it is applied to the air pressure flow
Attribute | Value |
|---|---|
| Control Mechanism | Handle |
| Function | 3/2 |
| Thread Size | 1/4in |
| Thread Standard | BSPT |
| Control Button/Switch Colour | Blue |
| Maximum Operating Pressure | 9.9 kgf/cm², 990 kPa |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +60°C |
| Number of Positions | 3 |
| Number of Ports | 2 |
