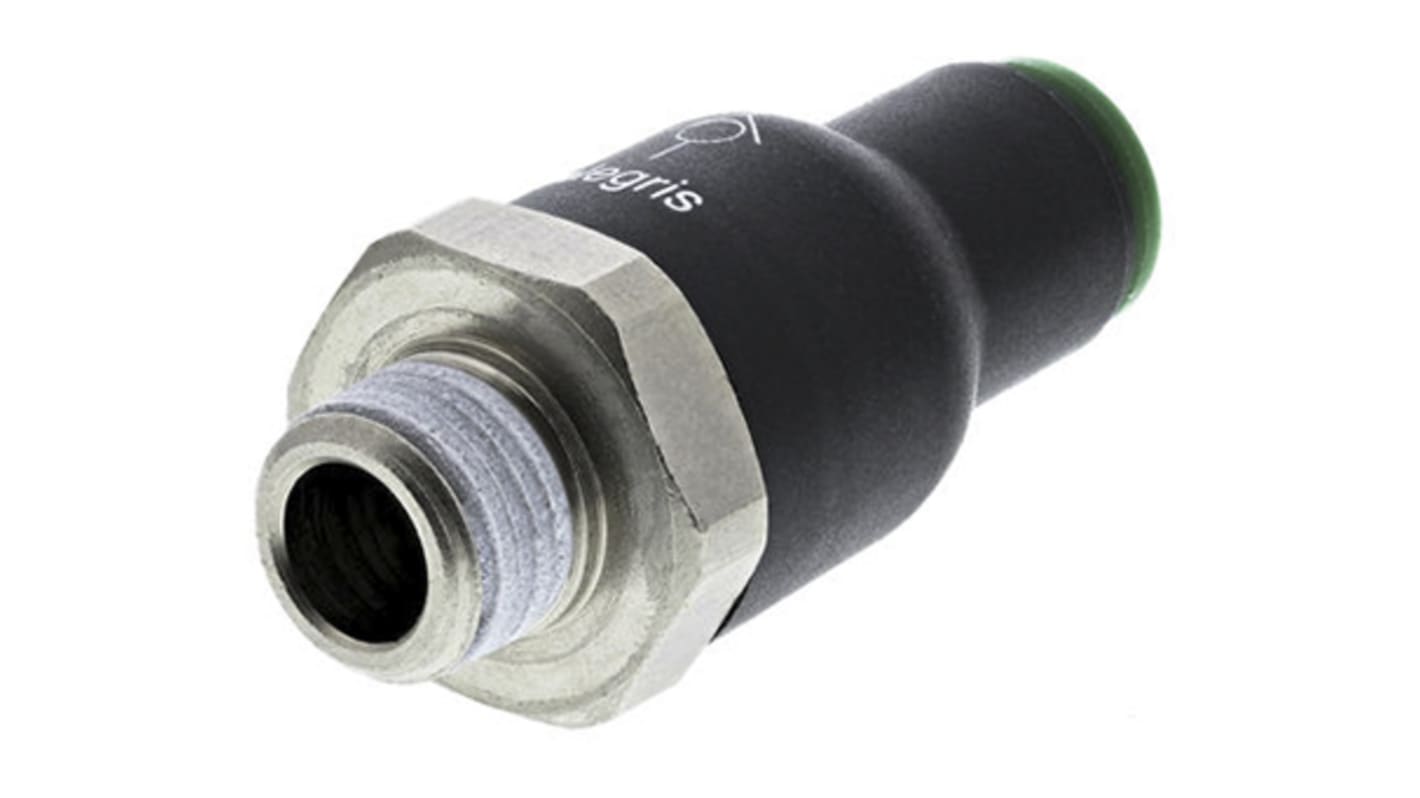

Legris 7985 Non Return Valve, 8mm Tube Inlet, R 1/4 Male Outlet, 1 to 10bar
- RS Stock No.:
- 445-3149
- Mfr. Part No.:
- 7985 08 13
- Brand:
- Legris
42 In stock for same day dispatch
Added
Price Each
Kr. 279,40
(exc. VAT)
Kr. 349,25
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 279,40 |
| 5 - 9 | Kr. 270,82 |
| 10 + | Kr. 262,02 |
- RS Stock No.:
- 445-3149
- Mfr. Part No.:
- 7985 08 13
- Brand:
- Legris
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
LF3000 Threaded Non-return Valve
Two types available, Exhaust and Supply flow
Exhaust flow type (colour coded red) allows air flow from threaded end to tube end only
Supply flow type (colour coded green) allows air flow from tube end to threaded end only
Plastic body with sealant coated thread for fast installation
Operating temperature range : 0 to +70°C
Exhaust flow type (colour coded red) allows air flow from threaded end to tube end only
Supply flow type (colour coded green) allows air flow from tube end to threaded end only
Plastic body with sealant coated thread for fast installation
Operating temperature range : 0 to +70°C
Specifications
Attribute | Value |
|---|---|
| Tube Inlet Connection | 8mm |
| Inlet Connection Type | Tube |
| Outlet Connection Type | Threaded |
| Manufacturer Series | 7985 |
| Threaded Outlet Connection | R 1/4 Male |
| Minimum Operating Pressure | 1bar |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +70°C |
| Threaded Outlet Gender | Male |
| Threaded Outlet Thread Size | 1/4in |
| Operating Pressure Range | 1 to 10bar |
| Minimum Operating Temperature | 0°C |
| Threaded Outlet Thread Standard | R |
