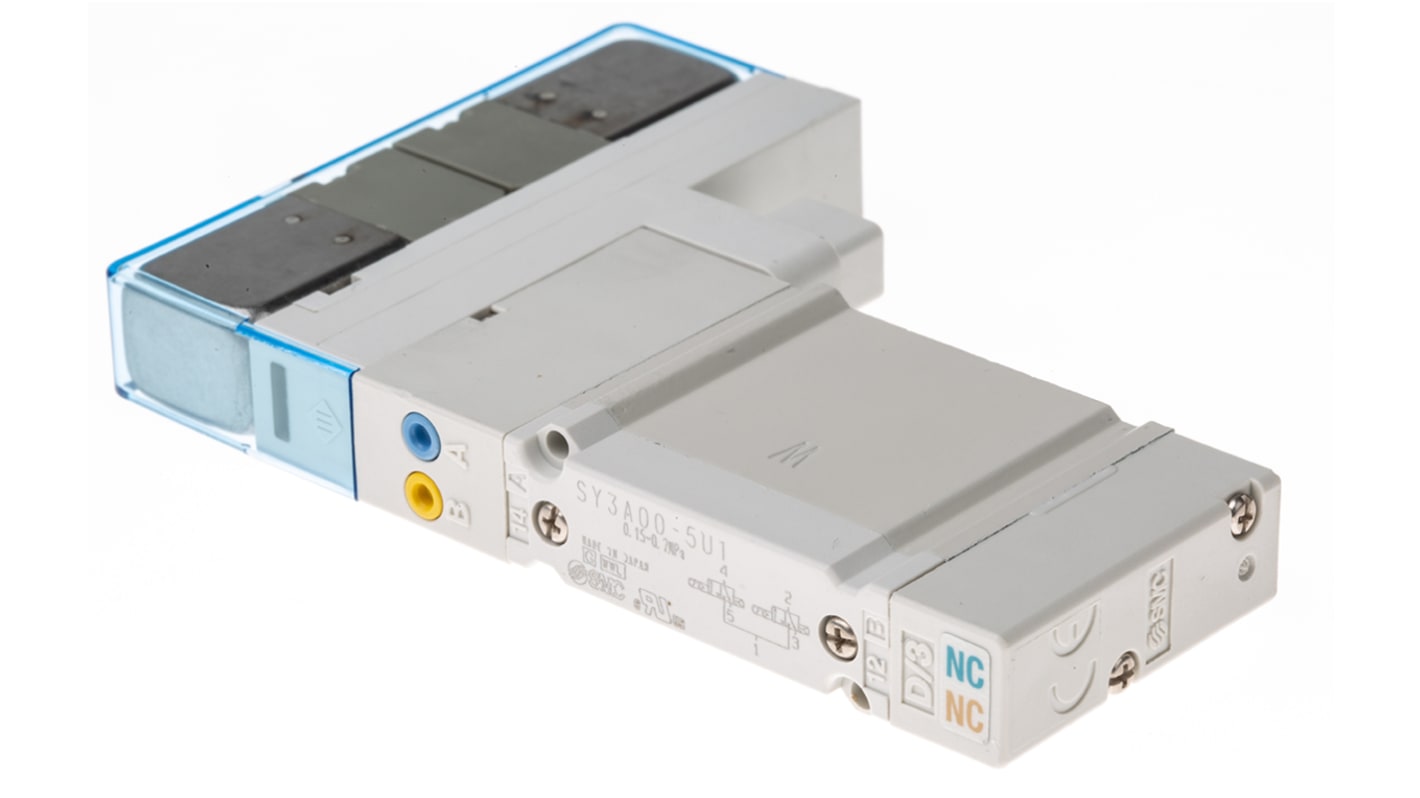

SMC Pneumatic Solenoid/Pilot-Operated Control Valve - Pilot Metric SY3000 Series

RS Stock No.:: 762-2076
Distrelec Article No.:: 304-02-221
Mfr. Part No.:: SY3A00-5U1-NA
Brand:: SMC

SMC Pneumatic Solenoid/Pilot-Operated Control Valve - Pilot Metric SY3000 Series

View all Pneumatic Solenoid Valves

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 762-2076
Distrelec Article No.:: 304-02-221
Mfr. Part No.:: SY3A00-5U1-NA
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Solenoid/Pilot-Operated Control Valve
	Port Size	M5
	Connection Thread Standard	Metric
	Actuation Type	Pilot
	Series	SY3000
	Seal Material	Nitrile Rubber (NBR)
	Mount Type	Base
	Number of Ports	5
	Body Material	Aluminium
	Maximum Operating Pressure	0.7 Mpa
	Minimum Operating Temperature	-10°C
	Maximum Flow Rate	276L/min
	Maximum Pilot Pressure	0.7MPa
	Minimum Pilot Pressure	0.1MPa
	Port Gender	Female
	Valve Function	NC
	Maximum Operating Temperature	50°C
	Length	97mm
	Standards/Approvals	No
	Height	80mm
	Width	40 mm
	Number of Positions	2

	Select all
	Brand SMC
	Product Type Pneumatic Solenoid/Pilot-Operated Control Valve
	Port Size M5
	Connection Thread Standard Metric
	Actuation Type Pilot
	Series SY3000
	Seal Material Nitrile Rubber (NBR)
	Mount Type Base
	Number of Ports 5
	Body Material Aluminium
	Maximum Operating Pressure 0.7 Mpa
	Minimum Operating Temperature -10°C
	Maximum Flow Rate 276L/min
	Maximum Pilot Pressure 0.7MPa
	Minimum Pilot Pressure 0.1MPa
	Port Gender Female
	Valve Function NC
	Maximum Operating Temperature 50°C
	Length 97mm
	Standards/Approvals No
	Height 80mm
	Width 40 mm
	Number of Positions 2

Series SY3000/5000/7000/9000 Body Ported Valve Single Unit Data Sheet

SMC SY3000 Series Pneumatic Solenoid/Pilot-Operated Control Valve, 24V DC Solenoid Voltage, 0.15MPa Minimum Operating Pressure - SY3A00-5U1-NA

This pneumatic solenoid/pilot-operated control valve is a precision component designed for various industrial applications. Constructed from die-cast zinc, it features a stand-alone mounting style, making it versatile for installation. The valve operates effectively with a solenoid voltage of 24V DC and maintains strong performance within a pressure range of 0.15 to 0.7 MPa, ensuring reliable operation across challenging environments.

Features & Benefits

• Designed for efficient pilot actuation, enhancing control

• Low-power solenoid valve with 0.4 W consumption

• Minimum operating temperature of -10°C ensures versatility

• Maximum operating temperature of +50°C provides resilience

• Robust die-cast zinc construction for durability

• Functions effectively in standard industrial pneumatic applications

Applications

• Used within automation systems for precise control

• Applicable in various pressure control settings

• Suitable for mechanical systems requiring reliable solenoid operation

• Utilised in pneumatic circuits for effective actuation

What is the significance of the solenoid voltage rating?

The 24V DC rating indicates compatibility with standard power supplies commonly used in automation, ensuring easy integration into existing systems. This voltage offers a balance between performance and safety, making it ideal for industrial settings.

How does the valve handle varying temperatures in usage scenarios?

With a minimum operating temperature of -10°C and a maximum of +50°C, it is designed to function reliably under diverse environmental conditions, making it suitable for applications ranging from chillers to heated systems.

What type of pressure is the valve capable of regulating effectively?

It can manage pressures ranging from 0.15 MPa to 0.7 MPa, aligning with typical requirements in pneumatic applications, thus providing flexibility in various operational environments.

How does the material of the valve impact its performance?

The die-cast zinc construction enhances structural integrity and longevity, providing resistance to wear and tear, which is crucial in maintaining performance over extended periods of use without frequent replacements.
