RS PRO 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 MDS Series 24V dc
- RS Stock No.:
- 784-0057
- Brand:
- RS PRO
23 In stock for same day dispatch
Price Each
Kr. 2 518,86
(exc. VAT)
Kr. 3 148,58
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 2 518,86 |
| 5 + | Kr. 2 440,76 |
- RS Stock No.:
- 784-0057
- Brand:
- RS PRO
- COO (Country of Origin):
- HU

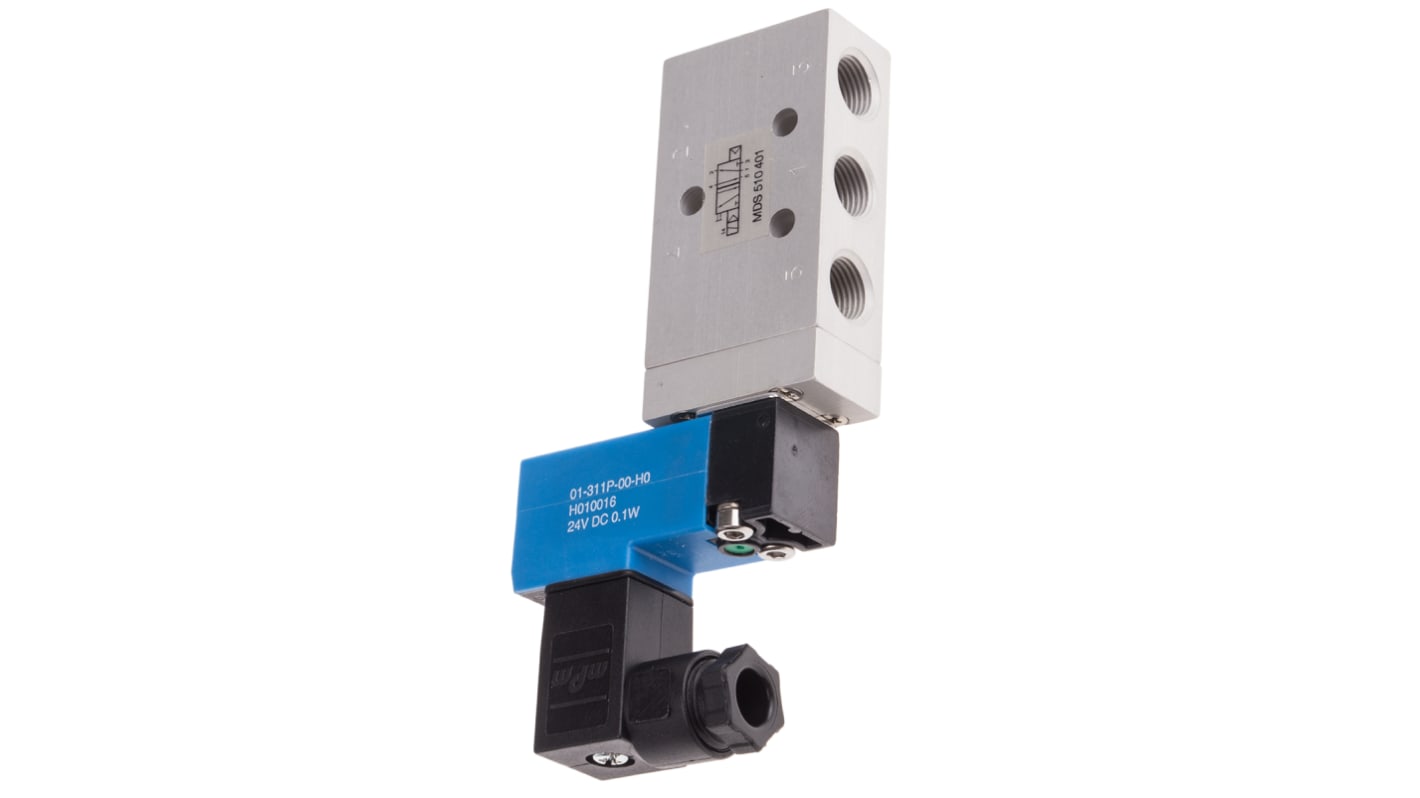

RS PRO 5/2 Pneumatic Solenoid Valve - Solenoid/Spring, G 1/8 MDS Series, 24 V DC
This RS PRO solenoid valve allows you to turn airflow on or off with an electrical signal, removing the need for pneumatic or manual control. The internal solenoid coil will automatically open or close the valve when you apply a current to it, reducing the risk of operational errors and streamlining valve control.
This unit is freestanding, giving you flexibility in where you install it, as the component doesn't rely on the rest of the pneumatic structure for support. The five-port, two-position valve configuration allows airflow in one direction while keeping one available for exhaust.
The valve has Atmosphere Explosive (ATEX) approval, meaning it's intrinsically safe and won't ever create a spark or heat up to an ignition temperature. This means you can safely use it in areas with potentially explosive atmospheres.
This unit is freestanding, giving you flexibility in where you install it, as the component doesn't rely on the rest of the pneumatic structure for support. The five-port, two-position valve configuration allows airflow in one direction while keeping one available for exhaust.
The valve has Atmosphere Explosive (ATEX) approval, meaning it's intrinsically safe and won't ever create a spark or heat up to an ignition temperature. This means you can safely use it in areas with potentially explosive atmospheres.
Features and Benefits
• Solenoid/Spring actuation type
• G 1/8 connection port thread
• ATEX hazardous area certification
• Maximum flow rate of 450 L/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature of -10°C to +50°C
• Freestanding mounting style
• Solenoid fitted
• Solenoid power consumption of 1 W
• Solenoid voltage of 24 V DC
• G 1/8 connection port thread
• ATEX hazardous area certification
• Maximum flow rate of 450 L/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature of -10°C to +50°C
• Freestanding mounting style
• Solenoid fitted
• Solenoid power consumption of 1 W
• Solenoid voltage of 24 V DC
Attribute | Value |
|---|---|
| Function | 5/2 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Spring |
| Manufacturer Series | MDS |
| Mounting Style | Free standing |
| Solenoid Voltage | 24V dc |
| Solenoid Fitted | Yes |
| Number of Ports | 5/2 |
| Maximum Flow Rate | 450L/min |
| Solenoid Power Consumption | 1W |
| Minimum Operating Pressure | 2bar |
| Hazardous Area Certification | ATEX |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Pressure | 10bar |
| Maximum Operating Temperature | +50°C |
| Thread Size | 1/8in |
| Thread Standard | G |
- RS Stock No.:
- 784-0057
- Brand:
- RS PRO
- COO (Country of Origin):
- HU
RS PRO 5/2 Pneumatic Solenoid Valve - Solenoid/Spring, G 1/8 MDS Series, 24 V DC
This RS PRO solenoid valve allows you to turn airflow on or off with an electrical signal, removing the need for pneumatic or manual control. The internal solenoid coil will automatically open or close the valve when you apply a current to it, reducing the risk of operational errors and streamlining valve control.
This unit is freestanding, giving you flexibility in where you install it, as the component doesn't rely on the rest of the pneumatic structure for support. The five-port, two-position valve configuration allows airflow in one direction while keeping one available for exhaust.
The valve has Atmosphere Explosive (ATEX) approval, meaning it's intrinsically safe and won't ever create a spark or heat up to an ignition temperature. This means you can safely use it in areas with potentially explosive atmospheres.
This unit is freestanding, giving you flexibility in where you install it, as the component doesn't rely on the rest of the pneumatic structure for support. The five-port, two-position valve configuration allows airflow in one direction while keeping one available for exhaust.
The valve has Atmosphere Explosive (ATEX) approval, meaning it's intrinsically safe and won't ever create a spark or heat up to an ignition temperature. This means you can safely use it in areas with potentially explosive atmospheres.
Features and Benefits
• Solenoid/Spring actuation type
• G 1/8 connection port thread
• ATEX hazardous area certification
• Maximum flow rate of 450 L/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature of -10°C to +50°C
• Freestanding mounting style
• Solenoid fitted
• Solenoid power consumption of 1 W
• Solenoid voltage of 24 V DC
• G 1/8 connection port thread
• ATEX hazardous area certification
• Maximum flow rate of 450 L/min
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Operating temperature of -10°C to +50°C
• Freestanding mounting style
• Solenoid fitted
• Solenoid power consumption of 1 W
• Solenoid voltage of 24 V DC
Attribute | Value |
|---|---|
| Function | 5/2 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Spring |
| Manufacturer Series | MDS |
| Mounting Style | Free standing |
| Solenoid Voltage | 24V dc |
| Solenoid Fitted | Yes |
| Number of Ports | 5/2 |
| Maximum Flow Rate | 450L/min |
| Solenoid Power Consumption | 1W |
| Minimum Operating Pressure | 2bar |
| Hazardous Area Certification | ATEX |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Pressure | 10bar |
| Maximum Operating Temperature | +50°C |
| Thread Size | 1/8in |
| Thread Standard | G |
