Prysmian 2+E Core Power Cable, 1 mm², 100m, Grey PVC Sheath, Twin & Earth, 15 A, 500 V
- RS Stock No.:
- 493-9788
- Mfr. Part No.:
- 20144972
- Brand:
- Prysmian
3 In stock for same day dispatch
Added
Price 1 Reel of 100 Metre(s)
Kr. 1 476,31
(exc. VAT)
Kr. 1 845,39
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | Kr. 1 476,31 | Kr. 14,763 |
| 5 + | Kr. 1 402,50 | Kr. 14,025 |
| *price indicative | ||
- RS Stock No.:
- 493-9788
- Mfr. Part No.:
- 20144972
- Brand:
- Prysmian
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

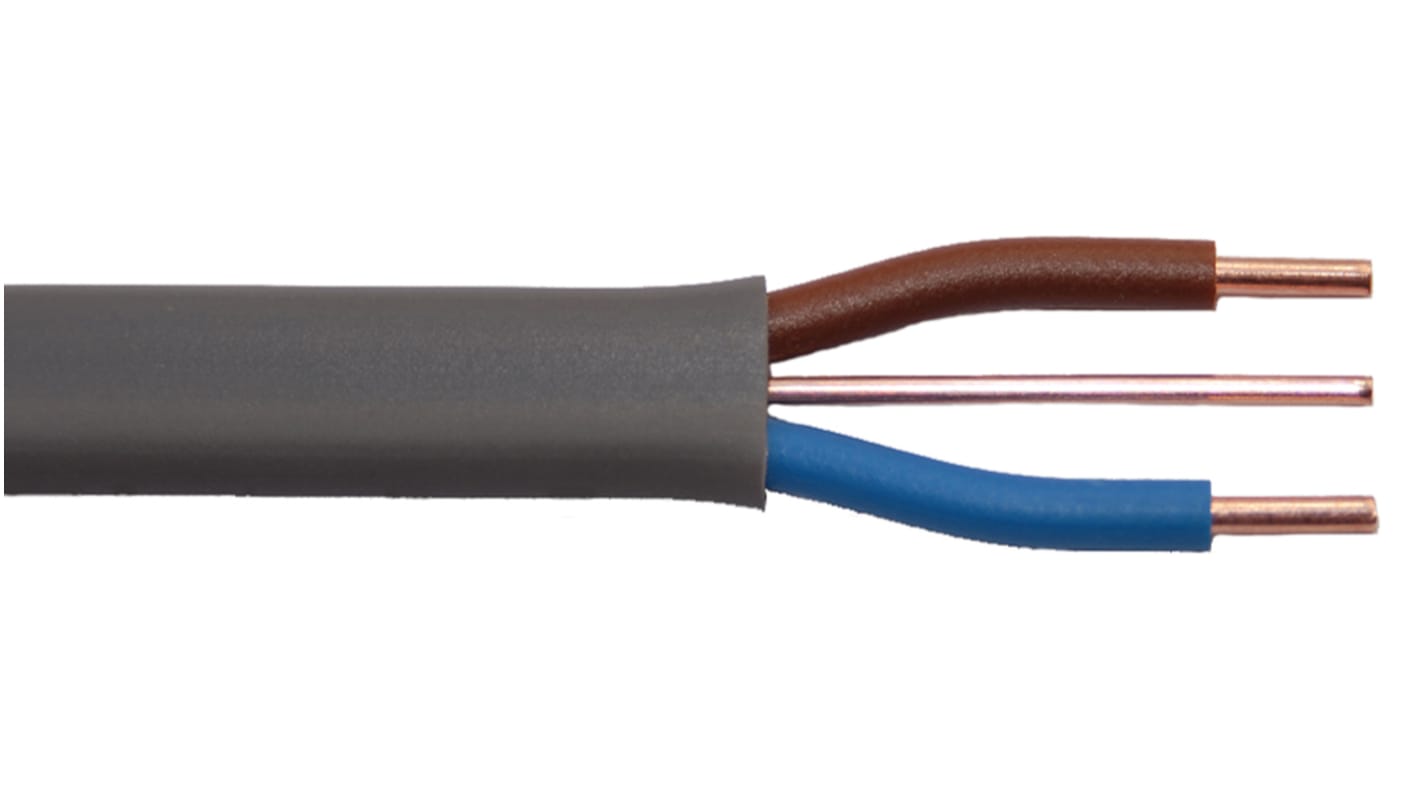

Twin and Earth Cable
A rigid twin and earth cable with excellent fire resistance designed for use in fixed installations. The cables have BASEC approval which is the main standard for PVC cable used in UK buildings. They can be used internally in dry or damp areas, in channels, embedded in plaster or on boards or trays. The PVC sheath allows for quick and easy installation and allows for the cable to withstand mechanical stresses.
Features and Benefits
• Temperature range: -15 °C to +70 °C
• Bending radius r-4D
• Medium mechanical impact
• Fire performance BSEN50265-2-1
• Rigid
• Low voltage 300/500 V
Product Application Information
Ideal for use in domestic and commercial premises for circuit wiring. Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
Standards
BSEN50265-2-1
Approvals
BS6004
Standards
BS6004
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1 mm² |
| Number of Cores | 2+E |
| Sheath Colour | Grey |
| Length | 100m |
| Cable Type | Twin & Earth |
| Current Rating | 15 A |
| Outer Diameter | 4.5 x 10.7mm |
| Sheath Material | PVC |
| Voltage Rating | 500 V |
| Conductor Strand Type | Solid |
| Standards Met | BASEC |
| Minimum Operating Temperature | -15°C |
| Insulation Material | PVC |
| Conductor Resistance | 18.1 Ω/km |
| American Wire Gauge | 17 AWG |
| Maximum Operating Temperature | +70°C |
| Conductor Material | Annealed Copper |
