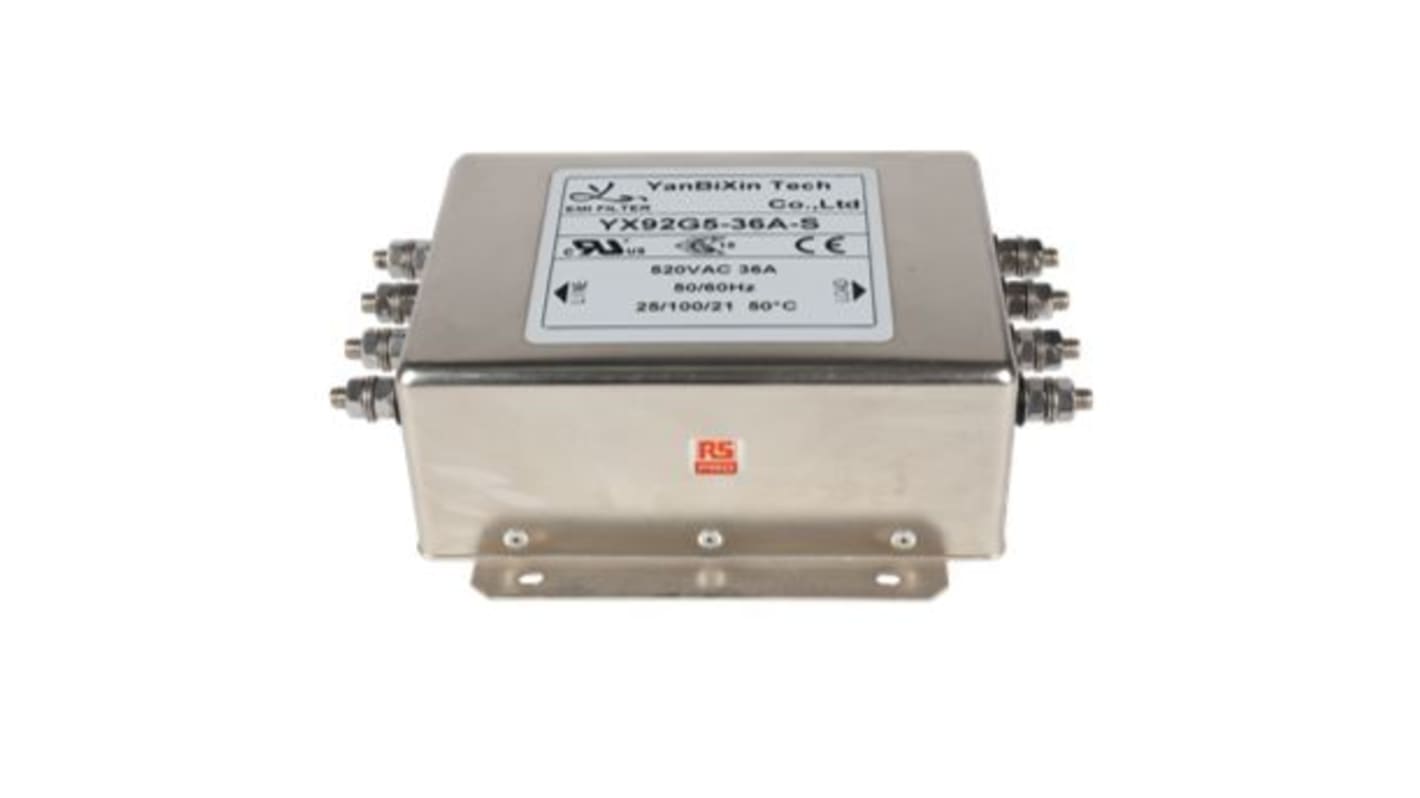

RS PRO 36A 300/520 V ac 50/60Hz, Chassis Mount Power Line Filter, Screw 3 Phase

RS Stock No.:: 237-8774
Brand:: RS PRO

RS PRO 36A 300/520 V ac 50/60Hz, Chassis Mount Power Line Filter, Screw 3 Phase

Subtotal (1 box of 15 units)**

Kr. 18 379,50

(exc. VAT)

Kr. 22 974,30

(inc. VAT)

15 In stock for same day dispatch*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Check stock levels

Units	Per unit	Per Box**
15 +	Kr. 1 225,30	Kr. 18 379,50

**price indicative

RS Stock No.:: 237-8774
Brand:: RS PRO

RS PRO Datasheet

RS PRO Power Line Filter

This range of RS PRO Power Line Filters have been designed with the highest quality and versatility in mind, which is a compact component that can be connected to electrical devices to prevent external radio frequencies from impairing performance.

This power line filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits, and nearby lightning strikes.
This RS PRO filter is available with fuse holder for two (5*20mm) fuses (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing. There are a variety of parts and combinations to meet different customer's EMC tests.

Features and Benefits

Rated currents up to 10A

Quick connect (6.3*0.8mm)

There are a variety of parts and combinations to meet different customer's EMC tests

Customized products according to customer's requirementss

Applications

These RS PRO Power Line Filters can ensure equipment runs safely and reliably by Preventing interference, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great size for small and medium-sized machines and household equipment and is a good way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Also available for purchase in a pack size of 1. Please see RS 237-8775

Attribute	Value
Maximum Current Rating	36A
Maximum Voltage Rating	300/520 V ac
Mounting Type	Chassis Mount
Termination Style	Screw
Number of Phases	3
Number of Stages	Two Stage
Operating Frequency	50/60Hz
Length	150
Depth	105
Capacitance	1.0µF
Height	60
Inductance	4*0.6mH
Dimensions	15010560mm
Minimum Operating Temperature	-25°C
Leakage Current	4.6/7.1mA
Maximum Operating Temperature	+100°C
Resistance	470kΩ
