Units	Per unit
1 - 4	Kr. 199,51
5 - 9	Kr. 189,45
10 - 24	Kr. 179,61
25 +	Kr. 169,54

Select all	Attribute	Value
	Brand	EPCOS
	Maximum Current Rating	3A
	Maximum Voltage Rating	250 V ac/dc
	Mounting Type	Flange Mount
	Termination Style	Tab
	Number of Phases	1
	Series	B84111F
	Number of Stages	Single Stage
	Operating Frequency	60Hz
	Length	64mm
	Depth	60.6mm
	Height	26mm
	Capacitance	0.1 x 2 μF, 4700 x 2pF
	Inductance	1.5 x 2 mH
	Dimensions	64 x 60.6 x 26mm
	Leakage Current	0.369 mA
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+100°C
	Standards Met	UL 1283

	Select all
	Brand EPCOS
	Maximum Current Rating 3A
	Maximum Voltage Rating 250 V ac/dc
	Mounting Type Flange Mount
	Termination Style Tab
	Number of Phases 1
	Series B84111F
	Number of Stages Single Stage
	Operating Frequency 60Hz
	Length 64mm
	Depth 60.6mm
	Height 26mm
	Capacitance 0.1 x 2 μF, 4700 x 2pF
	Inductance 1.5 x 2 mH
	Dimensions 64 x 60.6 x 26mm
	Leakage Current 0.369 mA
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +100°C
	Standards Met UL 1283

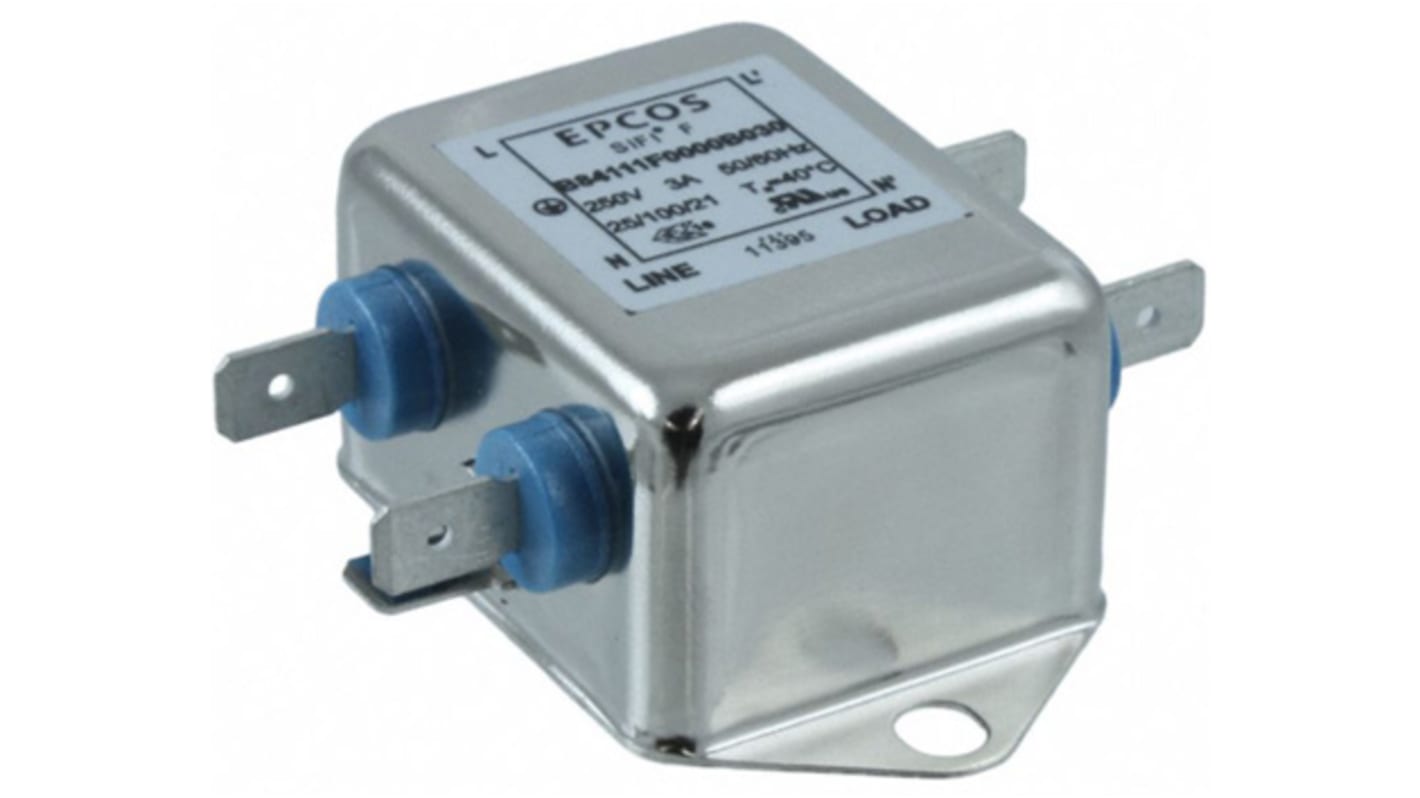

EPCOS, B84111F 3A 250 V ac/dc 60Hz, Flange Mount EMC Filter, Tab, Single Phase
