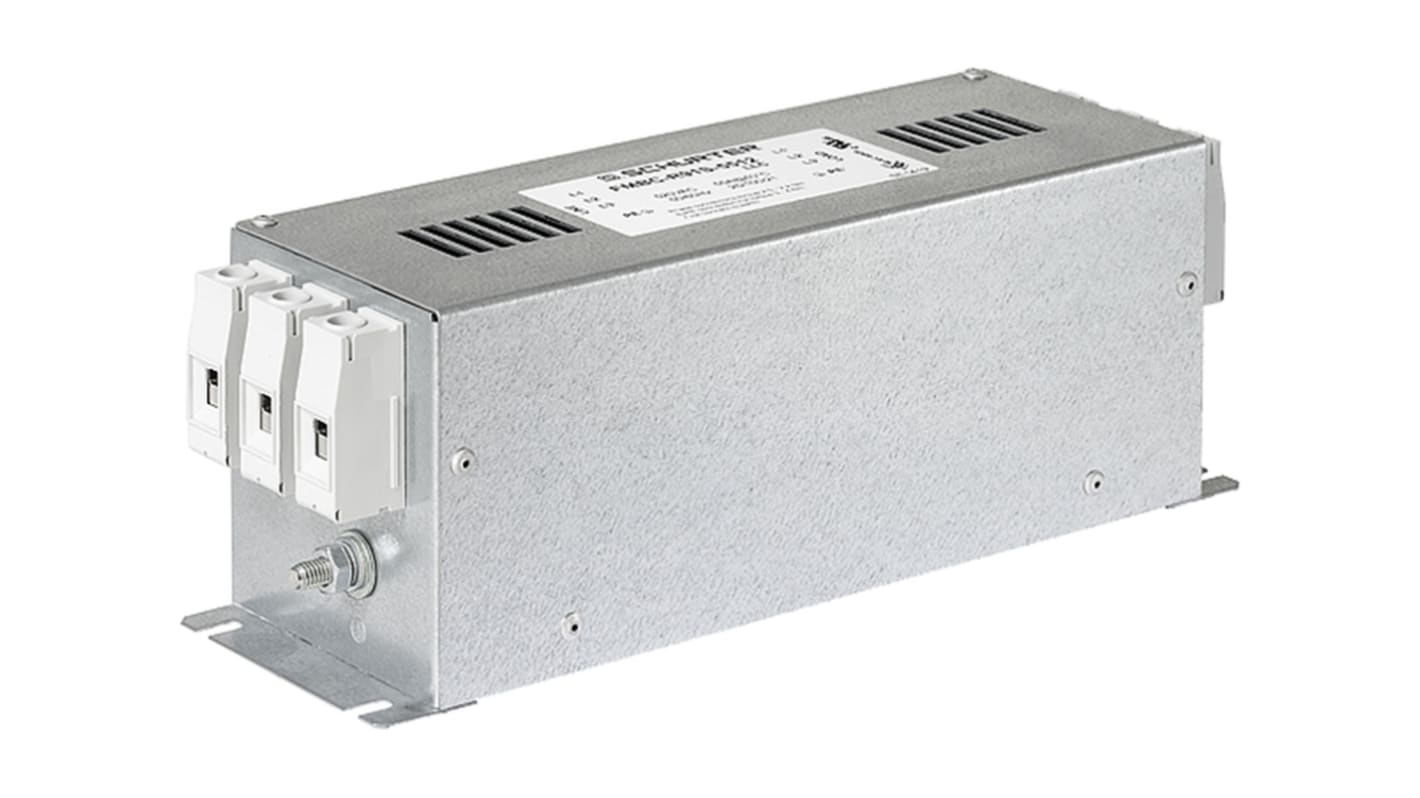

Schurter, FMBC LL 30A 520 V ac 50 → 60Hz, Chassis Mount RFI Filter, Screw 3 Phase
- RS Stock No.:
- 862-4430
- Mfr. Part No.:
- FMBC-R91Q-3012
- Brand:
- Schurter
2 In stock for same day dispatch
Added
Price Each
Kr. 4 315,24
(exc. VAT)
Kr. 5 394,05
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 4 315,24 |
| 5 - 9 | Kr. 4 142,59 |
| 10 + | Kr. 3 970,05 |
- RS Stock No.:
- 862-4430
- Mfr. Part No.:
- FMBC-R91Q-3012
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
Product Details
FMBC LL Series
FMBC LL Series are 2-stage filters for 3-phase systems with low leakage current
Suitable for applications with RCDs; Protection against interference voltage from the mains
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems and Inverters
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems and Inverters
Specifications
Attribute | Value |
|---|---|
| Maximum Current Rating | 30A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | FMBC LL |
| Number of Stages | Two Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 275mm |
| Depth | 50mm |
| Height | 85mm |
| Dimensions | 275 x 85 x 50mm |
| Leakage Current | 4.4 A |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Power Loss | 6.6W |
