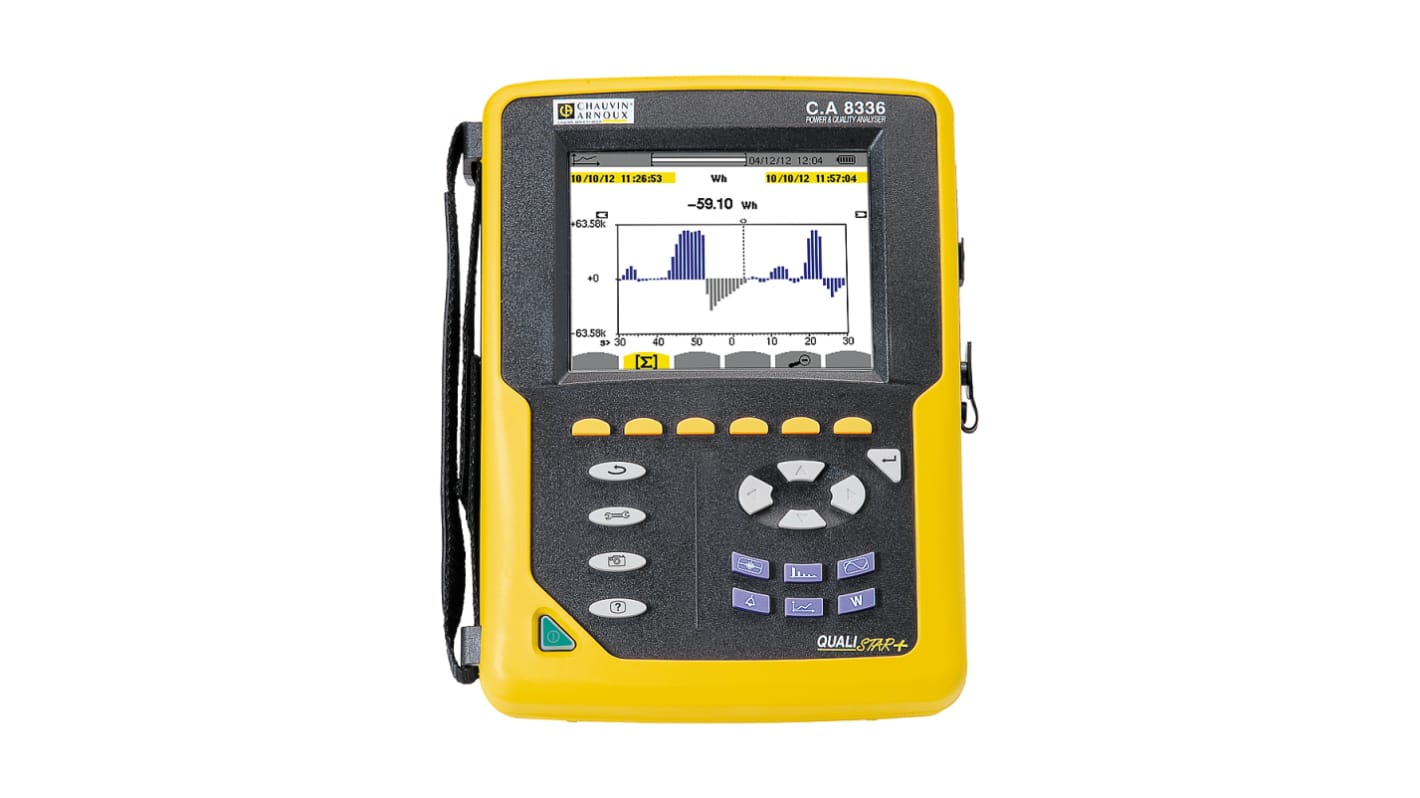

    Chauvin Arnoux CA8336 Power Quality Analyser, 1, 3-Phase, 10000A ac Max, 1000 V ac, 1200V dc Max

    View this category

    Subtotal (1 unit)*

    Kr.55 987 36

    (exc. VAT)

    Kr.69 984 20

    (inc. VAT)

    Add to Basket
    Select or type quantity
    In Stock
    • 5 unit(s) ready to ship from another location
    Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
    Units
    Per unit
    1 +Kr. 55 987,36

    *price indicative

    RS Stock No.:
    799-9067
    Distrelec Article No.:
    302-57-549
    Mfr. Part No.:
    P01160591
    Brand:
    Chauvin Arnoux
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Chauvin Arnoux

    Absolute Maximum Current Measurement

    10000 A ac, 5000 A dcA ac

    Absolute Maximum Power Measurement

    10 MW, 10 MVAR, 10 MVAmW

    Number of Phases

    1, 3

    Maximum Voltage

    1000 V ac, 1200V dc

    Best Voltage Measurement Accuracy

    ±(0.5 % + 200 mV)

    Best Current Measurement Accuracy

    ±(0.5 % + 2 mA)

    Display Type

    Colour, TFT LCD

    Measurement Type

    Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Tan, Transients, Unbalance, Voltage

    Measurement Standards

    EN50160, IEC 61000-4-30

    Interface Type

    USB

    Power Source

    Battery, Mains

    Battery Type

    Rechargeable NiMH

    Battery Life

    13 h

    Model Number p

    CA8336

    Width

    180mm

    Weight

    1.9kg

    Maximum Operating Temperature

    +50°C

    Height

    55mm

    Minimum Operating Temperature

    0°C

    Dimensions

    240 x 180 x 55mm

    Length

    240mm

    Maximum Frequency

    70Hz

    Minimum Frequency

    40 Hz
