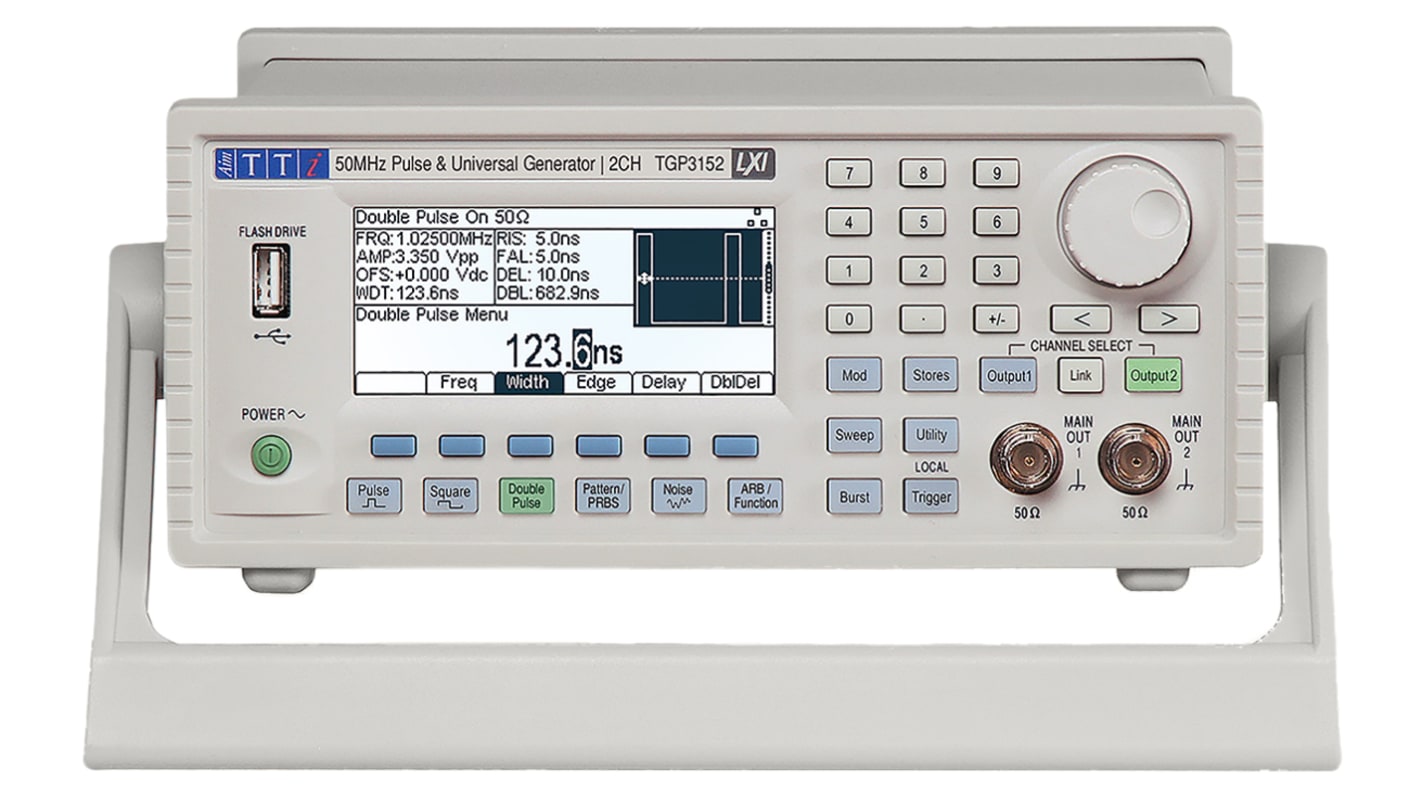

Aim-TTi TGP3151 Pulse Generator, 1 mHz min, 25 (Double Pulse) MHz, 50 (Pulse) MHz max, With RS Calibration
- RS Stock No.:
- 112-0958
- Mfr. Part No.:
- TGP3151
- Brand:
- Aim-TTi
2 In stock for delivery within 3-5 working days
Not available for next day delivery
Price Each
Kr. 19 425,00
(exc. VAT)
Kr. 24 281,25
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 19 425,00 |
- RS Stock No.:
- 112-0958
- Mfr. Part No.:
- TGP3151
- Brand:
- Aim-TTi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Aim-TTi Pulse Generator, 10 kO Input Impedance, 1 Channel - 59120-5340
This pulse generator by Aim-TTi is a versatile and advanced piece of equipment designed for applications in areas such as automation, electronics, electrical, and mechanical industries. With adjustable output amplitude and high frequencies, it offers precise and reliable performance for various applications.
Features & Benefits
• Adjustable output amplitude for precise control
• High frequency capability for applications requiring fast pulses
• Pulse width modulation for flexible waveform generation
• Triggered burst mode for specific pulse sequencing
• Compact design for both benchtop and rack mount applications
• High frequency capability for applications requiring fast pulses
• Pulse width modulation for flexible waveform generation
• Triggered burst mode for specific pulse sequencing
• Compact design for both benchtop and rack mount applications
Applications
• Used for stress testing designs requiring defined jitter and delay
• Ideal for clock frequency simulation with glitch-free parameter changes
• Suitable for creating data sequencing patterns for serial data testing
• Efficient for asynchronous pulse signal conditioning
• Helps in Op Amp slew rate and asymmetrical characterisation
• Ideal for clock frequency simulation with glitch-free parameter changes
• Suitable for creating data sequencing patterns for serial data testing
• Efficient for asynchronous pulse signal conditioning
• Helps in Op Amp slew rate and asymmetrical characterisation
Can it be used for clock frequency simulation applications?
Yes, it is ideal for simulating clock frequencies with glitch-free changes in pulse parameters.
Will it assist in stress testing designs?
Yes, it is designed for stress testing designs with defined jitter and delay requirements.
Is it suitable for data sequencing patterns?
Yes, it can efficiently generate data sequencing patterns for serial data testing applications.
Can it be used for signal conditioning?
Yes, it is suitable for asynchronous pulse signal conditioning purposes.
Is it helpful in Op Amp slew rate measurements?
Yes, it facilitates Op Amp slew rate and asymmetrical characterisation tasks.
Specifications
Attribute | Value |
|---|---|
| Maximum Frequency | 25 (Double Pulse) MHz, 50 (Pulse) MHz |
| Minimum Frequency | 1 mHz |
| Maximum Pulse Width | 499.99999999 (Double Pulse) s, 999.99999999 (Pulse) s |
| Modes | Burst, Double Pulse, Function/Arbitrary, Modulation, Noise, Pattern/PBRS, Pulse, Square, Sweep, Triggered |
| Minimum Pulse Width | 10ns |
| Maximum Pulse Delay | 999.99999996 (Double Pulse) s, 999.99999998 (Pulse) s |
| Minimum Pulse Delay | 0ns |
| Adjustable Output Amplitude | Yes |
| Calibrated | RSCAL |
| Jitter | <30% |
| Rise - Fall Time | 5 ns → 399.999999989 s (Double Pulse), 5 ns → 799.999999989 s (Pulse) |
| Input Impedance | 10 kΩ |
| Interface Type | GPIB, LAN, LXI, Remote, USB 2.0, USB Flash Drive |
| Dimensions | 269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top Mount) mm |
| Length | 269 (Rack Mount) mm, 295 (Bench Top Mount) mm |
| Weight | 3.2kg |
| Model Number p | TGP3151 |
| Height | 86.5 (Rack Mount) mm, 97 (Bench Top Mount) mm |
| Minimum Operating Temperature | +5°C |
| Width | 213.5 (Rack Mount) mm, 250 (Bench Top Mount) mm |
| Maximum Operating Temperature | +40°C |
