Eaton M22 Series White Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

RS Stock No.:: 272-2277
Mfr. Part No.:: 216979 M22-DLH-W-X0
Brand:: Eaton

Eaton M22 Series White Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

Subtotal (1 unit)*

Kr. 187,18

(exc. VAT)

Kr. 233,98

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Stocked by manufacturer

Ready to ship from 04 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 187,18

*price indicative

RS Stock No.:: 272-2277
Mfr. Part No.:: 216979 M22-DLH-W-X0
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Series	M22
	Product Type	Push Button Actuator
	Cutout Diameter	22.5mm
	Push Button Colour	White
	Push Button Shape	Round
	Push Button Actuation	Momentary Spring Return
	Push Button Style	Extended
	Push Button Material	Plastic
	IP Rating	IP66, IP67, IP69K
	Push Button Marking	Labelled
	Push Button Diameter	29.7mm
	Standards/Approvals	UL, IEC/EN 60947-5, VDE 0660, CSA, CE
	Hazardous Area Certification	No

	Select all
	Brand Eaton
	Series M22
	Product Type Push Button Actuator
	Cutout Diameter 22.5mm
	Push Button Colour White
	Push Button Shape Round
	Push Button Actuation Momentary Spring Return
	Push Button Style Extended
	Push Button Material Plastic
	IP Rating IP66, IP67, IP69K
	Push Button Marking Labelled
	Push Button Diameter 29.7mm
	Standards/Approvals UL, IEC/EN 60947-5, VDE 0660, CSA, CE
	Hazardous Area Certification No

RoHS Status: Exempted

COO (Country of Origin):: DE

Eaton Push Button Actuator, IP66, IP67, IP69K, White - 216979 M22-DLH-W-X0

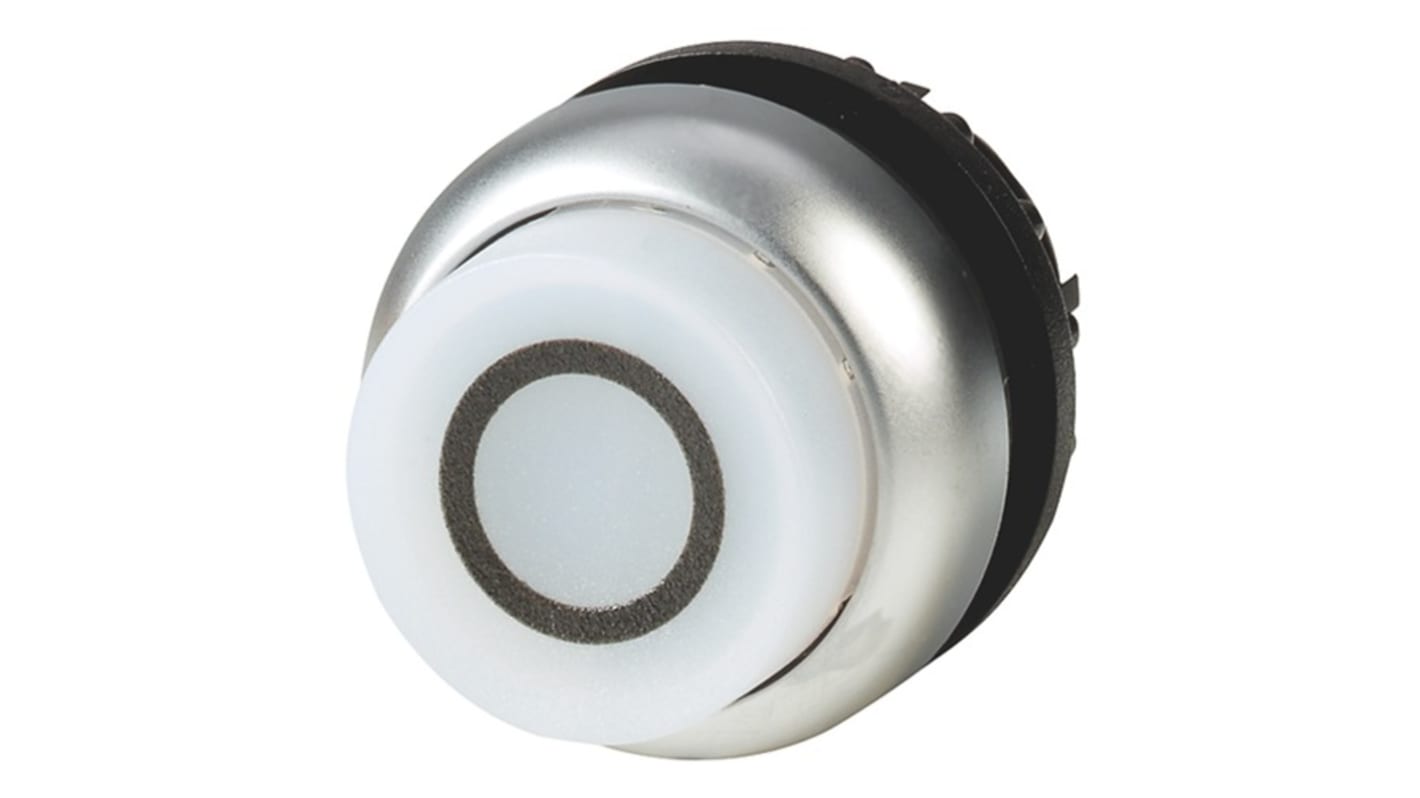

This push-button actuator is an illuminated, extended white control element designed for panel applications where a momentary spring-return actuation is required. It provides a labelled operator Interface with a high front element suitable for environments demanding ingress protection and compatibility with smartwire-DT connections.

Features and Benefits:

• IP66/IP67/IP69K protection for harsh-environment sealing
• Momentary spring-return actuation for short-time signalling
• 5N actuation force for consistent operator feel
• 3600 operations/h rated for frequent use
• Mechanical life of 5,000,000 operations for long service life

Applications

• Suitable for operator panels requiring labelled indicators
• Used for control stations with smartwire-DT integration
• Can be used in outdoor enclosures rated NEMA 4X
• Used with automation switchgear requiring IEC 60947-5 compliance

What cut-out size is required for panel mounting?

The actuator fits a 22.5 mm opening.

Which approvals cover electrical and safety standards?

Certification includes UL, CE, CSA and IEC/EN 60947-5 approvals.

What material and colour is the actuator element?

The front element is white plastic.

How is bezel appearance specified for control panels?

The bezel is titanium-coloured and MADE from plastic.

What temperature range can it operate within?

It operates between −25 °C and 70 °C.
