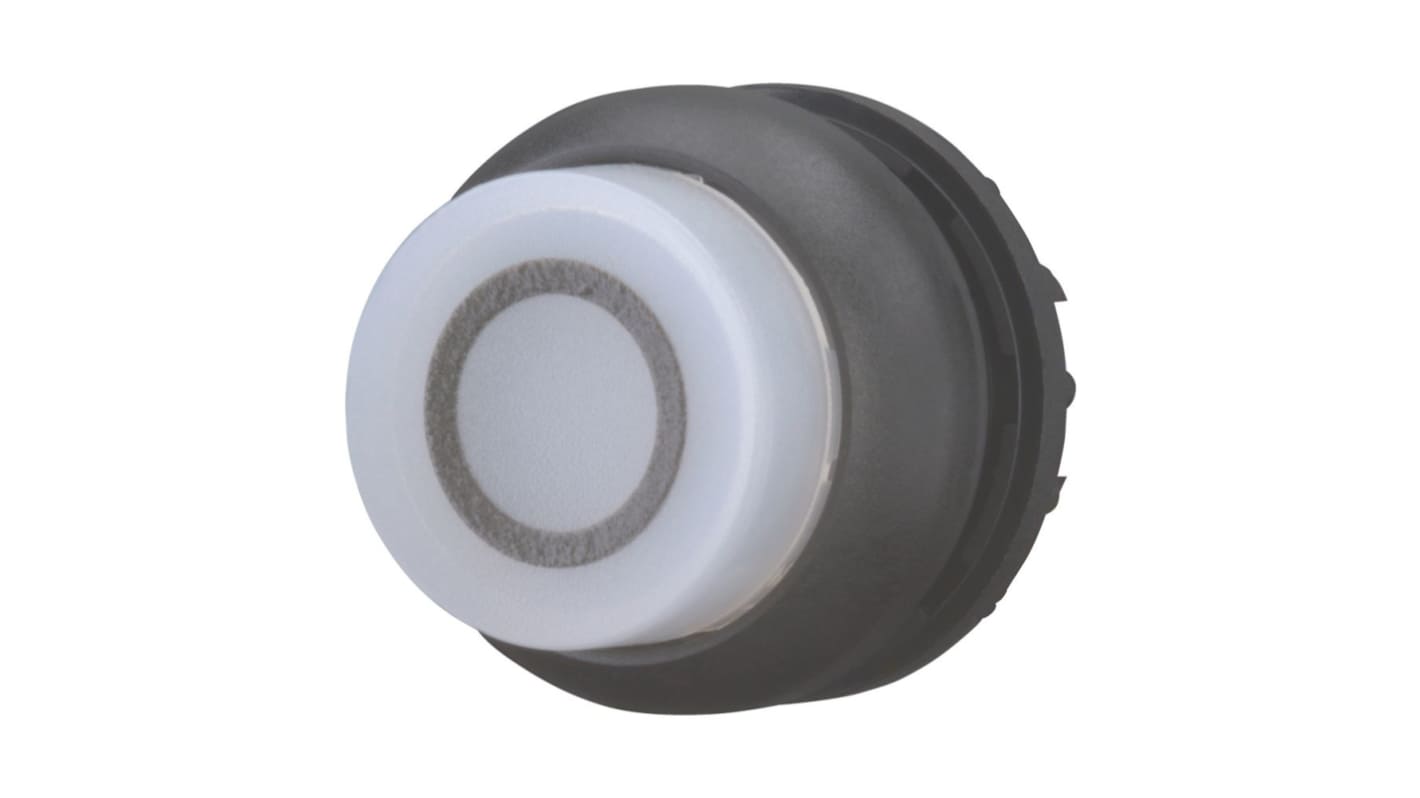

Eaton M22 Series Illuminated Illuminated Push Button, Momentary, Threaded, 22.5 mm Cutout, White LED, IP67, IP66, IP69K
- RS Stock No.:
- 251-394
- Mfr. Part No.:
- 216980 M22S-DLH-W-X0
- Brand:
- Eaton
Subtotal (1 unit)*
Kr.178 46
(exc. VAT)
Kr.223 08
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 26. februar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 178,46 |
*price indicative
- RS Stock No.:
- 251-394
- Mfr. Part No.:
- 216980 M22S-DLH-W-X0
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Switch Operation | Momentary | |
| Product Type | Illuminated Push Button | |
| Actuator Colour | White | |
| Illuminated | Yes | |
| Series | M22 | |
| Panel Cutout Size | 22.5 mm | |
| Mount Type | Threaded | |
| LED Colour | White | |
| IP Rating | IP67, IP66, IP69K | |
| Actuator Style | Push Button | |
| Contact AC Voltage | 24V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 30mm | |
| Standards/Approvals | CE, VDE 0660, UL File No.: E29184, UL Category Control No.: NKCR, UL 508, UL, LR, IEC/EN 60947-5, IEC/EN 60947, DNV GL, CSA File No.: 012528, CSA CSA-C22.2 No. 14-05, CSA Class No.: 3211-03, CSA-C22.2 No. 94-91 | |
| Width | 30 mm | |
| Height | 35mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Switch Operation Momentary | ||
Product Type Illuminated Push Button | ||
Actuator Colour White | ||
Illuminated Yes | ||
Series M22 | ||
Panel Cutout Size 22.5 mm | ||
Mount Type Threaded | ||
LED Colour White | ||
IP Rating IP67, IP66, IP69K | ||
Actuator Style Push Button | ||
Contact AC Voltage 24V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 30mm | ||
Standards/Approvals CE, VDE 0660, UL File No.: E29184, UL Category Control No.: NKCR, UL 508, UL, LR, IEC/EN 60947-5, IEC/EN 60947, DNV GL, CSA File No.: 012528, CSA CSA-C22.2 No. 14-05, CSA Class No.: 3211-03, CSA-C22.2 No. 94-91 | ||
Width 30 mm | ||
Height 35mm | ||
RoHS Status: Exempted
- COO (Country of Origin):
- DE
The Eaton Pushbutton Actuator is illuminated. It is inscribed. It comes without the button plate. It is fitted with a front ring. It operates between an ambient temperature range of -25 °C to 70 °C.
Black bezel colour
Plastic construction
IP67 and IP69K rated
