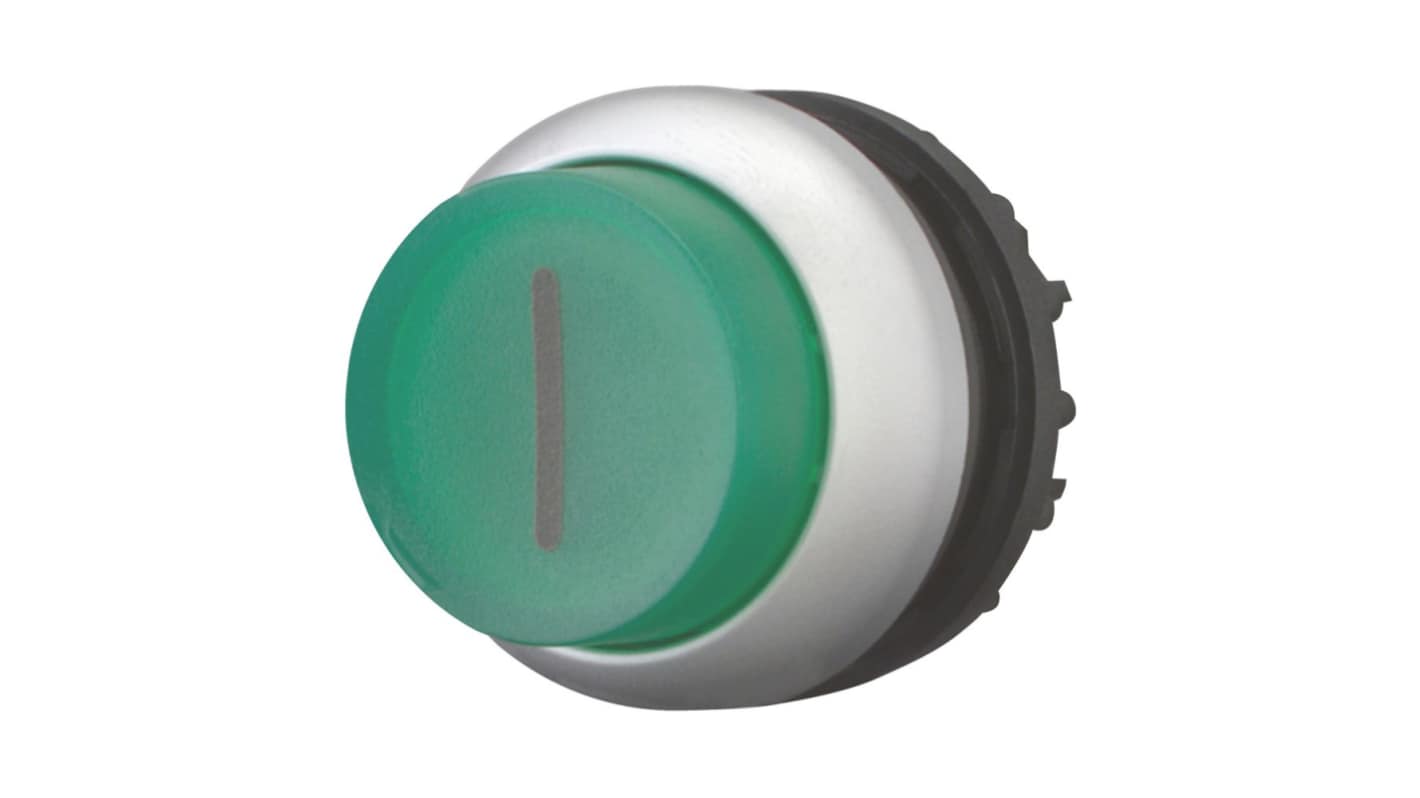

Eaton M22 Series Illuminated Illuminated Push Button, Momentary, Screw, 22.5 mm Cutout, Green LED, IP66, IP67, IP69K

RS Stock No.:: 251-392
Mfr. Part No.:: 216977 M22-DLH-G-X1
Brand:: Eaton

Eaton M22 Series Illuminated Illuminated Push Button, Momentary, Screw, 22.5 mm Cutout, Green LED, IP66, IP67, IP69K

Subtotal (1 pack of 5 units)*

Kr. 926,64

(exc. VAT)

Kr. 1 158,30

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Stocked by manufacturer

Ready to ship from 14 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)	Per Pack	Per unit*
1 +	Kr. 926,64	Kr. 185,328

*price indicative

RS Stock No.:: 251-392
Mfr. Part No.:: 216977 M22-DLH-G-X1
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Switch Operation	Momentary
	Actuator Colour	Green
	Product Type	Illuminated Push Button
	Illuminated	Yes
	Panel Cutout Size	22.5 mm
	Series	M22
	Mount Type	Screw
	LED Colour	Green
	IP Rating	IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Actuator Style	Extended
	Maximum Operating Temperature	70°C
	Switch Configuration	Momentary
	Standards/Approvals	CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, UL, UL508, VDE 0660
	Length	30mm
	Height	35mm
	Width	30mm
	Legend	Inscribed

	Select all
	Brand Eaton
	Switch Operation Momentary
	Actuator Colour Green
	Product Type Illuminated Push Button
	Illuminated Yes
	Panel Cutout Size 22.5 mm
	Series M22
	Mount Type Screw
	LED Colour Green
	IP Rating IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Actuator Style Extended
	Maximum Operating Temperature 70°C
	Switch Configuration Momentary
	Standards/Approvals CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, UL, UL508, VDE 0660
	Length 30mm
	Height 35mm
	Width 30mm
	Legend Inscribed

RoHS Status: Exempted

COO (Country of Origin):: DE

Eaton Illuminated Push Button, Green LED, 22.5mm Panel Cut-out Size - 216977 M22-DLH-G-X1

This illuminated push button provides a momentary spring-return control with an extended actuator and inscribed legend for clear operator feedback. Designed for panel mounting, it offers protected front-side sealing suitable for harsh environments and supports connection to SmartWire‑DT via SWD‑RMQ connections. The device is certified to multiple international standards and is intended for industrial control and signalling tasks.

Features and Benefits:

• IP66/IP67/IP69K ingress protection enables washdown environments
• Green LED illumination provides visible signalling for operators
• 5N actuating force ensures consistent tactile response
• Rated for -25°C to 70°C continuous operation
• Mechanical life of 5,000,000 operations supports high-cycle use

Applications

• Suitable for control panels requiring waterproof components
• Used with SmartWire‑DT enabled switchgear communications
• Ideal for machinery operator stations with frequent use
• Can be used for marine and offshore control panels
• Suitable for hygienic washdown environments in processing plants

What mounting aperture is required for installation?

A 22.5mm panel cut-out is specified for correct mounting.

Which approvals cover electrical and safety standards?

It carries CE, IEC/EN 60947/60947‑5, UL508, CSA and VDE 0660 approvals.

How does the device perform under thermal stress?

Climatic testing includes damp heat cyclic and constant per IEC 60068‑2‑30 and IEC 60068‑2‑78.

What material and colour options are specified for the bezel?

The bezel is plastic in a titanium colour finish and fitted with a front ring.

How Compact is the unit for panel planning?

External dimensions are 30mm width, 30mm length and 35mm height.
