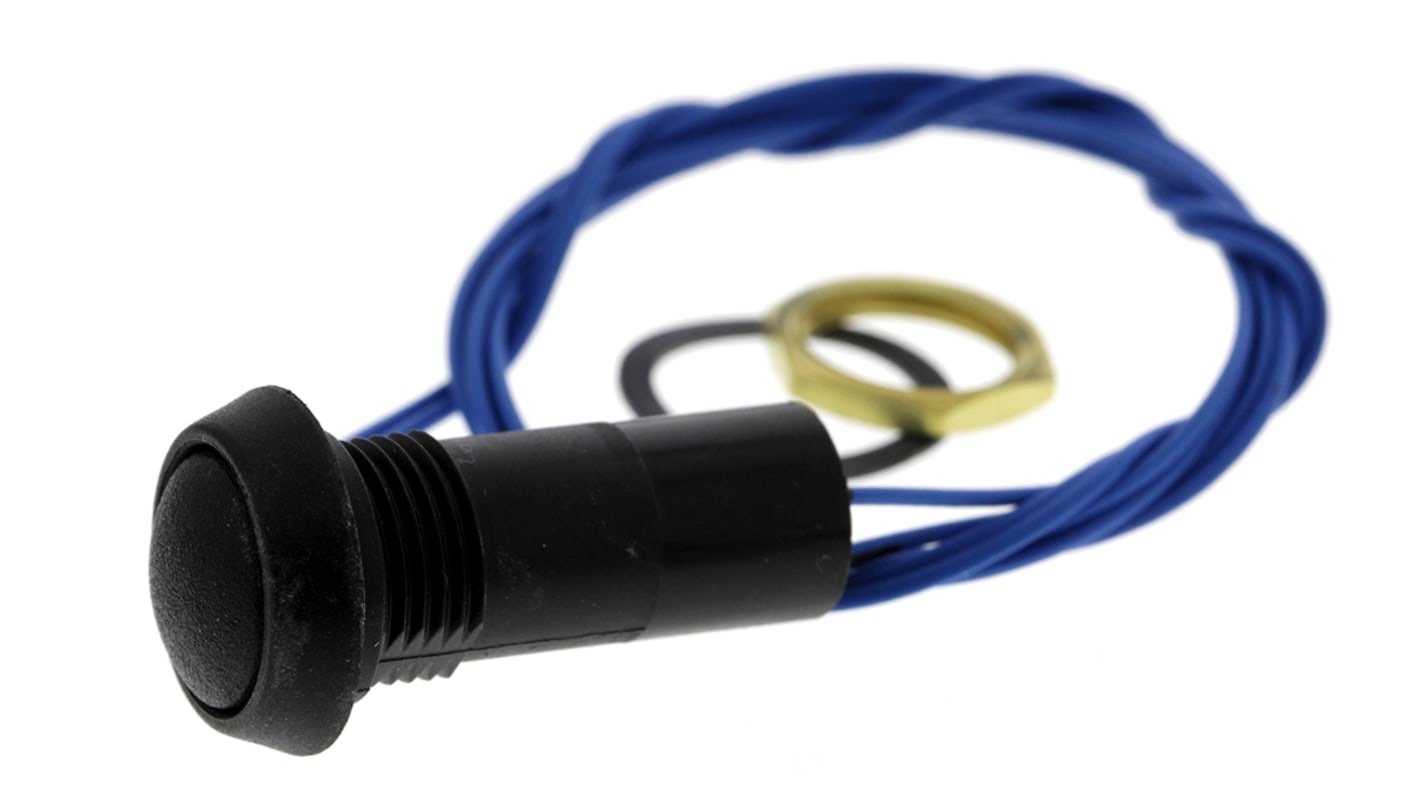

ITW Switches 59 Series Miniature Push Button Switch, Momentary, Panel Mount, 13.65mm Cutout, SPST, 125V ac, IP67
- RS Stock No.:
- 265-0641
- Mfr. Part No.:
- 59-531
- Brand:
- ITW Switches
33 In stock for same day dispatch
Added
Price Each
Kr. 122,98
(exc. VAT)
Kr. 153,72
(inc. VAT)
Units | Per unit |
1 - 9 | Kr. 122,98 |
10 - 49 | Kr. 113,19 |
50 - 99 | Kr. 104,50 |
100 - 249 | Kr. 95,81 |
250 + | Kr. 79,86 |
- RS Stock No.:
- 265-0641
- Mfr. Part No.:
- 59-531
- Brand:
- ITW Switches
Legislation and Compliance
- COO (Country of Origin):
- BZ
Product Details
Miniature Sealed Pushbutton Switches (SPNO)
These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-
• Communications
• Data entry
• Military Environments
• Instrumentation
• Mass transport controls
• Environmentally demanding keypads
• Data entry
• Military Environments
• Instrumentation
• Mass transport controls
• Environmentally demanding keypads
Features and Benefits
• Miniature switch.
• Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
• Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
• Non-spark material.
• High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
• Gold contacts.
• A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
• Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
• Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
• Non-spark material.
• High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
• Gold contacts.
• A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 13.65mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | SPST |
Voltage Rating | 125V ac |
Push Button Style | Dome |
IP Rating | IP67 |
Series | 59 |
Contact Current Rating | 400 mA @ 32 V ac |
Contact Material | Gold Plated |
Contact DC Voltage Rating | 50V |
Manufacturer Part No. | 59-531 |
Contact AC Voltage Rating | 125V |
Case Colour | Stainless Steel |
Operating Temperature Range | -40 → +105°C |
Terminal Type | Wire Lead |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
