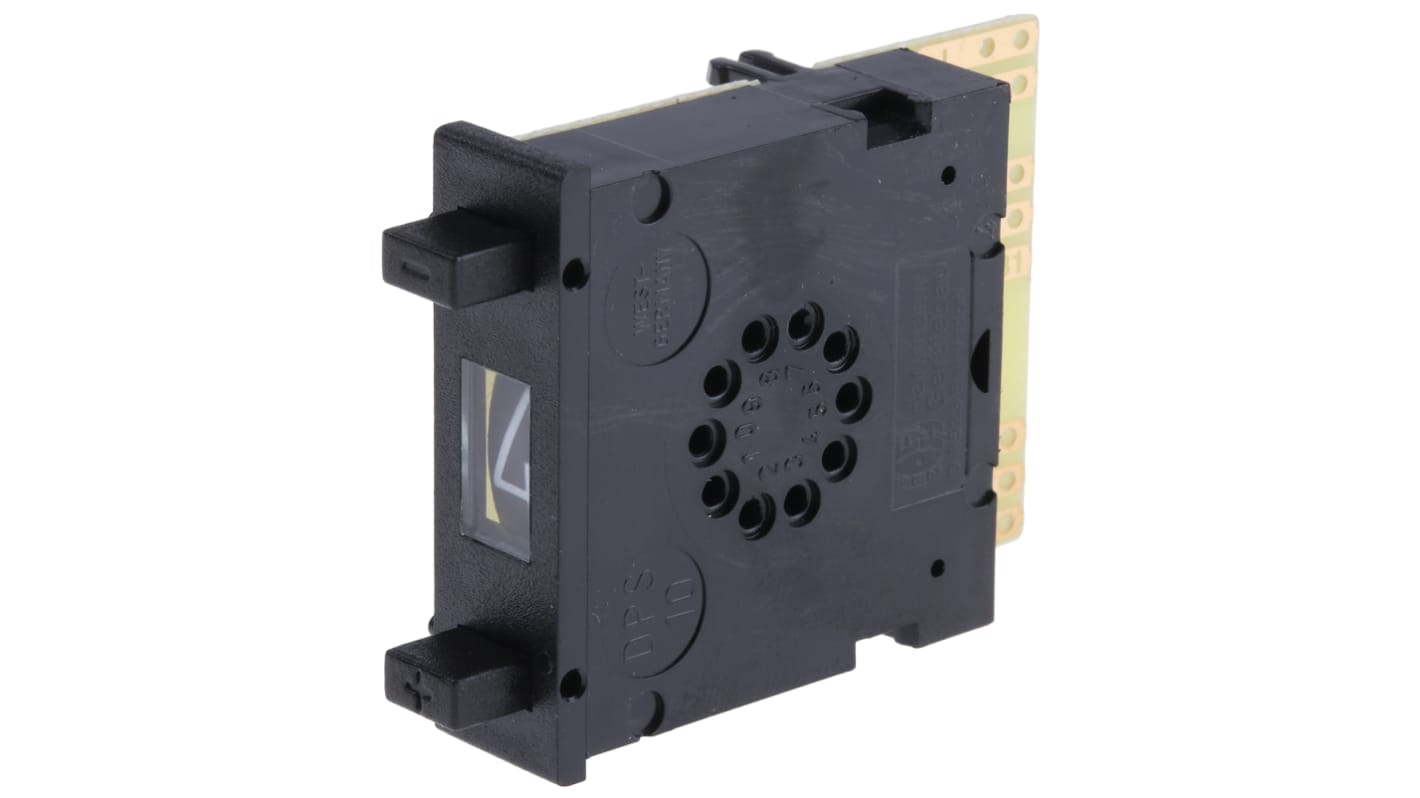

Pushwheel Switch BCD Pushwheel Tab PCB 200mΩ 10-way

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Rear Mount Miniature

Pushwheel rear mount switches from TE Connectivity.

Snap action detent

Specifications
Attribute Value
Output Coding BCD
Actuator Type Pushwheel
Terminal Type Tab
Mounting Type PCB
Contact Resistance 200mΩ
Number of Switch Positions 10
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Operating Temperature Range -20 +80°C
Current Rating 400 mA @ 20 V
11 In stock for delivery within 1 working days
Price Each
kr 360,52
(exc. VAT)
kr 450,65
(inc. VAT)
Units
Per unit
1 - 4
kr 360,52
5 - 9
kr 342,47
10 - 19
kr 325,22
20 - 49
kr 306,78
50 +
kr 288,43
