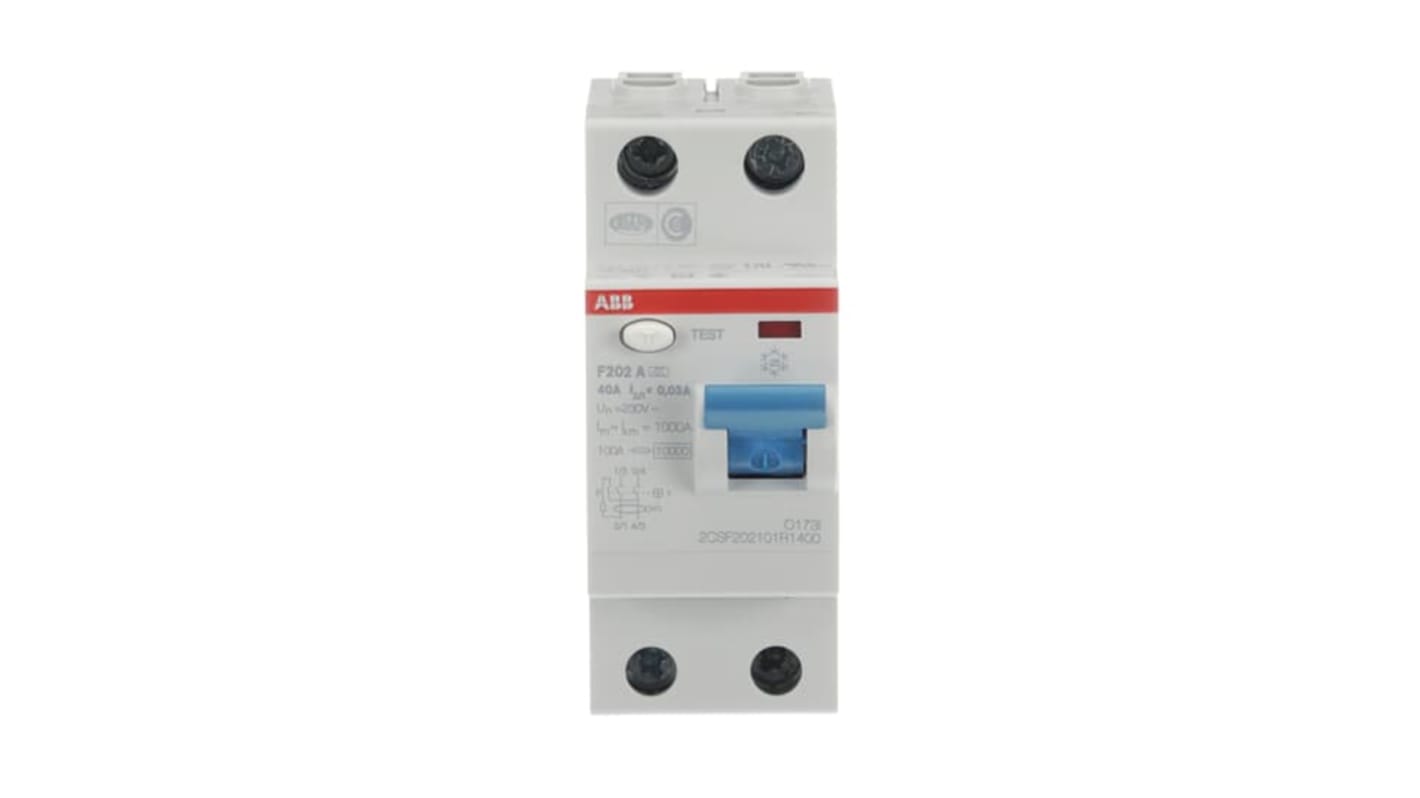

ABB F200 Series Residual Current Circuit Breaker, 40 A, 2-Pole, 30 mA, Type A, 1 kA 230 V ac

RS Stock No.:: 488-7182
Mfr. Part No.:: 2CSF202101R1400 - F202A-40/0.03
Brand:: ABB

ABB F200 Series Residual Current Circuit Breaker, 40 A, 2-Pole, 30 mA, Type A, 1 kA 230 V ac

View all RCCBs

Subtotal (1 unit)*

Kr. 596,21

(exc. VAT)

Kr. 745,26

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

Plus 9 unit(s) shipping from 16 March 2026
Plus 10 unit(s) shipping from 16 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 596,21

*price indicative

RS Stock No.:: 488-7182
Mfr. Part No.:: 2CSF202101R1400 - F202A-40/0.03
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Residual Current Circuit Breaker
	Current Rating	40 A
	Number of Poles	2
	Series	F200
	Trip Sensitivity	30mA
	Tripping Characteristics	Type A
	Mount Type	DIN Rail
	Standards/Approvals	IEC/EN 61008, REACH, RoHS, UL 1053
	Terminal Type	Screw
	Depth	69mm
	Height	85mm
	Width	35 mm
	Breaking Capacity	1kA
	Rated AC Voltage	230 V ac
	Reset Actuator Type	Lever
	Break Time	Instantaneous
	Earth Leakage Protection Type	Type A

	Select all
	Brand ABB
	Product Type Residual Current Circuit Breaker
	Current Rating 40 A
	Number of Poles 2
	Series F200
	Trip Sensitivity 30mA
	Tripping Characteristics Type A
	Mount Type DIN Rail
	Standards/Approvals IEC/EN 61008, REACH, RoHS, UL 1053
	Terminal Type Screw
	Depth 69mm
	Height 85mm
	Width 35 mm
	Breaking Capacity 1kA
	Rated AC Voltage 230 V ac
	Reset Actuator Type Lever
	Break Time Instantaneous
	Earth Leakage Protection Type Type A

COO (Country of Origin):: IT

ABB RCCB, 2.4W Power Loss Per Pole, 230/400V Voltage Rating - F200 Series - 2CSF202101R1400 - F202A-40/0.03

Don't let earth faults put your electrical appliances in danger – protect them with this RCCB from ABB. It continuously monitors the current flowing through the live and neutral wires of your circuit, tripping to cut the power supply in the event of a leakage. This prevents electric shocks and fire outbreaks, keeping you and your machinery safe from harm. The device's front-facing toggle switch makes it easy to reset after you've cleared the error. It also comes with a test button so it takes just a jiffy to check that it's working.

Features & Benefits

• Impulse withstand voltage rating of 4kV means it handles sudden power surges without suffering damage

• Operating temperature range between -25°C and +55°C means it's safe to use in demanding conditions

• Withstands up to 10,000 electrical operating cycles, assuring you of long-term performance

• IP2X rating shows that it's finger-safe as it's protected from objects larger than 12mm

Applications

• Oil and gas plants

• Process and packaging equipment

• Automotive industry

How do I mount this RCCB?

This component is designed to snap right onto your DIN rail – a process that's quick and tool-free.
