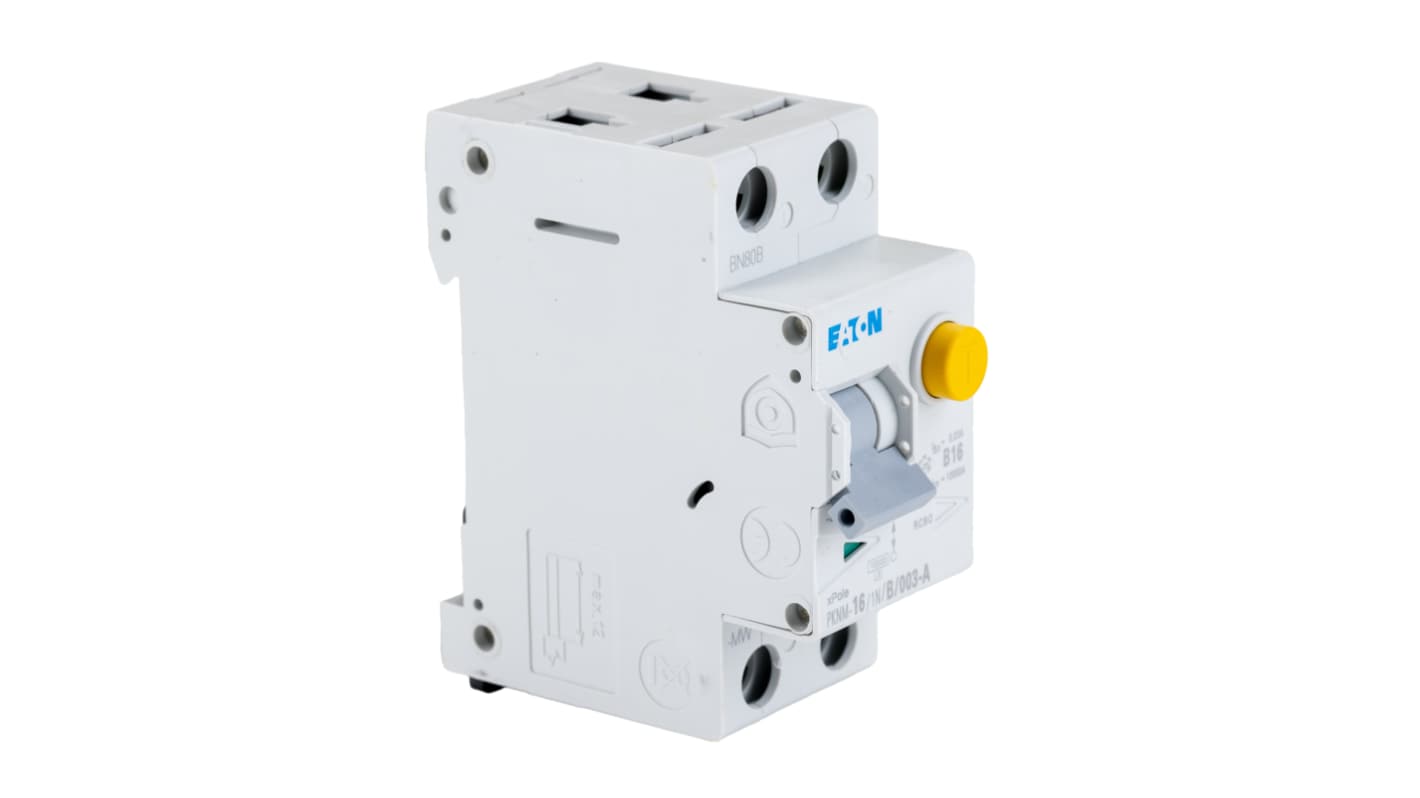

Eaton PKNM Series Residual Current Device, 16 A, 2-Pole, 30 mA, Type B, 10 kA 230 V ac

RS Stock No.:: 922-8724
Distrelec Article No.:: 304-02-375
Mfr. Part No.:: 236205 PKNM-16/1N/B/003-A-MW
Brand:: Eaton

Eaton PKNM Series Residual Current Device, 16 A, 2-Pole, 30 mA, Type B, 10 kA 230 V ac

Subtotal (1 unit)*

Kr. 1 365,15

(exc. VAT)

Kr. 1 706,44

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

19 unit(s) ready to ship
Plus 16 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 14 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 365,15

*price indicative

RS Stock No.:: 922-8724
Distrelec Article No.:: 304-02-375
Mfr. Part No.:: 236205 PKNM-16/1N/B/003-A-MW
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Residual Current Device
	Current Rating	16 A
	Number of Poles	2
	Range	PKNM
	Series	PKNM
	Trip Sensitivity	30mA
	Tripping Characteristics	Type B
	Mount Type	DIN Rail
	Terminal Type	Screw
	Standards/Approvals	CE
	Width	70 mm
	Depth	70.5mm
	Height	80mm
	Breaking Capacity	10kA
	Rated AC Voltage	230 V ac
	Reset Actuator Type	Toggle Switch
	Break Time	Instantaneous
	Application	Residential, Commercial
	Tripping Mechanism	Electromagnetic
	Earth Leakage Protection Type	Type A

	Select all
	Brand Eaton
	Product Type Residual Current Device
	Current Rating 16 A
	Number of Poles 2
	Range PKNM
	Series PKNM
	Trip Sensitivity 30mA
	Tripping Characteristics Type B
	Mount Type DIN Rail
	Terminal Type Screw
	Standards/Approvals CE
	Width 70 mm
	Depth 70.5mm
	Height 80mm
	Breaking Capacity 10kA
	Rated AC Voltage 230 V ac
	Reset Actuator Type Toggle Switch
	Break Time Instantaneous
	Application Residential, Commercial
	Tripping Mechanism Electromagnetic
	Earth Leakage Protection Type Type A

COO (Country of Origin):: RO

Eaton RCD, For AC Circuits, 10kA Rated Breaking Capacity - PKMN Series - 236205 PKNM-16/1N/B/003-A-MW

Keep electrical circuits ticking over smoothly with this RCD from Eaton. It monitors your system continually for current leakage and disconnects a faulty circuit in a flash. This reduces the risk of electric shocks and minimises the chance of fire, maintaining safety and reducing downtime. A breaking capacity of 10kA ensures you're protected against powerful current spikes. You can put the device to the test in outdoor settings, as it resists the ageing effects of UV light. This type-B RCD is suitable for protecting variable-speed three-phase motors such as those found driving compressors, water pumps and fans.

Features & Benefits

• IP20-rated terminals are protected against your fingers and anything larger than 12mm

• Contact position indicator enables quick and convenient visual inspection

• Insulated for safety during handling and installation

• DIN rail mounting means installation is a cinch

How big is this RCD?

With compact dimensions of 80 (L) x 35 (W) x 75mm (H), this RCB helps to optimise distribution board packing space. As it includes a tri-stable slide catch, it's a cinch to remove from your busbar system.

Note

Eaton formerly known as Moeller
