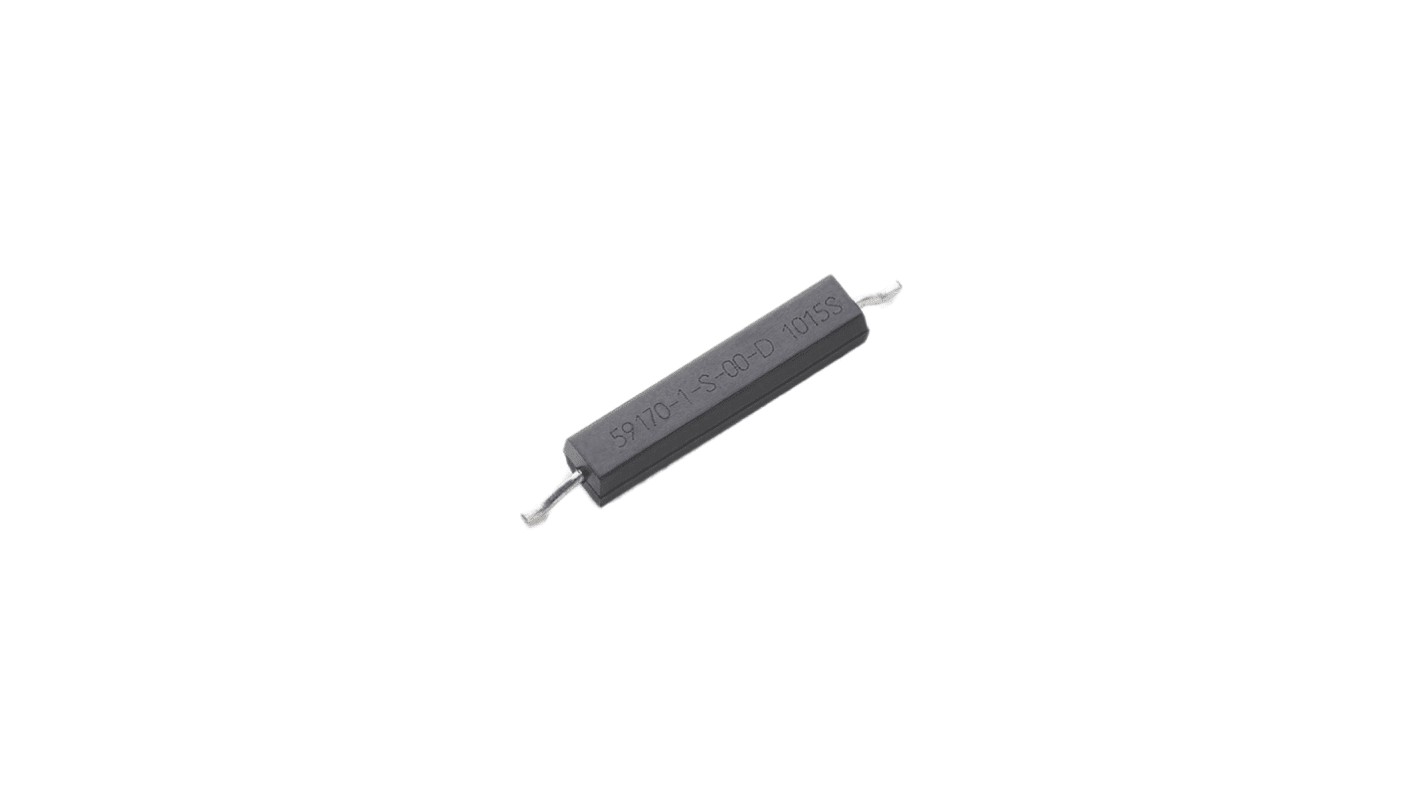

Miniature Reed Switch,

  • RS Stock No. 905-8878
  • Mfr. Part No. 59170-1-S-00-D
  • Brand Hamlin
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Miniature Over-moulded Reed Switches, Low Power

These miniature over-moulded reed switches use low amounts of power and have no power requirement when in standby. They are able to operate through non-ferrous materials including wood, plastic and aluminium. These units are hermetically sealed and with magnetically operated contacts they are highly resilient to contamination. Even operating in conditions long after optical and other technology reed switches would have failed.

Item 905-8809 measures 16 x 2.4 x 2.4 mm, has normally open contacts, sensitivity rating of AT 10-15, gull wing terminals and can switch up to 200 V dc at 10 W.

Item 905-8878 measures 11.43 x 2.29 x 2.29 mm, has normally open contacts, sensitivity rating of AT 10-15, gull wing terminals and can switch up to 200 V dc at 10 W.

Potential Applications

Position and limit sensing
Security system switch
Door switch

Features

Two part magnetically operated proximity switch
Solder reflow capable
Thermoset over-moulded material
Operating temperature range: -40°C to +105°C

Littelfuse

Specifications
Attribute Value
Contact Resistance 100mΩ
AT Value Range 10-15AT
Width 2.29mm
Length 11.43mm
Dimensions 2.29 (Dia.) x 11.43mm
Available to back order for despatch 09.04.2020
Price Each (In a Bag of 5)
kr 6,022
(exc. VAT)
kr 7,528
(inc. VAT)
Units
Per unit
Per Bag*
5 +
kr 6,022
kr 30,11
*price indicative
