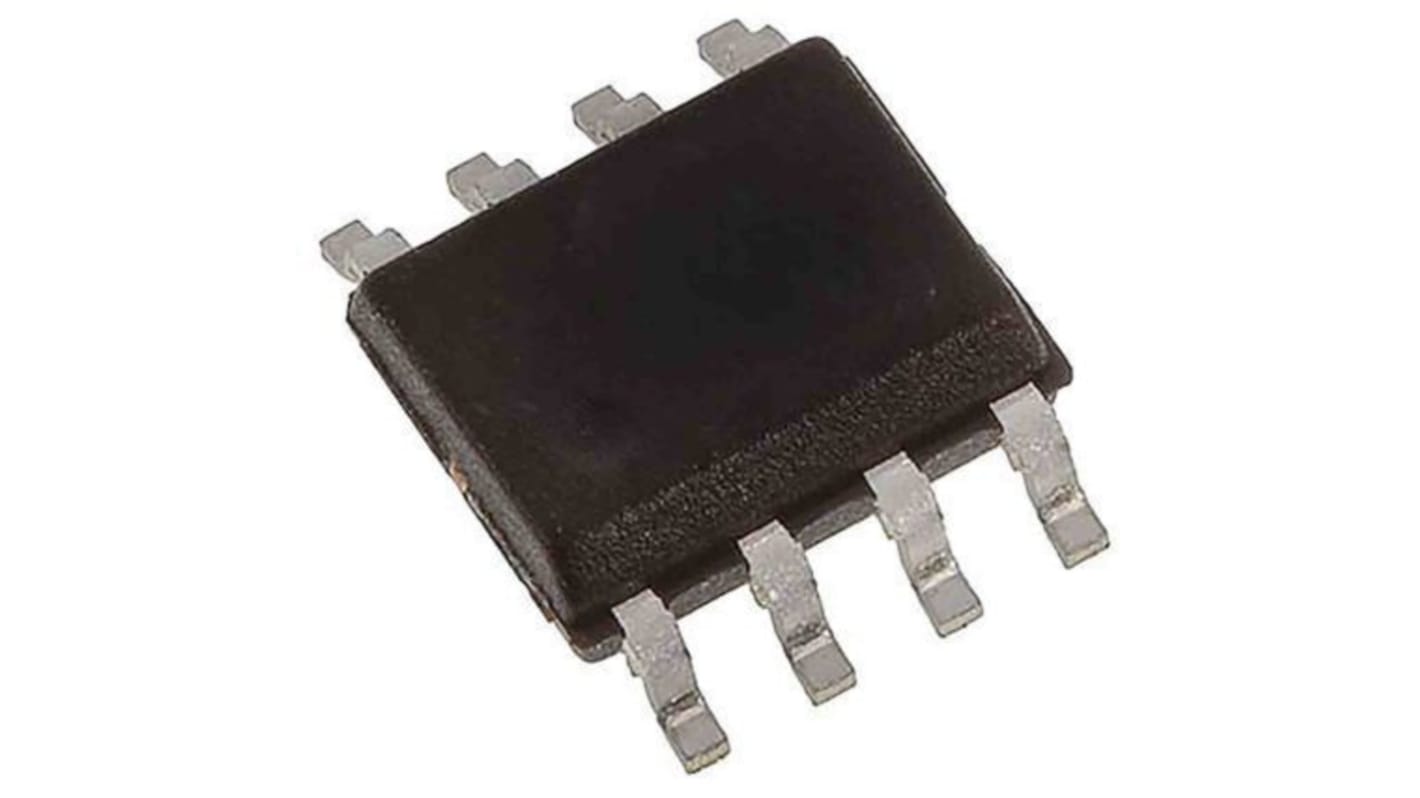

Melexis RFID Module ASK 150 kHz 5.5 V

View all RF Modules

Subtotal (1 pack of 2 units)*

Kr.49 94

(exc. VAT)

Kr.62 42

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 56 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +Kr. 24,97Kr. 49,94

*price indicative

RS Stock No.:
194-2926
Mfr. Part No.:
MLX90109EDC-AAA-000-TU
Brand:
Melexis
Find similar products by selecting one or more attributes.
Select all

Brand

Melexis

Sub Type

Transceiver

Component Type

Module

Product Type

RFID Module

Modulation Technique

ASK

Mount Type

Surface

Frequency

150kHz

Interface Type

2 Wire

Minimum Supply Voltage

3.1V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

MLX90109

Standards/Approvals

No

Length

4.98mm

Height

1.47mm

Width

3.99 mm

The MLX90109 is a single chip RFID transceiver for the 125kHz frequency range. It has been conceived for minimum system cost and minimum power consumption offering all required flexibility for a state of the art AM transceiver base station.

An external coil (L) and capacitor (C) are connected as a parallel resonant circuit that determines the carrier frequency and the oscillator frequency of the reader. This eliminates zero modulation effects by perfect antenna tuning, and avoids the need for an external oscillator.

The reader IC can easily be switched to power down by setting the antenna amplitude to zero.

The MLX90109 can be configured to decode the transponder signal on-chip. In this case the decoded signal is available through a 2-wire interface with clock and data. For minimum interface wiring, the non-decoded transponder signal can also be made available on a single wire interface.
