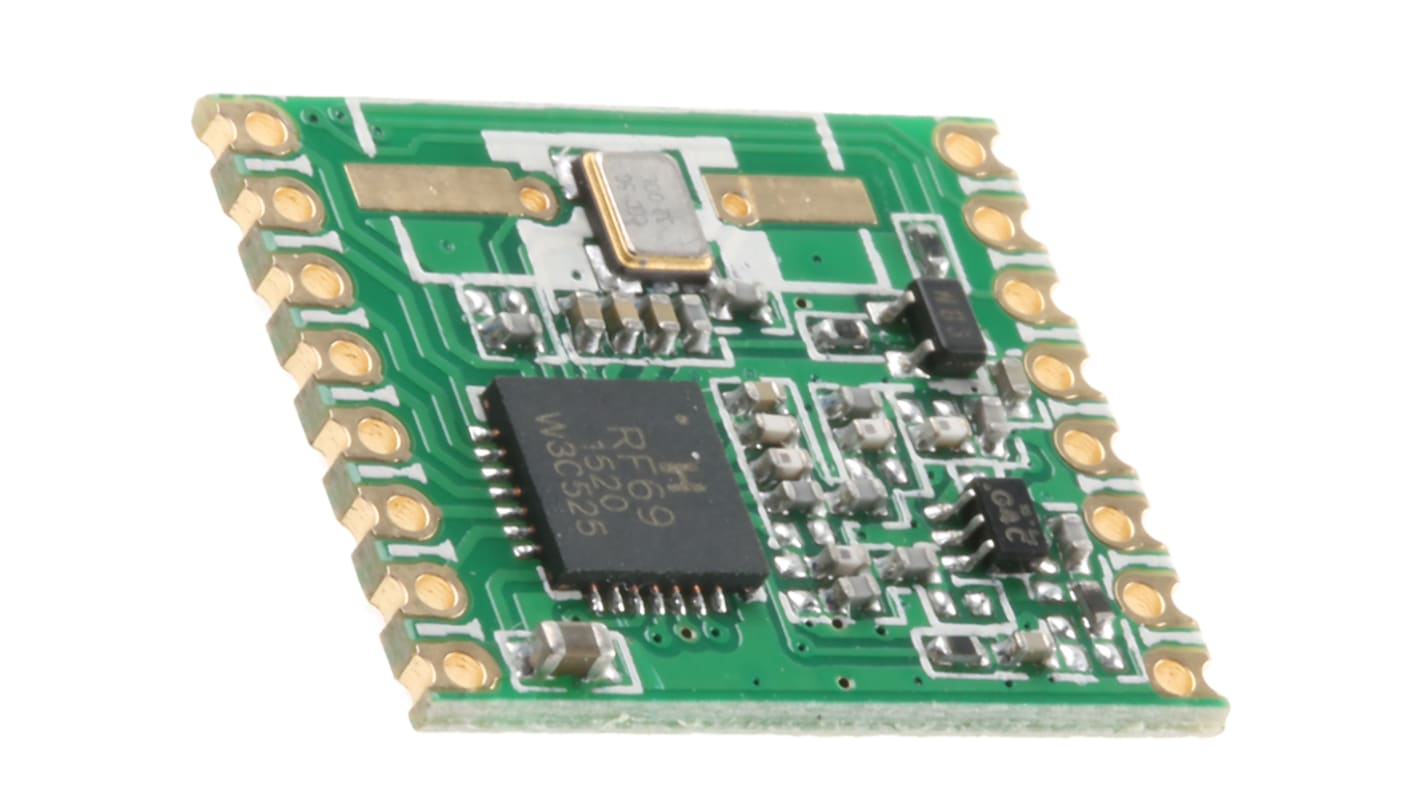

HopeRF RFM69HW-868-S2 RF Module FSK, OOK, GMSK, MSK, GFSK 868 MHz 3.6V

View all RF Modules
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

Kr. 111,23

(exc. VAT)

Kr. 139,04

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1 unit(s), ready to ship

Units
Per unit
1 - 4Kr. 111,23
5 - 9Kr. 100,33
10 +Kr. 83,63

*price indicative

RS Stock No.:
793-1992
Mfr. Part No.:
RFM69HW-868-S2
Brand:
HopeRF
Find similar products by selecting one or more attributes.
Select all

Brand

HopeRF

Sub Type

Transceiver

Product Type

RF Module

Component Type

Module

Modulation Technique

FSK, OOK, GMSK, MSK, GFSK

Maximum RF Data Rate

300kbps

Maximum Output Power

20dBm

Frequency

868MHz

Mount Type

Surface

Receiver Sensitivity

-120dBm

Interface Type

SPI

Minimum Supply Voltage

1.8V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Height

1.9mm

Length

19.7mm

Series

RFM69HW

Standards/Approvals

No

COO (Country of Origin):
CN

RFM69 868MHz ISM Transceiver, HopeRF


These RFM69-868 transceiver modules operate over the 868MHz license-free ISM (Industry Scientific and Medical) frequeny band. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69 has the advantage of programmable narrow-band and wide- band communication modes. The RFM69 is optimized for low power consumption while offering high RF output power and channelized operation. Two RF power output options are available.

• RF Carrier Frequency Range: 862 to 890MHz ISM band

• RF Power Output: +13dBm (RFM69W), +20dBm (RFM69HW)

• Receiver Sensitivity: -120dBm @ 1.2kbps, FSK

• Modulation: FSK, GFSK, MSK, GMSK or OOK

• OTA Data rate: 1.2 to 300kbps

• Linearity: IIP3 = -18dBm, IIP2 = +35dBm

• 80dB Blocking Immunity, no Image Frequency response

• 16-tap FIR Channel Filter

• Built-in Bit Synchronizer performing Clock Recovery

• Incoming Sync Word Recognition

• 115dB+ Dynamic Range RSSI

• Automatic RF Sense with ultra-fast AFC

• Packet engine with CRC-16, AES-128 encryption and 66-byte FIFO

• Host communication: serial SPI

• Built-in temperature sensor

• Power supply: +2.4 to +3.6Vdc

• Low current: Rx = 16mA, 100nA register retention

• Operating temperature range: -20 to +70°C

• Dimensions: 19.7 x 16 x 2mm

• Applications: Automated Meter Reading, Wireless Sensor Networks, Home & Building Automation, Wireless Alarm & Security Systems, Industrial Monitoring & Control, Wireless M-BUS

, Internet-of-Things (IoT)

RS Product Codes


793-1998 RFM69W +13dBm Transmit Power;793-1992 RFM69HW +20dBm Transmit Power
