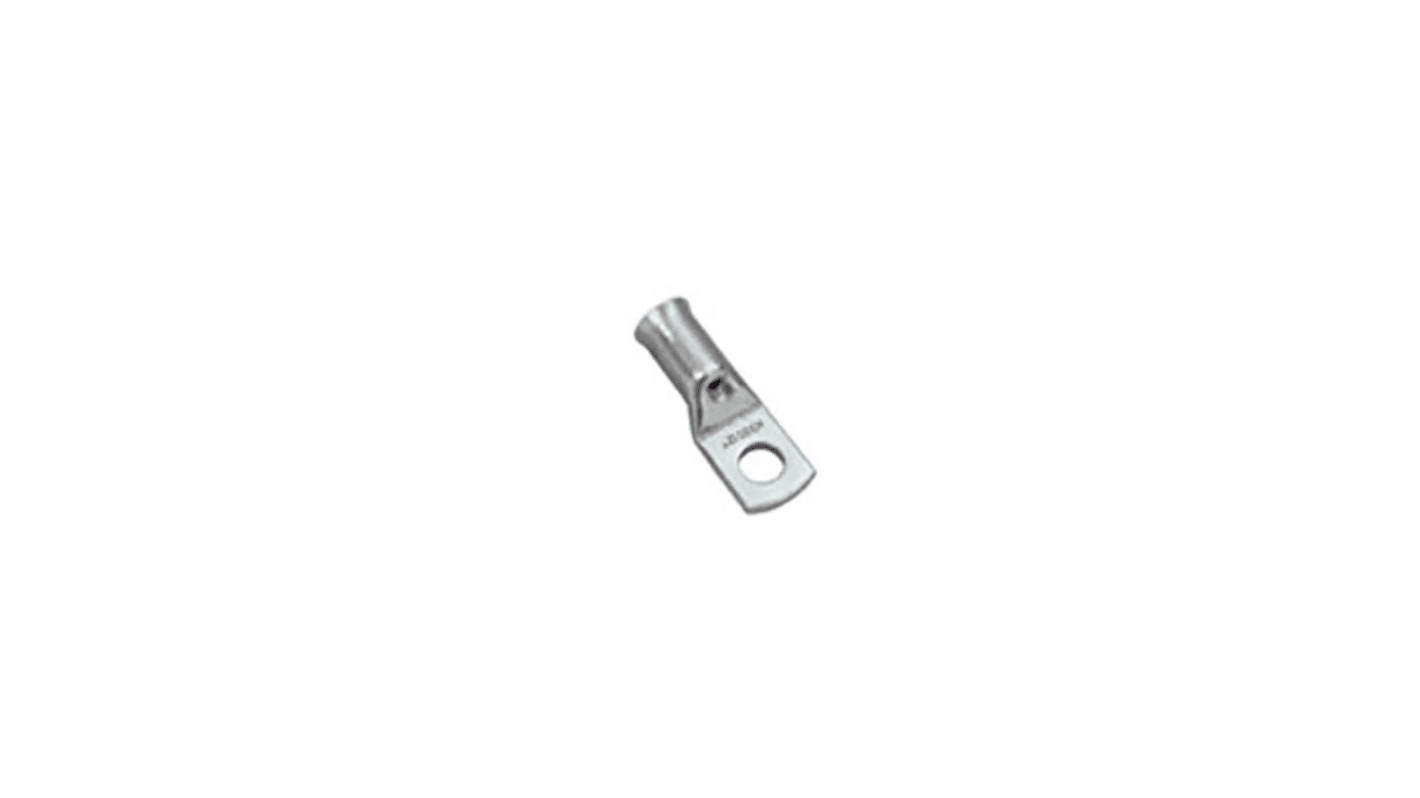

MECATRACTION, C Uninsulated Ring Terminal, 12 mm Stud Size 1 AWG Wire Size, Grey
- RS Stock No.:
- 200-7033
- Mfr. Part No.:
- C6-50-12CT
- Brand:
- MECATRACTION
Subtotal (1 box of 6 units)*
Kr.144 108
(exc. VAT)
Kr.180 132
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Stock information currently inaccessible
Units | Per unit | Per Box* |
|---|---|---|
| 6 + | Kr. 24,018 | Kr. 144,11 |
*price indicative
- RS Stock No.:
- 200-7033
- Mfr. Part No.:
- C6-50-12CT
- Brand:
- MECATRACTION
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Product Type | Ring Terminal | |
| Series | C | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 19mm | |
| Inner Ring Diameter | 12.8mm | |
| Maximum Wire Size AWG | 1 AWG | |
| Overall Length | 51mm | |
| Stud Size | 12 mm | |
| Colour | Grey | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 110°C | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Product Type Ring Terminal | ||
Series C | ||
Insulation Uninsulated | ||
Outer Ring Diameter 19mm | ||
Inner Ring Diameter 12.8mm | ||
Maximum Wire Size AWG 1 AWG | ||
Overall Length 51mm | ||
Stud Size 12 mm | ||
Colour Grey | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Standards/Approvals No | ||
Maximum Operating Temperature 110°C | ||
C6-50-12CT
The Mecatraction copper tubular lug for 50mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
