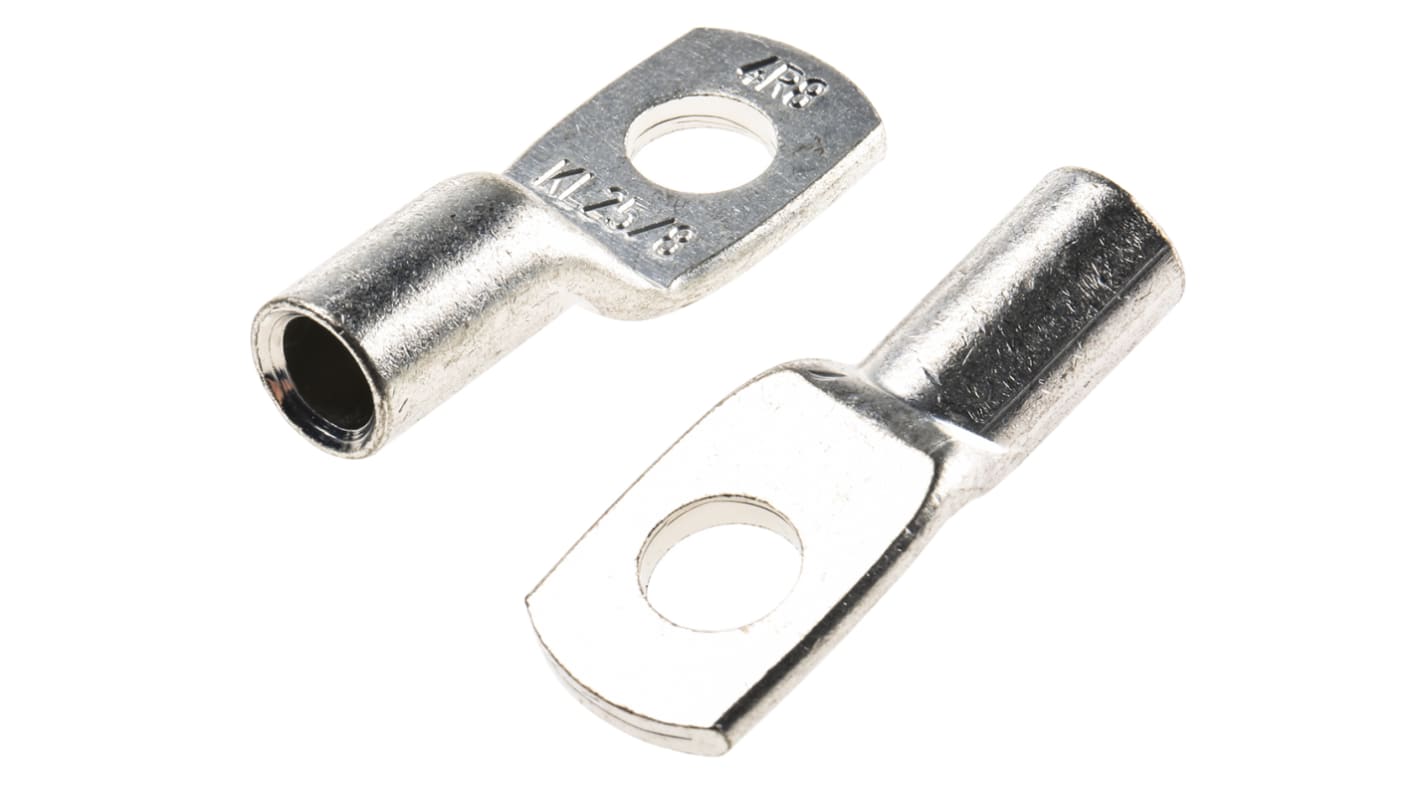

Klauke, Tubular cable lugs, Cu, standard version with/without viewing hole Non-insulated Lug, M8 Stud Size

View all Ring Terminals
Bulk discount available
View bulk pricing options

Subtotal (1 bag of 10 units)*

Kr. 155,54

(exc. VAT)

Kr. 194,42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 750 unit(s) shipping from 28 September 2026
  • Plus 670 unit(s) shipping from 28 September 2026
  • Plus 1 200 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Bag*
10 - 40Kr. 15,554Kr. 155,54
50 - 240Kr. 13,98Kr. 139,80
250 - 740Kr. 13,053Kr. 130,53
750 - 1490Kr. 11,52Kr. 115,20
1500 +Kr. 11,177Kr. 111,77

*price indicative

RS Stock No.:
398-1952
Mfr. Part No.:
4R8
Brand:
Klauke
Find similar products by selecting one or more attributes.
Select all

Brand

Klauke

Product Type

Lug

Series

Tubular cable lugs, Cu, standard version with/without viewing hole

Insulation

Non-insulated

Inner Ring Diameter

7mm

Outer Ring Diameter

16mm

Overall Length

42mm

Stud Size

M8

Contact Plating

Tin

Contact Material

Copper

Standards/Approvals

IEC/UL/DNV

Minimum Operating Temperature

-40°C

Maximum Wire Size mm²

25mm²

Minimum Wire Size mm²

25mm²

COO (Country of Origin):
DE

Klauke® Tubular Terminals


Tubular terminals without inspection hole

Material: E-Cu tubing

Electro tin-plated surface

For suitable tools, see stock no. 398-3043 or 398-2270
