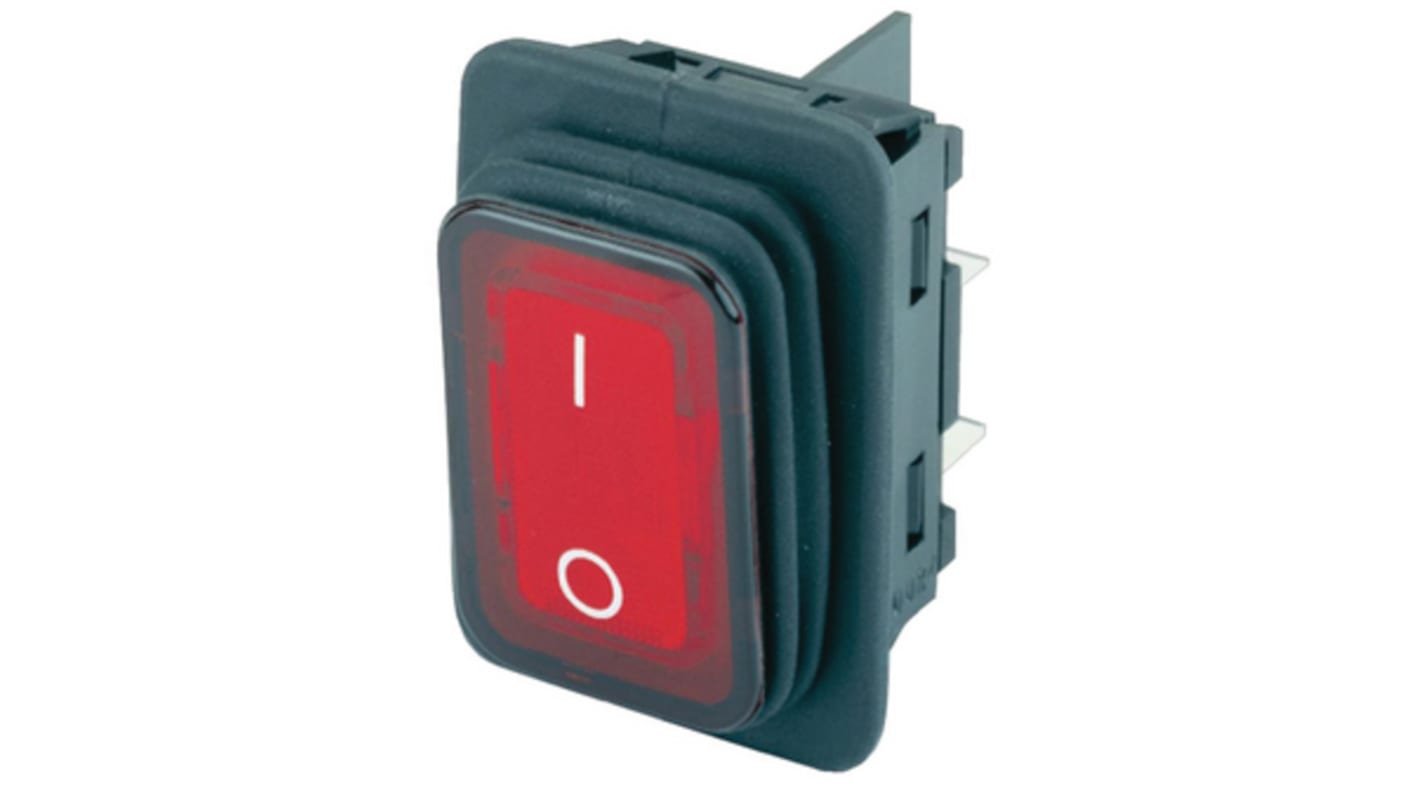

Marquardt Illuminated DPST, On-Off (On)-Off Rocker Switch Panel
- RS Stock No.:
- 283-5419
- Distrelec Article No.:
- 135-04-682
- Mfr. Part No.:
- 1935.3112
- Brand:
- Marquardt
Subtotal (1 unit)*
Kr. 97,59
(exc. VAT)
Kr. 121,99
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 10 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 97,59 |
*price indicative
- RS Stock No.:
- 283-5419
- Distrelec Article No.:
- 135-04-682
- Mfr. Part No.:
- 1935.3112
- Brand:
- Marquardt
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Contact Configuration | DPST | |
| Product Type | Rocker Switch | |
| Legend | O I | |
| Switch Operation | On-Off | |
| Housing Material | Polyamide | |
| Panel Cutout Size | 22 x 30 mm | |
| Switch Contact Current | 20A | |
| Illuminated | Yes | |
| Actuator Colour | Black | |
| Series | 1930 | |
| Mount Type | Panel | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -30°C | |
| Actuator Style | Rectangular | |
| Contact DC Voltage | 24V dc | |
| Contact AC Voltage | 250V ac | |
| Switch Configuration | (On)-Off | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EN 60335 cap. 30 | |
| Select all | ||
|---|---|---|
Brand Marquardt | ||
Contact Configuration DPST | ||
Product Type Rocker Switch | ||
Legend O I | ||
Switch Operation On-Off | ||
Housing Material Polyamide | ||
Panel Cutout Size 22 x 30 mm | ||
Switch Contact Current 20A | ||
Illuminated Yes | ||
Actuator Colour Black | ||
Series 1930 | ||
Mount Type Panel | ||
IP Rating IP65 | ||
Minimum Operating Temperature -30°C | ||
Actuator Style Rectangular | ||
Contact DC Voltage 24V dc | ||
Contact AC Voltage 250V ac | ||
Switch Configuration (On)-Off | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EN 60335 cap. 30 | ||
- COO (Country of Origin):
- TN
The double-pole rocker switch is a versatile and reliable electrical component designed for various applications. With a mechanical life endurance of 5E4, operating force of 3 - 8 N, and inrush current of up to 120 A, this switch offers high performance and durability.
Suitable for appliances of protection class II
IP 65 protection rating for high dust and water resistance
Available in illuminated and non-illuminated variants
Approval for 400 V
High-quality construction with silver-plated terminals
Modern rocker design for ease of use
