Siemens Eye Bolt

The 3SE7 series of grab wire switches (trip wire switches, cable operated switches) are used for monitoring or for EMERGENCY STOP devices on particularly dangerous system sections.
As the effective range of a grab wire switch is only limited by the length of the grab wire, large systems can also be protected. Switches (requiring pulling at both ends) and conveyor belt unbalance trackers are used primarily for monitoring very long belt systems.

The switches for wire lengths up to 50m are available with 1 NO + 1 NC or 2 NC contacts and for up to 75m with 1 NO + 3 NC contacts. The switches for wire lengths of 2 ´ 75m and the conveyor belt unbalance trackers are supplied with 2 NO + 2 NC contacts.
The grab wire switch and the conveyor belt unbalance tracker are also available with a factory fitted LED (red, 24 V DC). This light has innovative on board chip technology that allows the operating state of the switch to be visible at a distance of at least 50m.

The NC contacts of the grab wire switch and the conveyor belt unbalance tracker are positive opening. The grab wire switches with one side operation are held in free position by the pre-tension on the turnbuckle. In the 3SE7 140 and 3SE7 150 grab wire switches, both switching contacts are available for wire-break/wire-pull signalling. The NO contact can be used, for example, for signalling purposes. On switches with interlocking, with a pre-tensioned wire, the locking must be deactivated beforehand in order to return the grab wire switch to its original position.

Positive latching and positive NC contacts
Switches for wire lengths up to 75m
Metal housing
Enclosure is screw mounted
IP67 rating
Operating temperature: -25 to +70°C

Stock nos. 764-4341, 764-4301, 764-4304, 764-4357 are fitted with an indicator light.

UL,CSA

The switches are equipped with positive latching and positive NC contacts and are therefore suitable for operation in EMERGENCY STOP devices in accordance with EN ISO 13850. They are usable up to Category 4 according to EN 954-1.

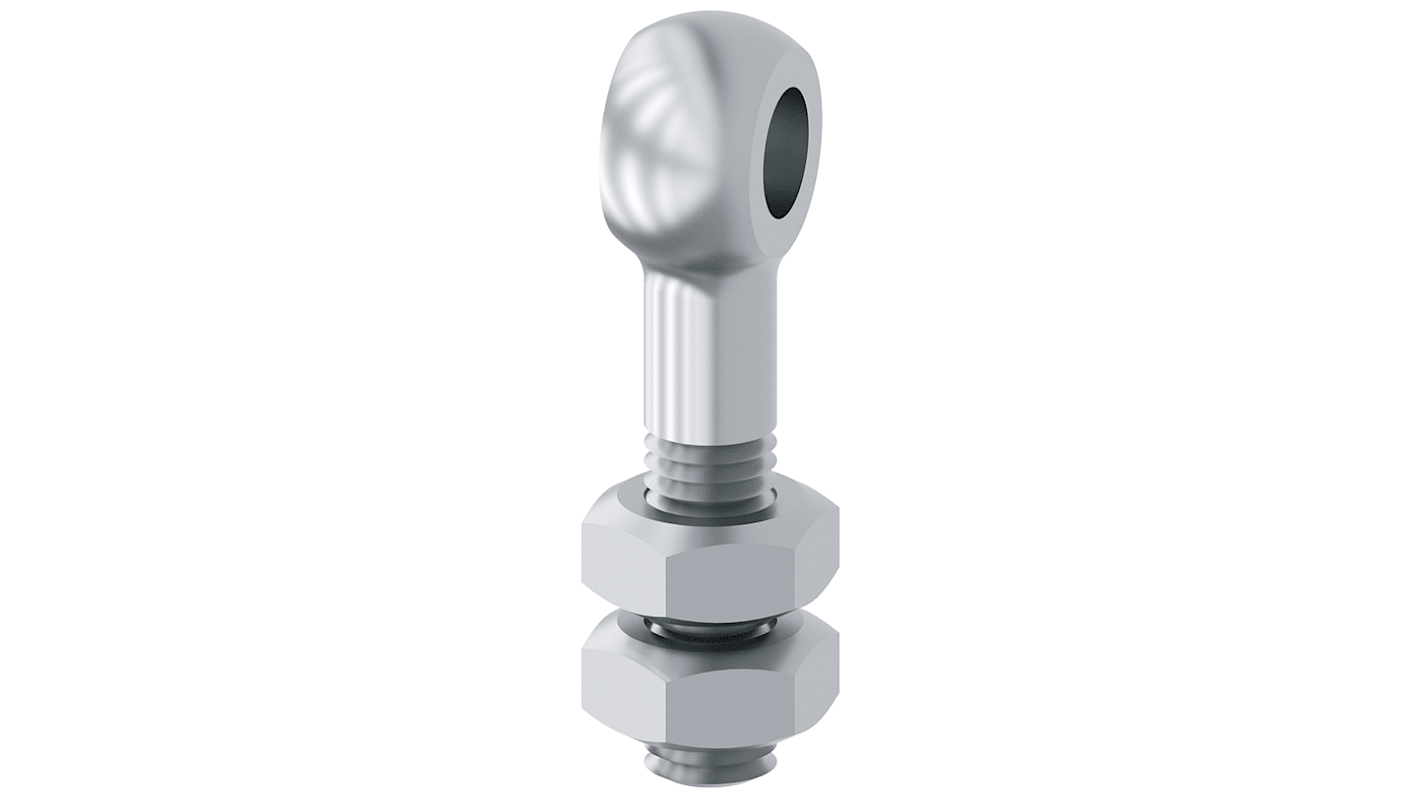

This eye bolt is a vital component of rope tensioner systems, optimising performance and efficiency. It plays an essential role in the management of ropes, ensuring proper tensioning and stability. The eye bolt is made from sturdy steel, making it suitable for various applications across the automation, electronics, and mechanical fields.

• Steel construction for longevity
• Secures attachment in tensioning applications
• Compatible with M10 components for flexibility
• Lightweight at 0.06kg for easy handling
• Supports compliance in industrial environments
• Streamlined design for enhanced usability in diverse settings

• Securing ropes in heavy-duty tensioners
• Integrating into automation and control systems
• Utilised in various electrical and mechanical assemblies
• Suitable for construction and maintenance tasks
• Works effectively with other industrial components

The load capacity depends on the overall system

Yes, its steel construction is suitable for outdoor use, although regular maintenance is required to prevent rust.

Installation involves threading it into an appropriate fixture

Yes, it is designed for compatibility with M10 components, allowing for broad application.

Regular inspections for wear or damage are recommended to maintain optimal performance and safety.
