RS PRO Industrial Automation Cable Assembly, 5m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

Kr. 120,76

(exc. VAT)

Kr. 150,95

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 - 9Kr. 120,76
10 - 24Kr. 111,30
25 - 49Kr. 103,24
50 - 99Kr. 96,14
100 +Kr. 89,89

*price indicative

RS Stock No.:
175-0165
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

FM

Number of Cores

2

Cross Sectional Area

2 mm²

Sheath Colour

Black

Length

5m

Voltage Rating

250 V ac

Current Rating

13 A

IP Rating

IP68

American Wire Gauge

14 AWG

Maximum Operating Temperature

+85°C

Conductor Material

Brass

Fire Behaviour

Flame Retardant

Conductor Resistance

2 mΩ

Outer Diameter

4.5mm

Standards Met

CE

Cable Shape

Round

Minimum Operating Temperature

-25°C

COO (Country of Origin):
GB
The Cliffcon® 68 is a multipin connector for waterproof and rugged applications

Panel hole cut-out size of 13mm.
Use under water, outdoors and indoors when mated.
2 to 9 gold-plated contacts, (no 8 pin version).
Sealing cap available for socket. Sold separately.
Coupling Type: Threaded.
Material: Plastic Shell, Nylon66.
Insert Material: PPS maximum temperature 260 °C
Contact Material: Brass with Gold Plating.
Termination: Solder.
Cable Outer Diameter: 5 to 8 mm.
Mating Cycle: > 500.
Temperature Range: -25 to +85 °C.
Insulation Resistance: 2000 mΩ.

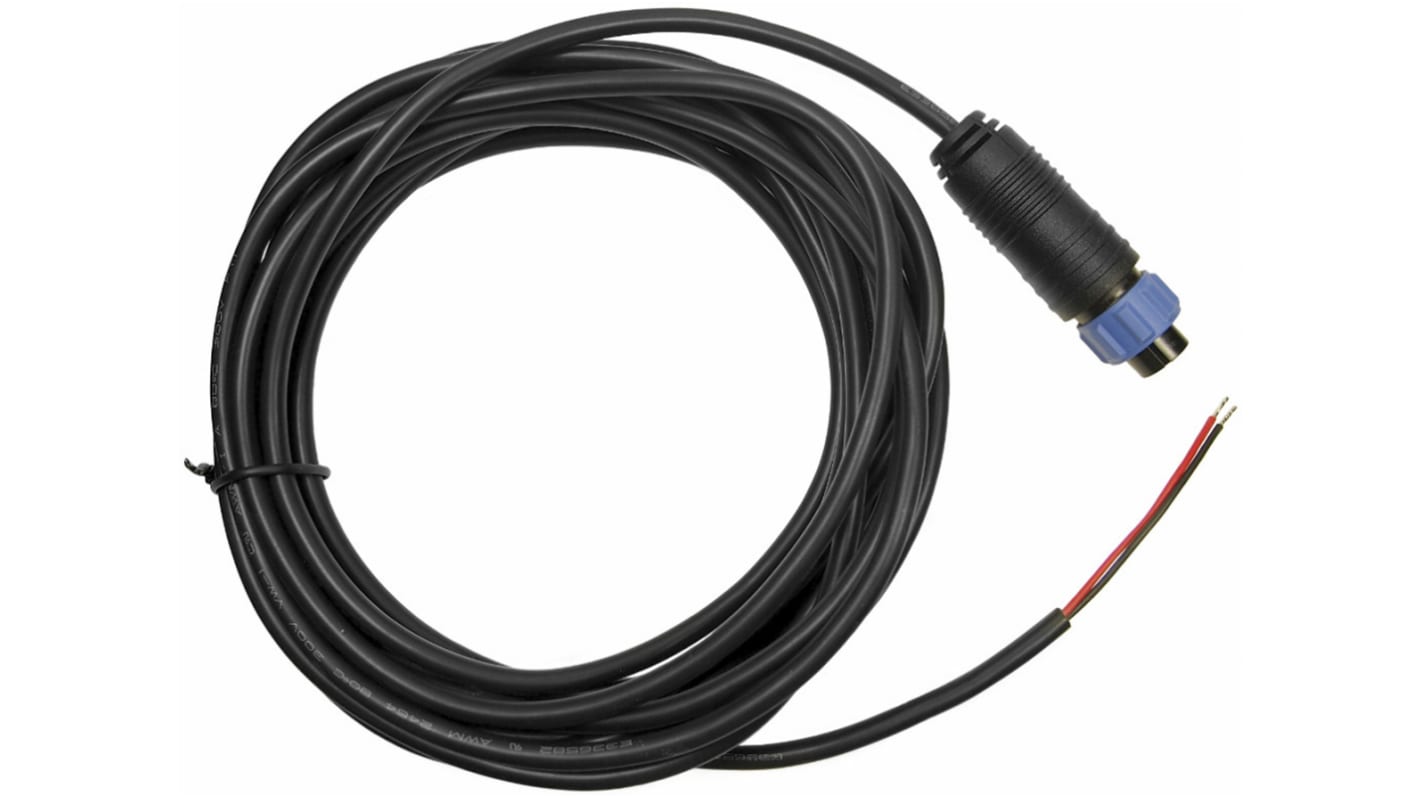

FM686822 2 Pin Male Overmould Plug with 5m Cable. Outer Diameter Ø4.5mm
