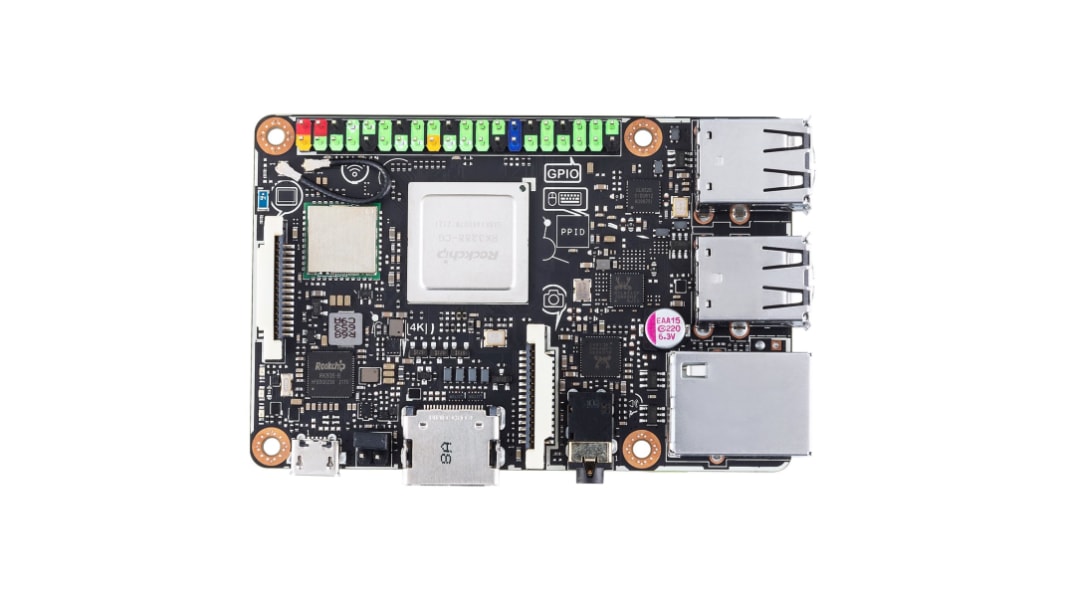

Asus Tinker Board R2.0 2GB ARM-based Single Board Computer

RS Stock No.:: 265-7196
Mfr. Part No.:: 90ME03D1-M0EAY0
Brand:: Asus

Asus Tinker Board R2.0 2GB ARM-based Single Board Computer

39 In stock for same day dispatch

Price Each

Kr. 1 169,65

(exc. VAT)

Kr. 1 462,06

(inc. VAT)

Units	Per unit
1 - 4	Kr. 1 169,65
5 - 9	Kr. 1 149,43
10 +	Kr. 1 136,77

RS Stock No.:: 265-7196
Mfr. Part No.:: 90ME03D1-M0EAY0
Brand:: Asus

Datasheet - 90ME03D1-M0EAY0

The Asus Tinker Board R2.0 single board computer is an ARM-based SBC that leverages a powerful quad-core ARM-based processor — the Rockchip RK3288-CG.W. Powered by an ARM-based Mali™-T764 GPU, Tinker Board R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

Key benefits of Tinker Board R2.0

HD Audio Quality: Tinker Board R2.0 is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.

Great connectity options: 40-pin GPIO interface, DSI MIPI connection, CSI MIPI connection, Gbit LAN for Internet and network connectivity, Wi-Fi and Bluetooth, integrated IPEX antenna header, full-size HDMI output, four USB 2.0 ports, and much more.

Highly comptaible with accessories: Its familiar form factor allow support for a wide range of chassis and physical accessories.

Thermal management: Tinker Board R2.0 series also includes a heatsink to ensure your Tinker Board runs under heavy loads or in hot environments

Ideal for many applications: including digital signage, kioks, IoT gateways, digital payments, and much more!

Technical specifications:

CPU: Rockchip Quad-Core RK3288-CG.W processor

Memory: 2GB Dual Channel DDR3

Graphics: Integrated Graphics Processor
ARM® Mali™-T764 GPU*1

Storage: Micro SD(TF) card slot

LAN: RTL GB LAN

Wireless Data Network: 802.11 b/g/n, Blutetooth V4.2 + EDR

Audio: RTL ALC4030U CODEC

USB Ports: 4 x USB 2.0

Internal I/O Ports: 1 x 40-pin headers:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact pin:
- 1 x PWM
- 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI

Accessories: Passive heatsink*2, User manual

Form Factor: 3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm )

Weight: 55g

Operation temperature: 0℃ ∼ 60℃

OS Support: Debian 10 / Android 11

Notes: *1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder.
*2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury.
