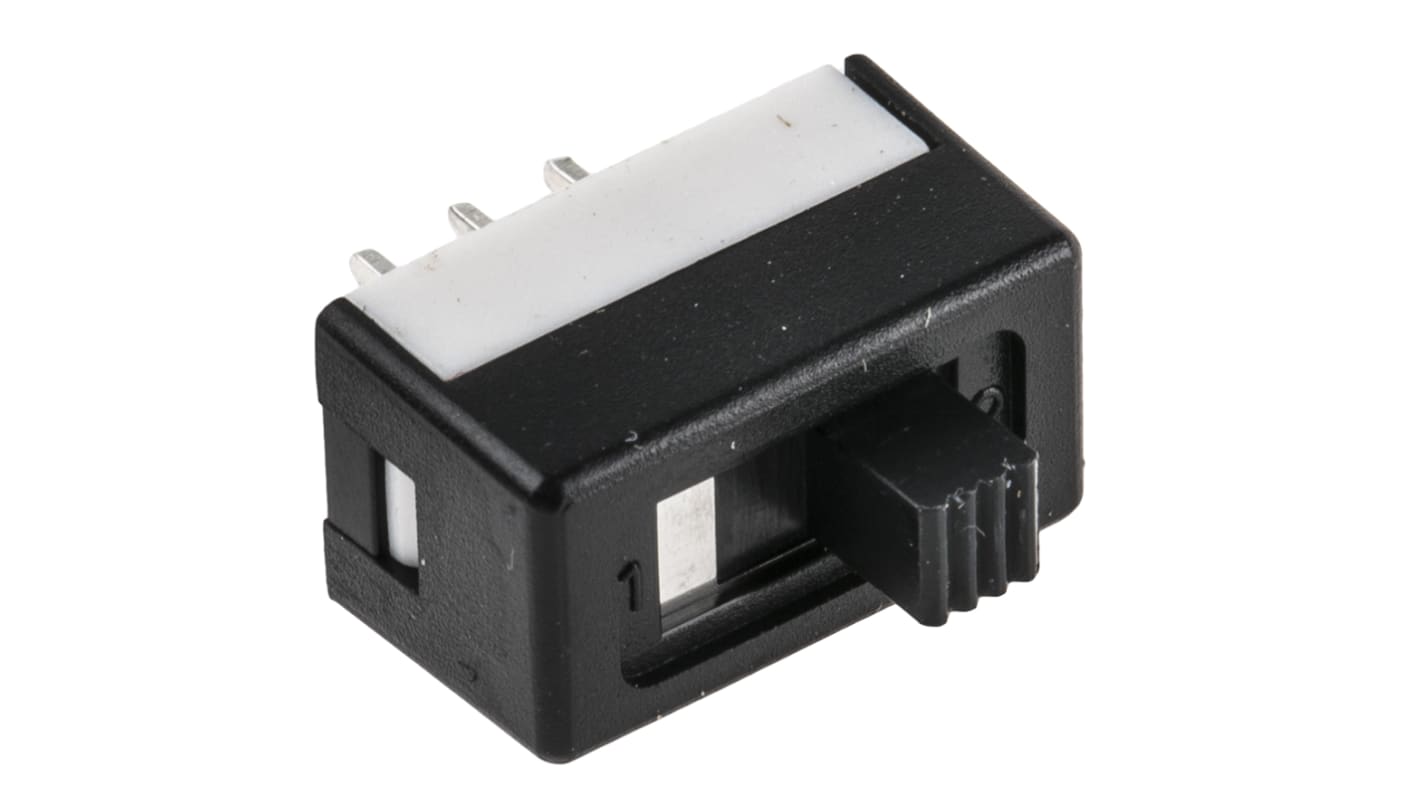

RS PRO PCB Slide Switch SPDT Latching 3 A @ 120 V ac Top
- RS Stock No.:
- 734-7343
- Brand:
- RS PRO
161 In stock for same day dispatch
Added
Price Each
Kr. 37,62
(exc. VAT)
Kr. 47,02
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 37,62 |
| 10 - 49 | Kr. 33,55 |
| 50 - 99 | Kr. 28,38 |
| 100 - 249 | Kr. 26,29 |
| 250 + | Kr. 24,31 |
- RS Stock No.:
- 734-7343
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
RS - Micro Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black PBT actuator, white PBT case and black POM housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black PBT actuator, white PBT case and black POM housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 3 A @ 120 V ac |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Length | 14mm |
| Width | 7.7mm |
| Depth | 7.8mm |
| Dimensions | 14 x 7.7 x 7.8mm |
| Contact Resistance | 50mΩ |
| Voltage Rating | 120V ac |
| Mechanical Life | 20000Cycles |
| Maximum Operating Temperature | +80°C |
| Actuator Material | Nylon |
| Contact Material | Silver Plated Copper Alloy |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
