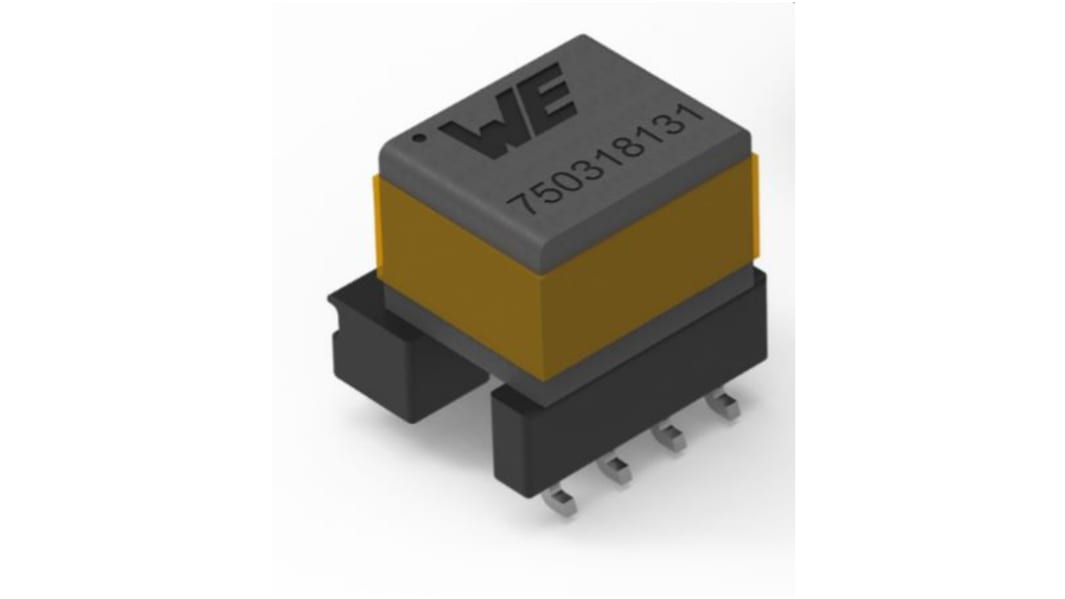

Wurth Elektronik 1 Output Gate Drive Transformer, 9/18 V, 19 V, 18 μH

View all SMPS Transformers

Subtotal (1 reel of 250 units)*

Kr. 16 542,25

(exc. VAT)

Kr. 20 677,75

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06. juli 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
250 +Kr. 66,169Kr. 16 542,25

*price indicative

RS Stock No.:
227-8201
Mfr. Part No.:
750317893
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Secondary Voltage

19 V

Product Type

Gate Drive Transformer

Primary Voltage

9/18 V

Number of Outputs

1

Mount Type

Surface

Inductance

18 μH

Secondary Current

0.16 A

Minimum Operating Temperature

-40°C

Number of Pins

8

Primary Current

1.95A

Maximum Operating Temperature

130°C

Standards/Approvals

REACH, RoHS

Depth

11.9mm

Width

10.95 mm

Length

11.3mm

Series

WE-AGDT

Turns Ratio

1:2

Leakage Inductance

500nH

COO (Country of Origin):
CN
The Wurth Elektronik WE-AGDT auxiliary gate drive transformer can be used in Industrial drives AC motor inverters, HEV/EV charging station, battery chargers and solar inverter application. It has 18 μH inductance.

High efficiency and very compact solution

Tiny surface mount EP7 package
