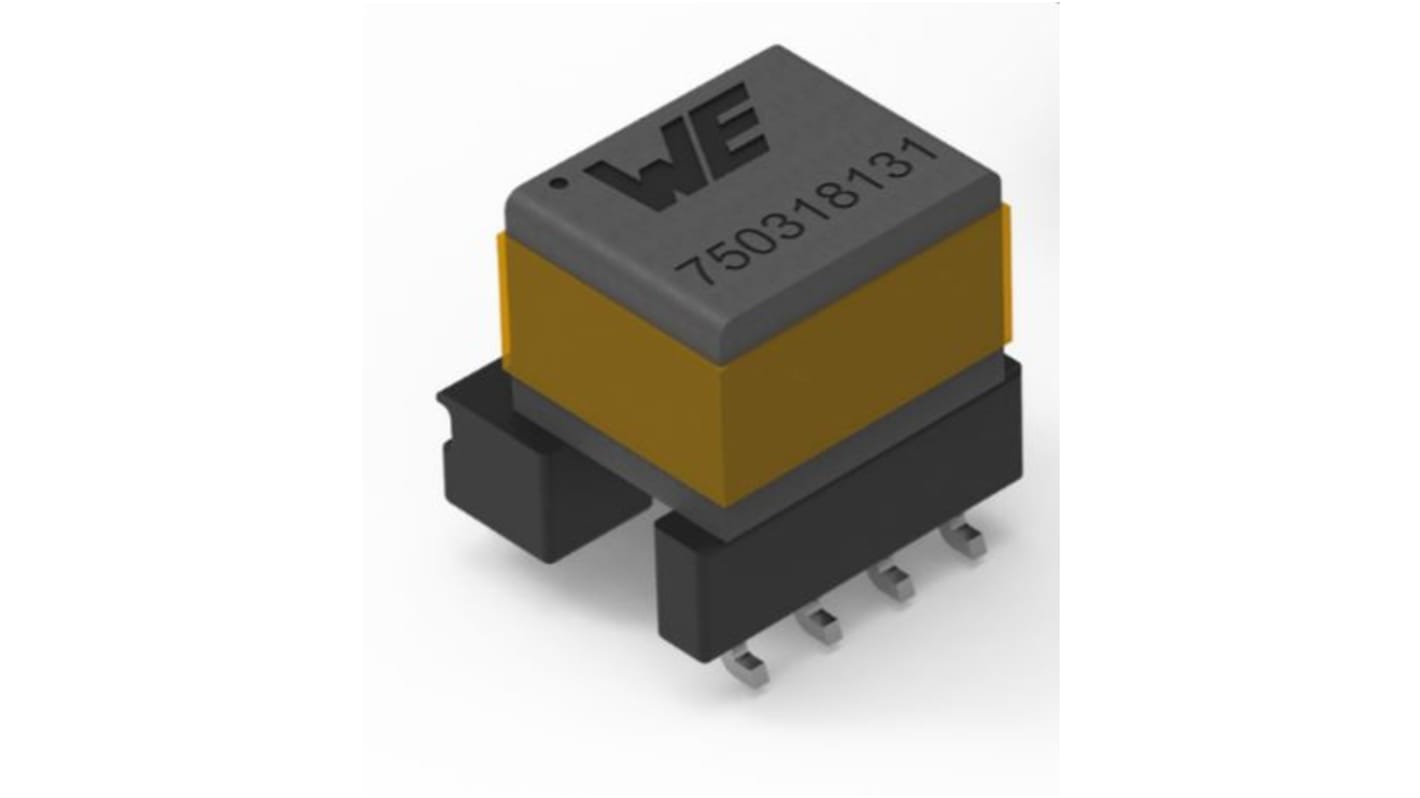

Wurth Elektronik 1 Output Gate Drive Transformer, 9/18 V, 19 V, 18 μH
- RS Stock No.:
- 227-8202
- Distrelec Article No.:
- 302-16-291
- Mfr. Part No.:
- 750317893
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 97,70
(exc. VAT)
Kr. 122,12
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 185 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 97,70 |
| 10 - 49 | Kr. 92,66 |
| 50 - 99 | Kr. 85,57 |
| 100 + | Kr. 77,56 |
*price indicative
- RS Stock No.:
- 227-8202
- Distrelec Article No.:
- 302-16-291
- Mfr. Part No.:
- 750317893
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Secondary Voltage | 19 V | |
| Product Type | Gate Drive Transformer | |
| Primary Voltage | 9/18 V | |
| Number of Outputs | 1 | |
| Mount Type | Surface | |
| Inductance | 18μH | |
| Secondary Current | 0.16A | |
| Number of Pins | 8 | |
| Primary Current | 1.95A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 130°C | |
| Series | WE-AGDT | |
| Width | 10.95mm | |
| Standards/Approvals | REACH, RoHS | |
| Depth | 11.9mm | |
| Length | 11.3mm | |
| Leakage Inductance | 500nH | |
| Turns Ratio | 1:2 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Secondary Voltage 19 V | ||
Product Type Gate Drive Transformer | ||
Primary Voltage 9/18 V | ||
Number of Outputs 1 | ||
Mount Type Surface | ||
Inductance 18μH | ||
Secondary Current 0.16A | ||
Number of Pins 8 | ||
Primary Current 1.95A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 130°C | ||
Series WE-AGDT | ||
Width 10.95mm | ||
Standards/Approvals REACH, RoHS | ||
Depth 11.9mm | ||
Length 11.3mm | ||
Leakage Inductance 500nH | ||
Turns Ratio 1:2 | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik WE-AGDT auxiliary gate drive transformer can be used in Industrial drives AC motor inverters, HEV/EV charging station, battery chargers and solar inverter application. It has 18 μH inductance.
High efficiency and very compact solution
Tiny surface mount EP7 package
