Wurth Elektronik 1 Output Switch Mode Power Supply Transformer 1.2 W Output, 24 V dc, 12 V dc, 4 mH
- RS Stock No.:
- 245-8590P
- Mfr. Part No.:
- 750317331
- Brand:
- Wurth Elektronik
Get a bulk buy discount
Add 50 more to save Kr. 120,00
View bulk pricing optionsSubtotal 10 units (supplied on a continuous strip)*
Kr. 310,00
(exc. VAT)
Kr. 387,50
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 926 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 10 - 49 | Kr. 31,00 | - |
| 50 - 99 | Kr. 28,60 | Kr. 120,00 |
| 100 - 499 | Kr. 26,31 | Kr. 469,00 |
| 500 + | Kr. 23,45 | Kr. 3 775,00 |
*price indicative
- RS Stock No.:
- 245-8590P
- Mfr. Part No.:
- 750317331
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Switch Mode Power Supply Transformer | |
| Secondary Voltage | 12 V dc | |
| Primary Voltage | 24 V dc | |
| Number of Outputs | 1 | |
| Mount Type | Surface | |
| Power | 1.2W | |
| Inductance | 4mH | |
| Secondary Current | 800mA | |
| Number of Pins | 6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Length | 10.2mm | |
| Depth | 4.19mm | |
| Width | 6.73mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Switch Mode Power Supply Transformer | ||
Secondary Voltage 12 V dc | ||
Primary Voltage 24 V dc | ||
Number of Outputs 1 | ||
Mount Type Surface | ||
Power 1.2W | ||
Inductance 4mH | ||
Secondary Current 800mA | ||
Number of Pins 6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Length 10.2mm | ||
Depth 4.19mm | ||
Width 6.73mm | ||
- COO (Country of Origin):
- CN

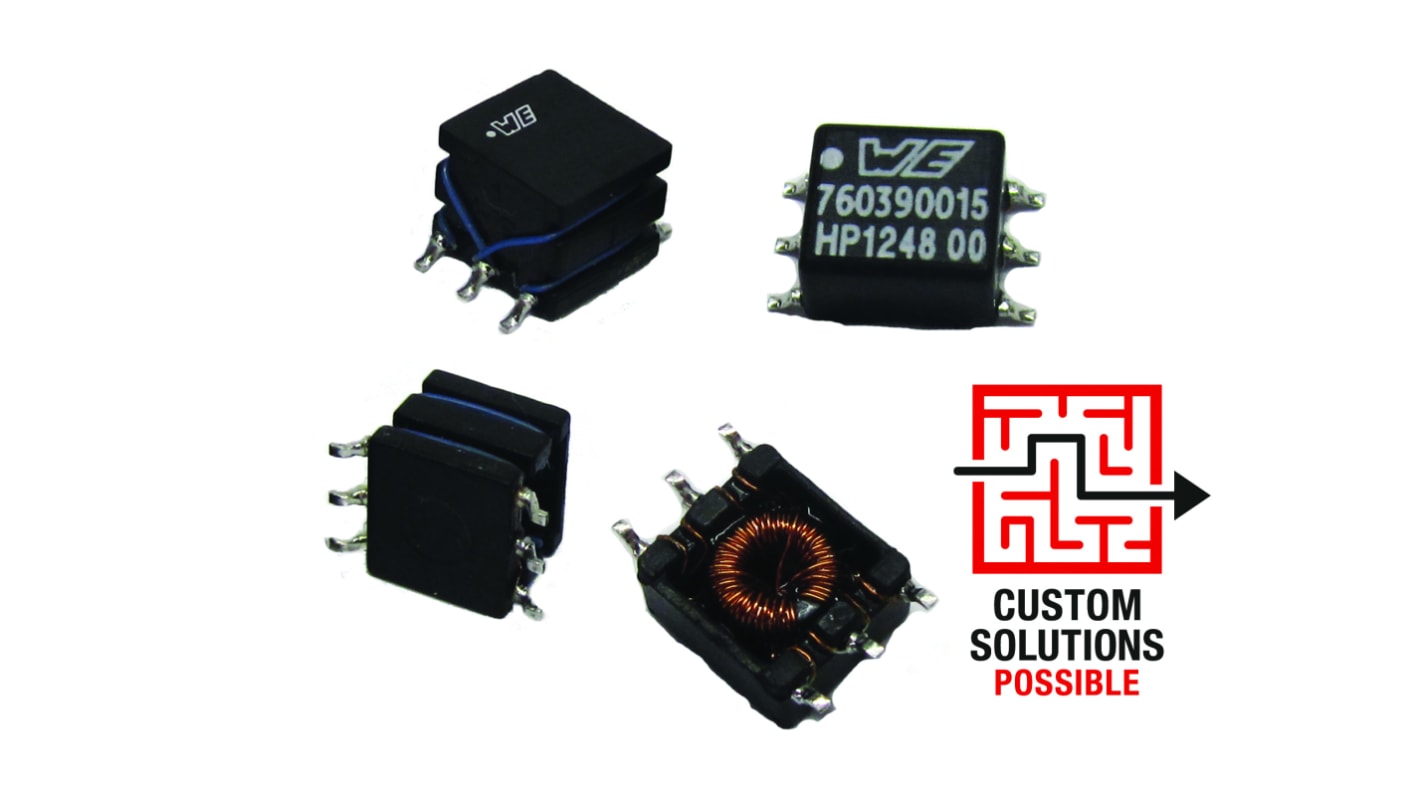

The Wurth Elektroniks push-pull transfomer is used for isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN. Push-pull transformers are also used for industrial automation, process control, medical equipment, PLC analog and digital I/O modules, isolated gate driver power supplies, AC motor drives, uninterruptible power supplies (UPS), solar inverters, polyphase energy meters, protection relays and IEDs.
Small size, surface mount with low profile
Operating temperature of -40°C to 125°C
Functional, supplementary or reinforced insulation
Interwinding capacitance of 25 pF at 100 kHz, 10 mVAC
