    Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

    Allen Bradley Guardmaster
    RS Stock No.:
    251-1956
    Mfr. Part No.:
    440G-S36001
    Brand:
    Allen Bradley Guardmaster
    View this category
    33 In stock for same day dispatch
    Add to Basket
    Units

    Added

    Price Each

    kr 5 501,65

    (exc. VAT)

    kr 6 877,06

    (inc. VAT)

    UnitsPer unit
    1 +kr 5 501,65
    RS Stock No.:
    251-1956
    Mfr. Part No.:
    440G-S36001
    Brand:
    Allen Bradley Guardmaster

    Legislation and Compliance

    RoHS Status: Not Applicable

    COO (Country of Origin):
    DO

    Product Details

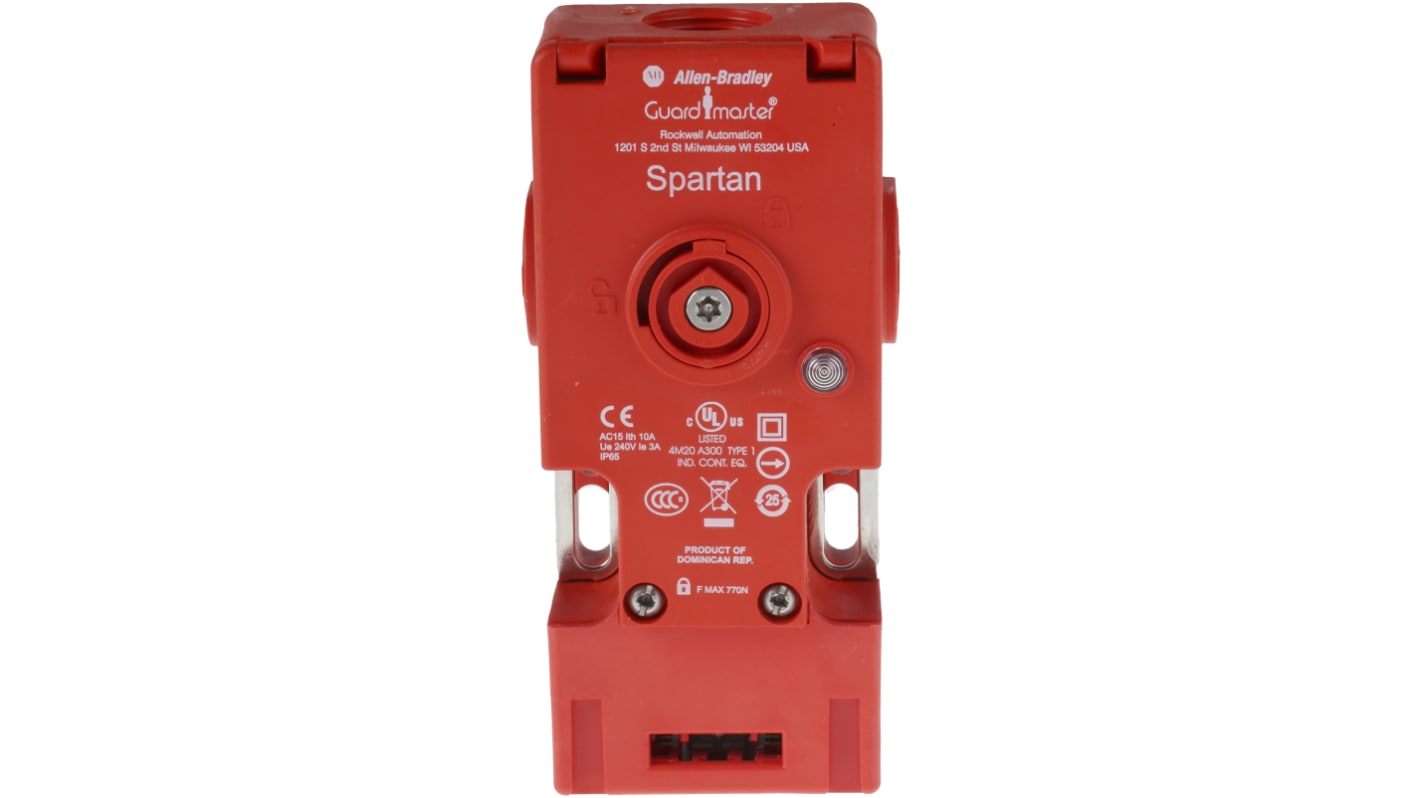

    Allen Bradley Guardmaster Spartan 440G-S36001 Solenoid Interlock Safety Switch


    The Spartan 440G-S36001 guard locking device is a positive mode and tongue operated switch that firmly locks safety guards while machinery is in motion and isolates power when the barrier is released. This helps to prevent unsafe access to dangerous areas for personnel and reduces risk of damage to equipment through premature interference. The mechanism can only be released when a signal is applied to the internal solenoid, which allows the tongue to be removed from the switch. The Spartan switch is a cost-effective solution which is perfectly suited for use with machinery that does not come to an immediate stop.

    This Power-to-Release safety switch has a supply voltage rating of 24VAC/DC and 2NC Safety Contacts and 1NO Auxiliary Contact. It provides enhanced stability with a high holding force of 770N (173 lbs). Conduit entry is M20. The housing material is comprised of UL approved resilient glass-filled polyester, and this switch has an operating temperature of -20°C to 60°C. It has a thermal current of 10A.

    Features and Benefits:


    • Includes a Standard type actuator made of stainless steel
    • Environmentally sealed to IP67 rating, which makes it dust-tight and durable against some immersion in water
    • Fast, easy troubleshooting with lid mounted status indication, LED provides visual indication of switch status
    • Rotatable head in 4 possible actuator entry positions
    • Ideal for use with hinge, sliding, and lift-off doors

    Certifications


    IP65 rated
    EN954-1
    ISO13849-1
    IEC/EN60204-1
    NFPA79
    EN1088
    ISO14119
    IEC/EN60947-5-1
    ANSI B11.19
    AS4024
    CE certified
    cULus approved
    CSA certified
    TUV certified

    What are Solenoid Interlock Switches?


    A solenoid interlock switch is a type of safety switch with an internal solenoid; a wire coil which converts electrical energy to mechanical. This type of mechanism limits access to dangerous areas where machinery may be functioning by ensuring that that barriers remain securely shut. The safety guard can only be opened through either energising (Power to Release) or de-energising (Power to Lock) the solenoid with an external signal. They are often used in industrial environments, for example with high inertia rotating machines.


    Specifications

    AttributeValue
    Power to Lock / UnlockPower to Unlock
    Supply Voltage24V ac/dc
    Series440G-S
    Actuator IncludedYes
    RangeSpartan
    Actuator TypeStandard
    Safety Contacts2NC
    Conduit EntryM20
    Auxiliary Contacts1NO
    Housing MaterialPlastic
    IP RatingIP67
    Depth120mm
    Width35mm
    Length58mm
