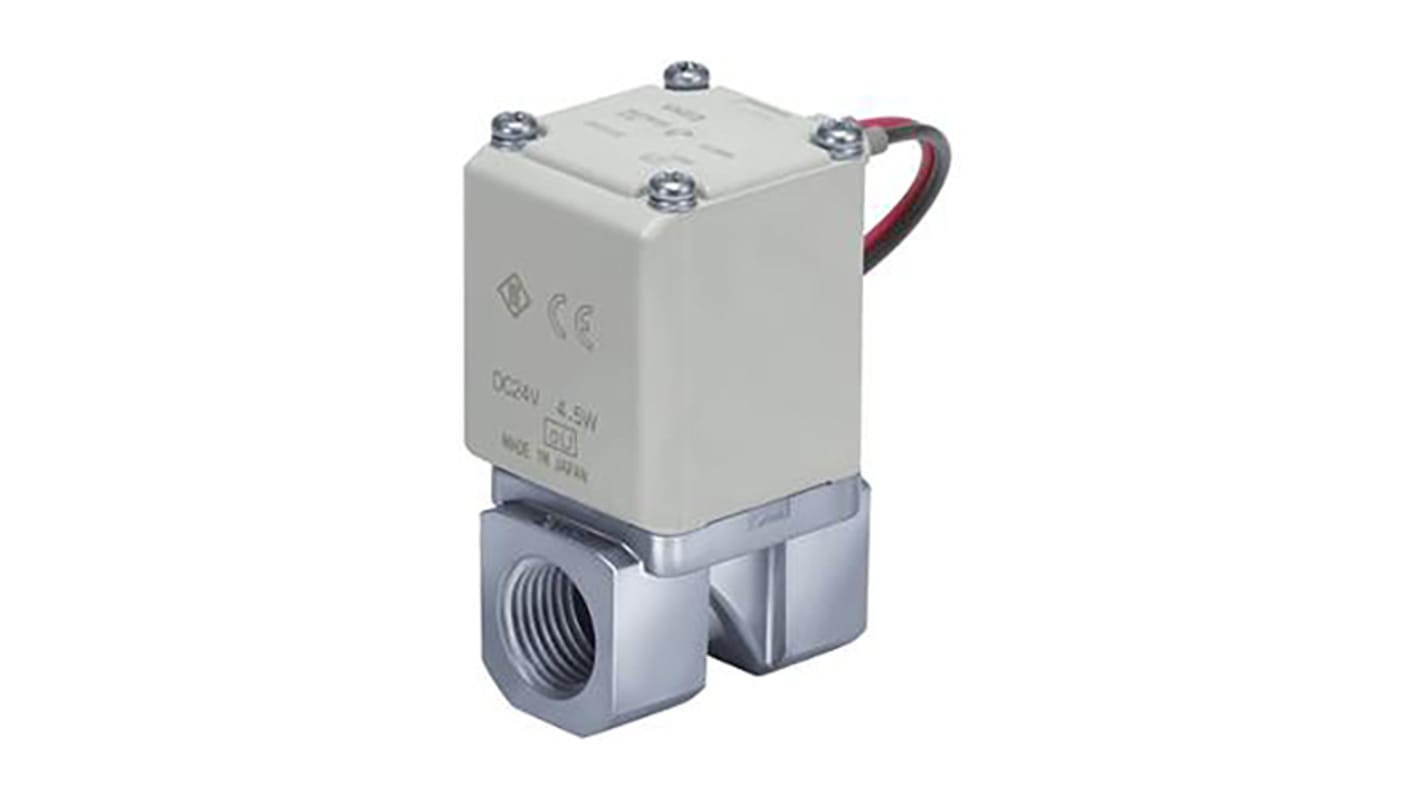

VX21-22-23 Two Port Direct Operating Solenoid Valve

The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies.

Benefits over conventional SMC solenoid valve:

Large flow rate (20% more for Size 1* model)
More compact body (Size 1* is 10% smaller)
Light weight (30% lighter: aluminium body, Size 1* model)
Reduced power consumption when compared with SMC conventional model

Built-in Full Wave Rectifier (for AC models)

The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER.

The VX solenoid valve is suitable for use within environments from -10 to +60°C

Note

*Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

Select all	Attribute	Value
	Brand	SMC
	Supply Voltage	230 V ac
	Number of Ports	2
	Connection Size	1/4in
	Connection	1/4 in G Female
	Operation	Direct
	Default Valve Position	NC
	Suitable Applications	Oil
	Type	2/2
	Orifice Diameter	5mm
	Series	VX23
	Body Material	Brass
	Maximum Working Pressure	10 bar
	Operating Temperature Range	-20 → +60 °C
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+60°C
	Thread Standard or Connection Type	G
	Connection Gender	Female

	Select all
	Brand SMC
	Supply Voltage 230 V ac
	Number of Ports 2
	Connection Size 1/4in
	Connection 1/4 in G Female
	Operation Direct
	Default Valve Position NC
	Suitable Applications Oil
	Type 2/2
	Orifice Diameter 5mm
	Series VX23
	Body Material Brass
	Maximum Working Pressure 10 bar
	Operating Temperature Range -20 → +60 °C
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +60°C
	Thread Standard or Connection Type G
	Connection Gender Female

SMC Solenoid Valve VX233ALAXB, 2 port(s) , NC, 230 V ac, 1/4in
