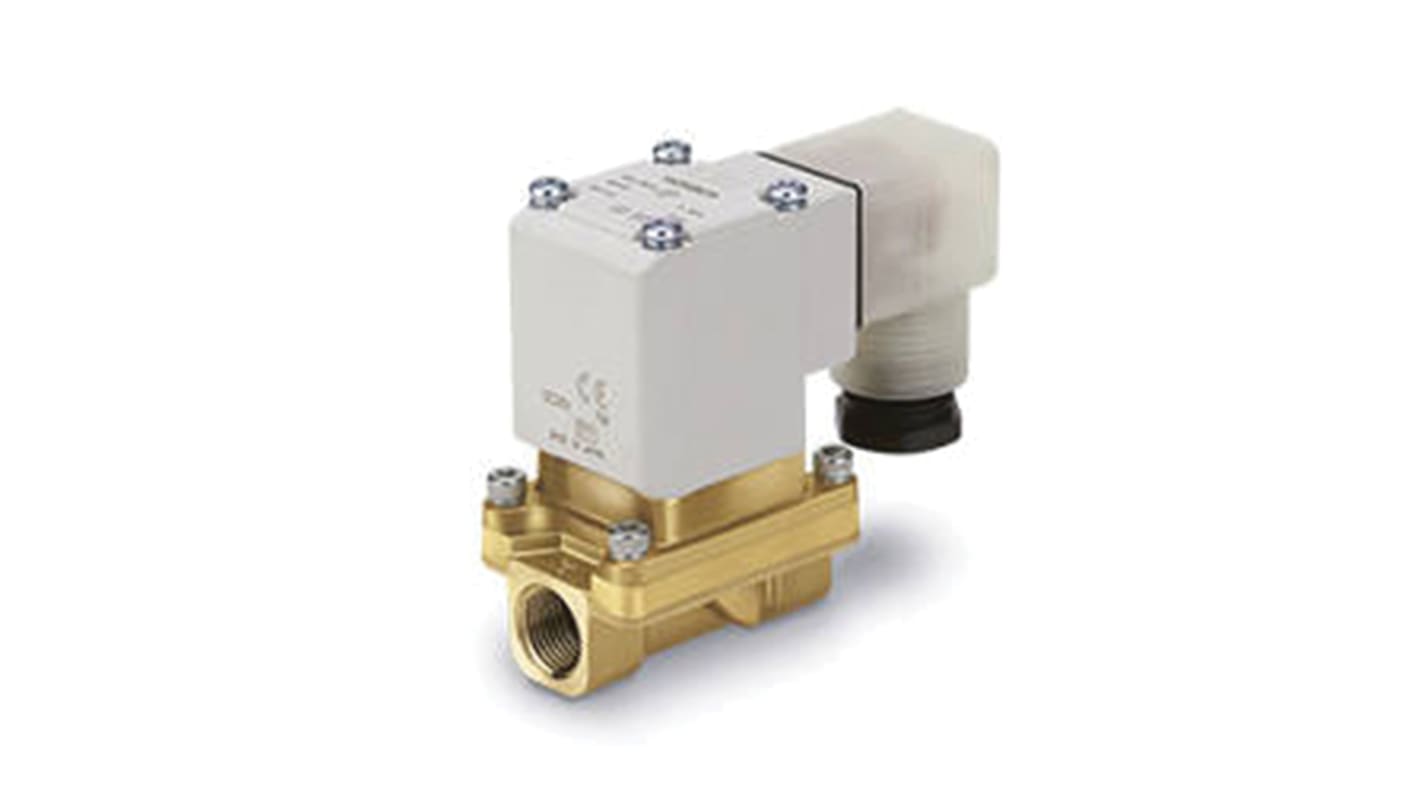

SMC Solenoid Valve VXZ232AGA, 2 port(s) , NC, 24 V dc, 1/4in
- RS Stock No.:
- 893-8414
- Mfr. Part No.:
- VXZ232AGA
- Brand:
- SMC
4 In stock for same day dispatch
Price Each
Kr. 782,21
(exc. VAT)
Kr. 977,76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 782,21 |
| 5 + | Kr. 758,34 |
- RS Stock No.:
- 893-8414
- Mfr. Part No.:
- VXZ232AGA
- Brand:
- SMC
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
VXZ2-A Two Port Pilot Operated Solenoid Valve
Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings
Improved off response time
Low Noise, Reduce impact noise when operating
More compact design, 4% smaller than existing version
Brass or stainless steel body
One touch fitting variants have a resin body
Improved armature durability
Low Noise, Reduce impact noise when operating
More compact design, 4% smaller than existing version
Brass or stainless steel body
One touch fitting variants have a resin body
Improved armature durability
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Connection Size | 1/4in |
| Connection | 1/4 in G |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Water |
| Type | 2/2 |
| Orifice Diameter | 10mm |
| Series | VXZ |
| Body Material | Brass |
| Maximum Working Pressure | 6 bar |
| Operating Temperature Range | -20 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Connection Gender | Female |
| Thread Standard or Connection Type | G |
| Minimum Operating Temperature | -20°C |
