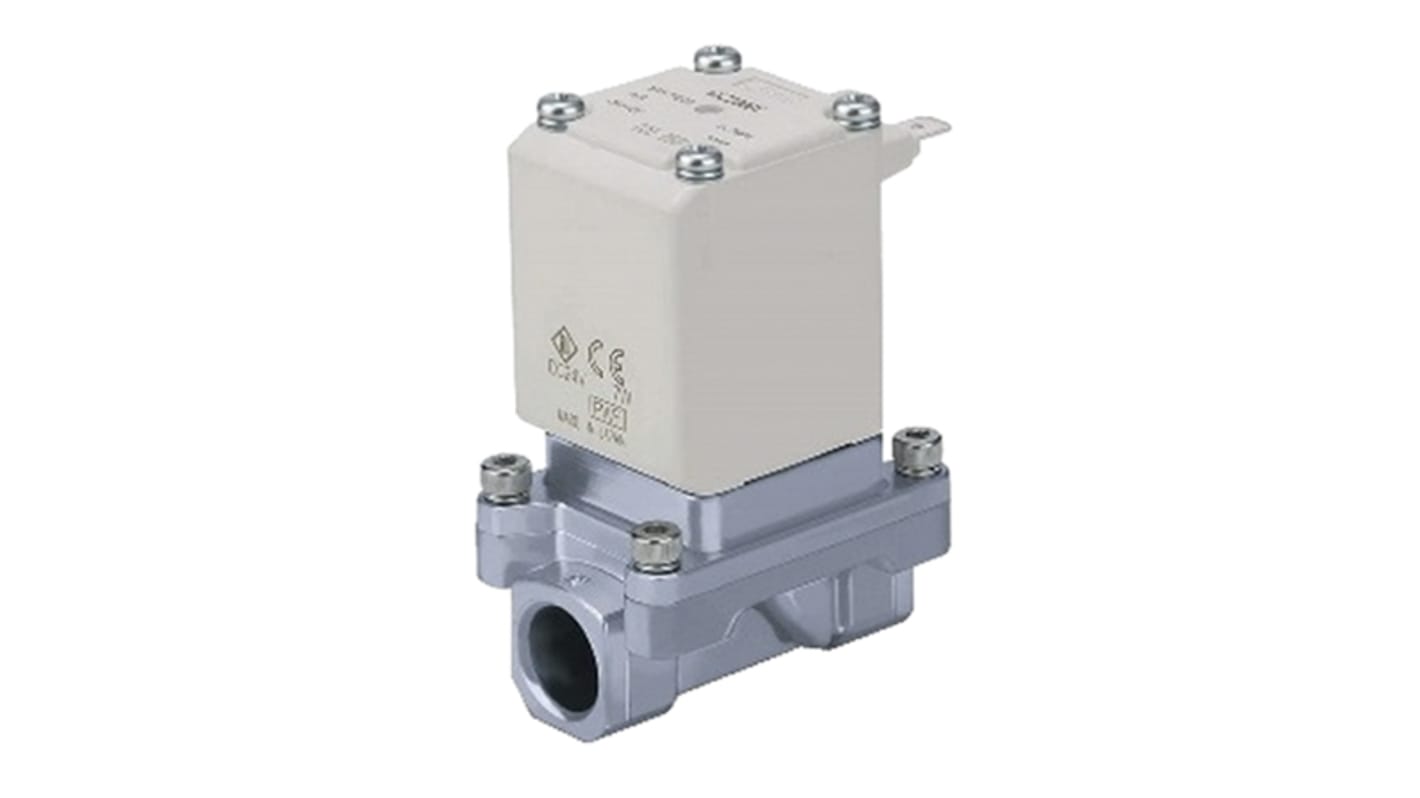

VXZ2-A Two Port Pilot Operated Solenoid Valve

Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings

Improved off response time
Low Noise, Reduce impact noise when operating
More compact design, 4% smaller than existing version
Brass or stainless steel body
One touch fitting variants have a resin body
Improved armature durability

Select all	Attribute	Value
	Brand	SMC
	Supply Voltage	230 V ac
	Number of Ports	2
	Connection Size	1/4in
	Connection	1/4 in G
	Operation	Pilot
	Default Valve Position	NC
	Suitable Applications	Water
	Type	2/2
	Orifice Diameter	10mm
	Body Material	Stainless Steel
	Series	VXZ
	Maximum Working Pressure	7 bar
	Operating Temperature Range	-20 → +60 °C
	Minimum Operating Temperature	-20°C
	Thread Standard or Connection Type	G
	Maximum Operating Temperature	+60°C
	Connection Gender	Female

	Select all
	Brand SMC
	Supply Voltage 230 V ac
	Number of Ports 2
	Connection Size 1/4in
	Connection 1/4 in G
	Operation Pilot
	Default Valve Position NC
	Suitable Applications Water
	Type 2/2
	Orifice Diameter 10mm
	Body Material Stainless Steel
	Series VXZ
	Maximum Working Pressure 7 bar
	Operating Temperature Range -20 → +60 °C
	Minimum Operating Temperature -20°C
	Thread Standard or Connection Type G
	Maximum Operating Temperature +60°C
	Connection Gender Female

SMC Solenoid Valve VXZ232CLK, 2 port(s) , NC, 230 V ac, 1/4in
