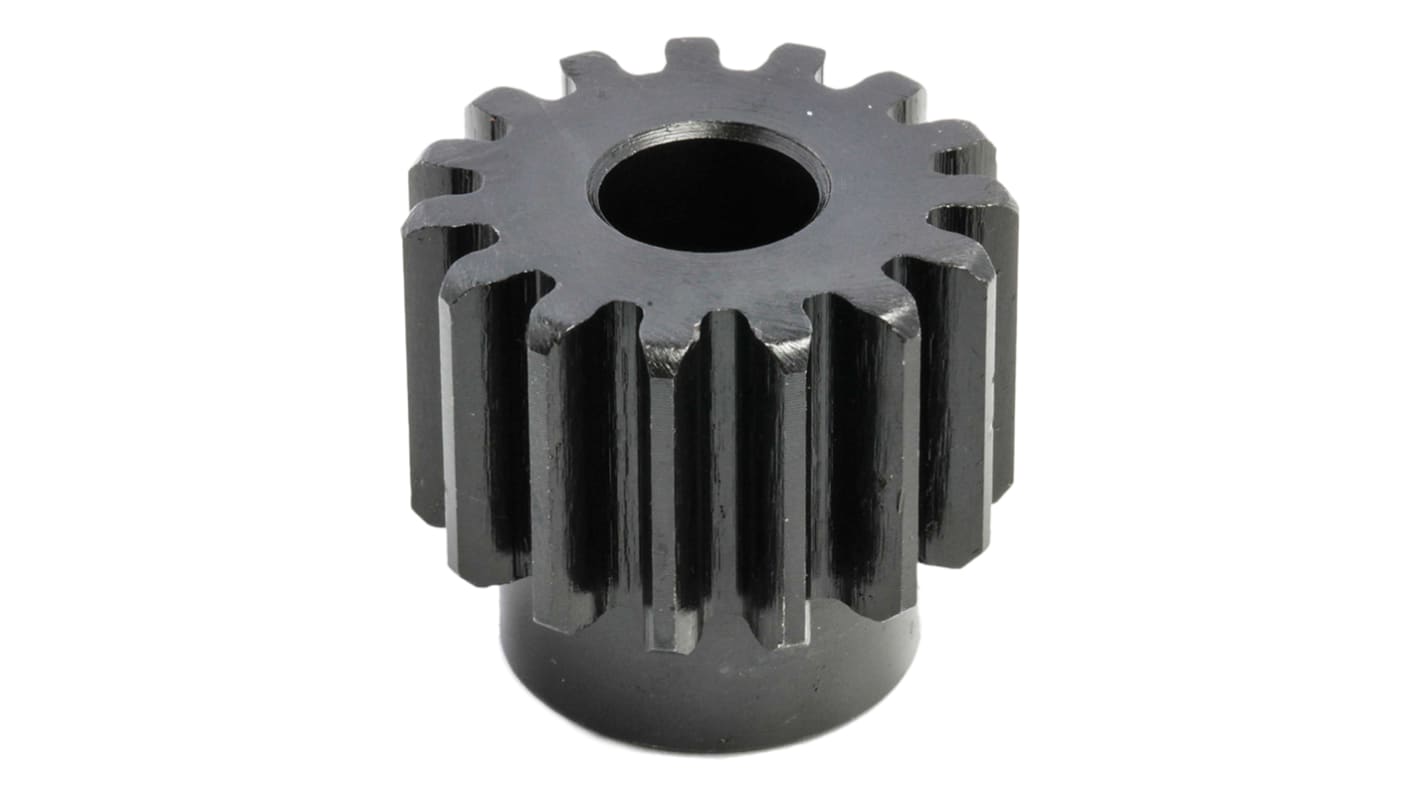

Name: RS PRO Steel 15 Teeth Spur Gear, 2 Module, 12mm Bore Diam, 30mm Pitch Diam, 24mm Hub Diam
Brand: RS PRO
SKU: 521-6553
Price: 101.96 NOK
Availability: InStock

RS PRO Steel Spur Gears

Use these steel spur gears from RS PRO to get your industrial equipment moving. Our extensive range of spur gears is selected for their high-quality, ease of use and performance while ensuring the correct power, torque multiplication, and speed reduction. To obtain your ideal solution, browse the range using the improved filters to locate the module to suit your application.

Also known as

Straight gears

Straight-cut gears

Spur wheels

Spur gearing

Features and Benefits

Steel EN8 (080M40/080M46) or equivalent

Range of gear ratios

Ideally used for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems.

20° pressure angle

Metric

Applications

Machine Tools

Transmissions

Speed Reduction

Note

SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width.

Standards

DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent

Units	Per unit
1 - 4	Kr. 81,57
5 - 9	Kr. 79,85
10 +	Kr. 78,36

Select all	Attribute	Value
	Brand	RS PRO
	Module	2
	Number of Teeth	15
	Material	Steel
	Bore Diameter	12mm
	Pitch Diameter	30mm
	Hub Diameter	24mm
	Face Width	20mm

	Select all
	Brand RS PRO
	Module 2
	Number of Teeth 15
	Material Steel
	Bore Diameter 12mm
	Pitch Diameter 30mm
	Hub Diameter 24mm
	Face Width 20mm

RS PRO Steel 15 Teeth Spur Gear, 2 Module, 12mm Bore Diam, 30mm Pitch Diam, 24mm Hub Diam
