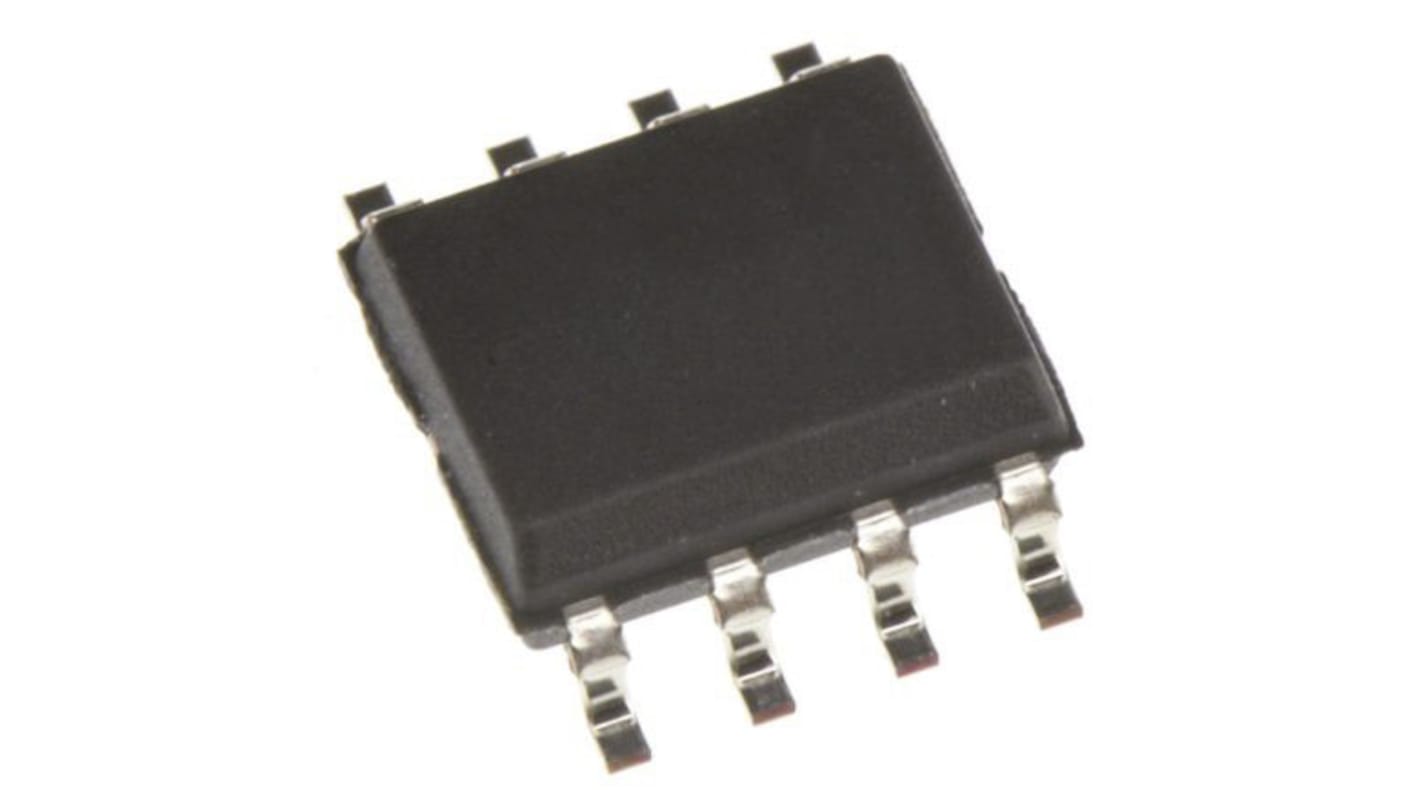

Maxim Integrated DS1312S-2+ SRAM Controller Unit, 6 V, 10 ns, 8-Pin SO

View all SRAM Controller Units
Bulk discount available

Subtotal 10 units (supplied in a tube)*

Kr.1 398 00

(exc. VAT)

Kr.1 747 50

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 8 unit(s), ready to ship
Units
Per unit
10 - 24Kr. 139,80
25 - 99Kr. 133,96
100 +Kr. 125,04

*price indicative

Packaging Options:
RS Stock No.:
190-6691P
Mfr. Part No.:
DS1312S-2+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Maximum Backup Cell Voltage

6V

Product Type

SRAM Controller Unit

Write Protect Control

Yes

Maximum Propagation Delay Time

10ns

Mount Type

Surface

Package Type

SO

Pin Count

8

Minimum Operating Temperature

-40°C

Voltage Supply Monitoring Tolerance ±

5%

Battery Backup Switching

Yes

Maximum Operating Temperature

85°C

Width

4 mm

Height

1.5mm

Length

5mm

Standards/Approvals

No

Minimum Supply Voltage

4.5V

Maximum Supply Voltage

5.5V

Automotive Standard

No

Supply Current

200mA

Converts CMOS SRAM into nonvolatile memory

Unconditionally write-protects SRAM when VCC is out of tolerance

Automatically switches to battery backup supply when VCC power failure occurs

Monitors voltage of a lithium cell and provides advanced warning of impending battery failure

Signals low-battery condition on active low Battery Warning output signal

Optional 5% or 10% power-fail detection

Space-saving 8-pin DIP and SOIC packages

Optional 16-pin SOIC and 20-pin TSSOP versions reset processor when power failure occurs and hold processor in reset during system power-up

Industrial temperature range of -40°C to +85°C
