Allen Bradley 1492 Series Screw Terminal, 3-Way, 12AWG, 22 AWG Wire, 10A Screw Cage

Subtotal (1 pack of 50 units)*

Kr. 6 834,50

(exc. VAT)

Kr. 8 543,00

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 12 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +Kr. 136,69Kr. 6 834,50

*price indicative

RS Stock No.:
220-4562
Mfr. Part No.:
1492-JG4Q
Brand:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Number of Ways

3

Product Type

Screw Terminal

Current

10A

Wire Size

12AWG, 22AWG

Mount Type

DIN Rail

Fused

No

Material

Plastic

Voltage

300V

Colour

Yellow, Green

Wire Protection

No

Cable CSA

4mm²

Series

1492

Termination Type

Screw Cage

Minimum Operating Temperature

-50°C

Gender

Female

Enclosed

No

Maximum Operating Temperature

120°C

Standards/Approvals

No

Hazardous Area Certification

IECEx

COO (Country of Origin):
RO

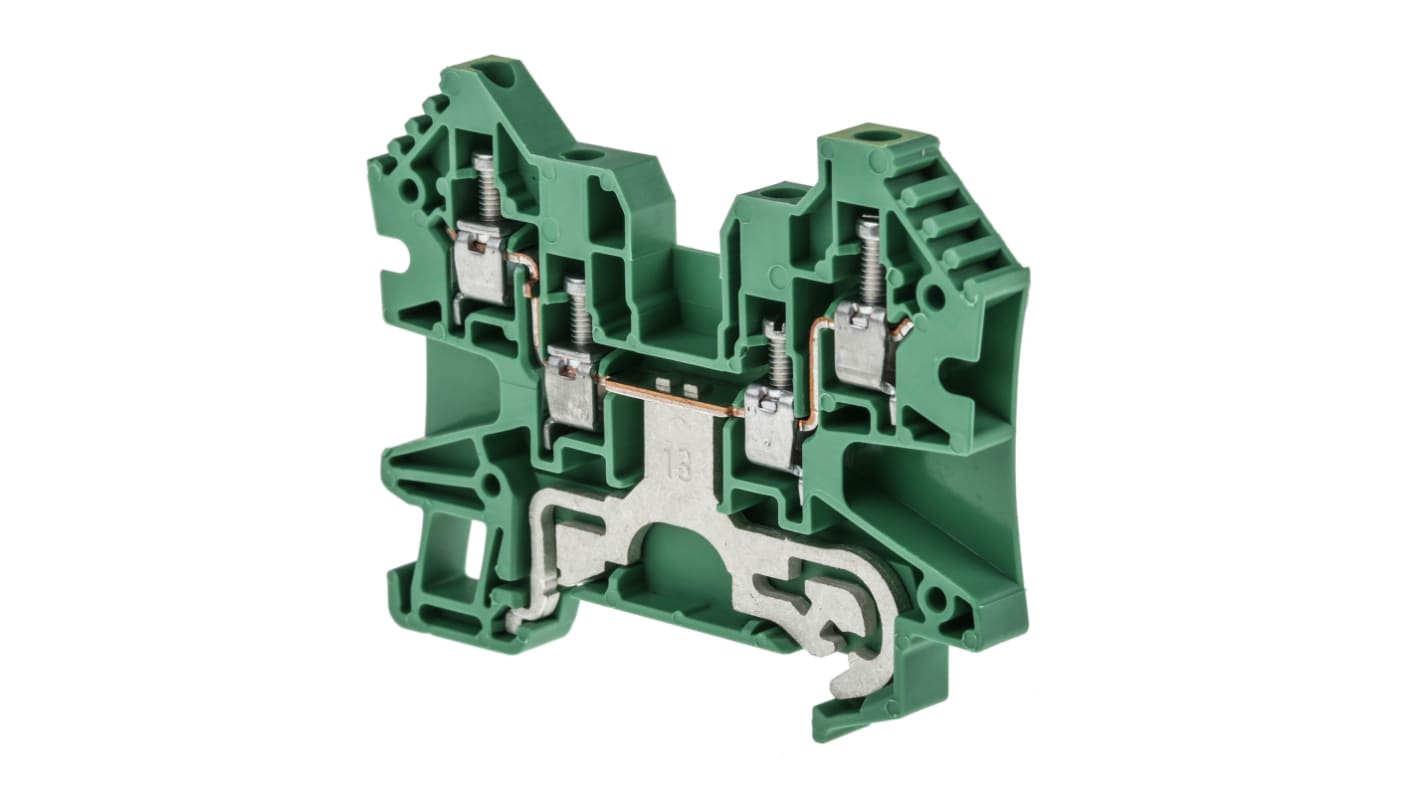

Rockwell Automation 1492-JG4Q IEC Screw-Type Ground Terminal Block


Ensure optimal safety, durability and ease-of-installation with the 1492-J Screw Type Terminal Block by Rockwell Automation, which meets recognised international IEC standards.

This terminal block features a sturdy self-locking screw type clamp design with steel clamps and screws. It is DIN rail mountable for simplified installation into your control cabinet. Its compact size allows convenient and efficient organisation within your wiring system and it is easily identifiable for fast troubleshooting, saving you valuable time. This grounding bus also has IP2X finger-safe housing to prevent risk of electric shock.

The 1492-JG4Q is a One-Circuit Feed-Through Ground Block with 2 Connection points on each side, in green with a yellow stripe.

Maximum wire size and rating:

UL: 30-10 AWG

CSA: 30-10 AWG

IEC: 4mm²

Features and Benefits:


• Resilient tin-plated terminal and zinc chromate steel screws

• Four-sided funnel wire guides

• Backed-out screws

• Self-locking screw-type clamp design

• Comes with all necessary accessories

• Includes a complete catalogue with all necessary information required

• Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation

• The 1492 family adheres to recognised international IEC, UL, CSA and ATEX standards

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?


A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
