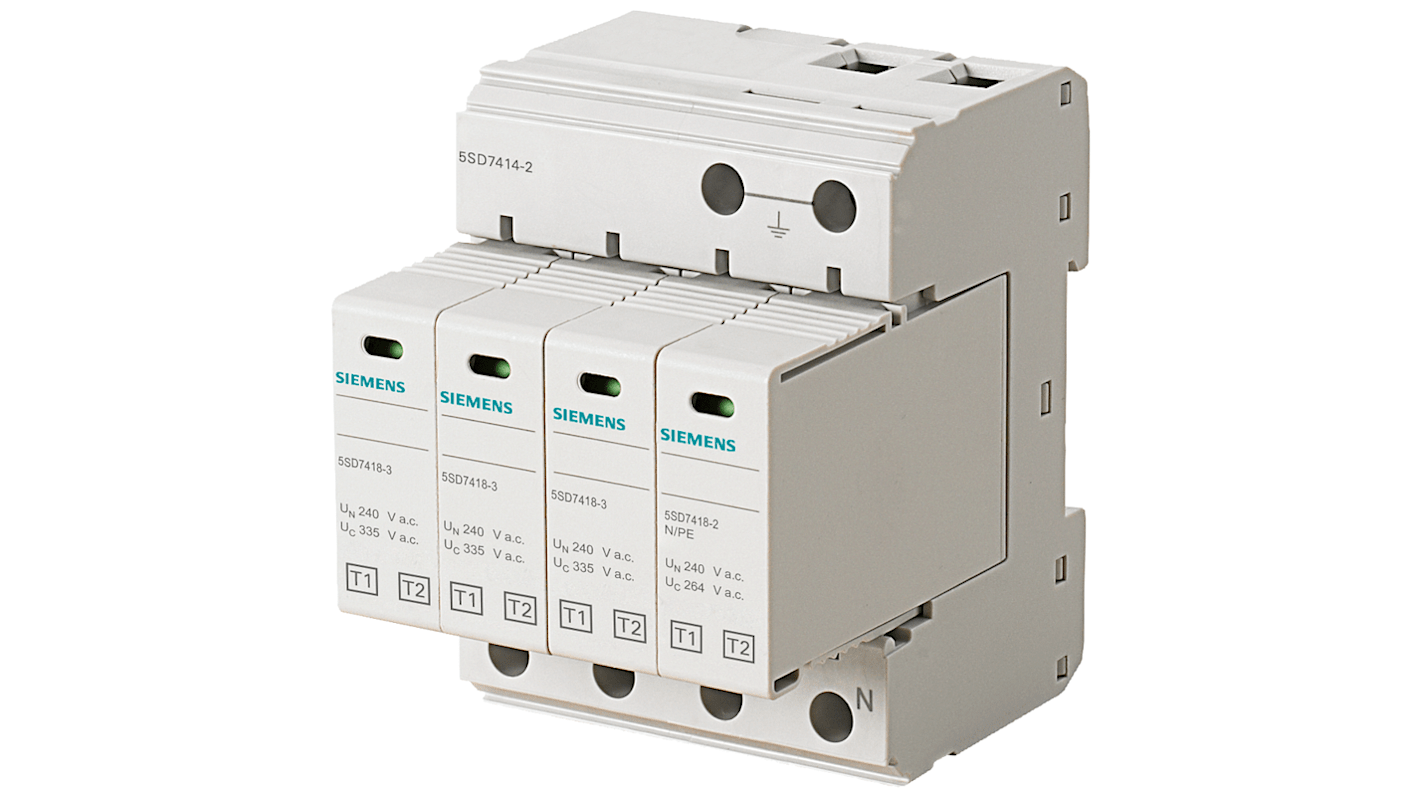

Siemens 3 Phase Surge Protector, 50kA, DIN Rail Mount
- RS Stock No.:
- 211-0182
- Mfr. Part No.:
- 5SD7414-2
- Brand:
- Siemens
Available to back order for despatch 24.05.2024, delivery within 2 working days
Not available for next day delivery
Added
Price Each
Kr. 4 181,25
(exc. VAT)
Kr. 5 226,56
(inc. VAT)
| Units | Per unit |
| 1 + | Kr. 4 181,25 |
- RS Stock No.:
- 211-0182
- Mfr. Part No.:
- 5SD7414-2
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Siemens 5SD series is a Lightning conductor T1/T2, with pluggable protective modules. 3+1 circuit for TN-S and TT systems with remote display.
It has Protection class rating of IP20
Type of distributive system is TT,TN-S
Type of distributive system is TT,TN-S
Specifications
Attribute | Value |
|---|---|
| Device Type | Surge Arrestor |
| Maximum Surge Current | 50kA |
| Series | 5SD |
| Electrical Phase | 3 |
| Mounting Style | DIN Rail |
| Impulse Discharge Current | 50kA |
| Length | 89.9mm |
| Width | 71.2mm |
| Depth | 77.5mm |
| Dimensions | 89.9 x 71.2 x 77.5mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80 °C |
